Pinpoint Test A: No Communication With The Stability Assist Module

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.

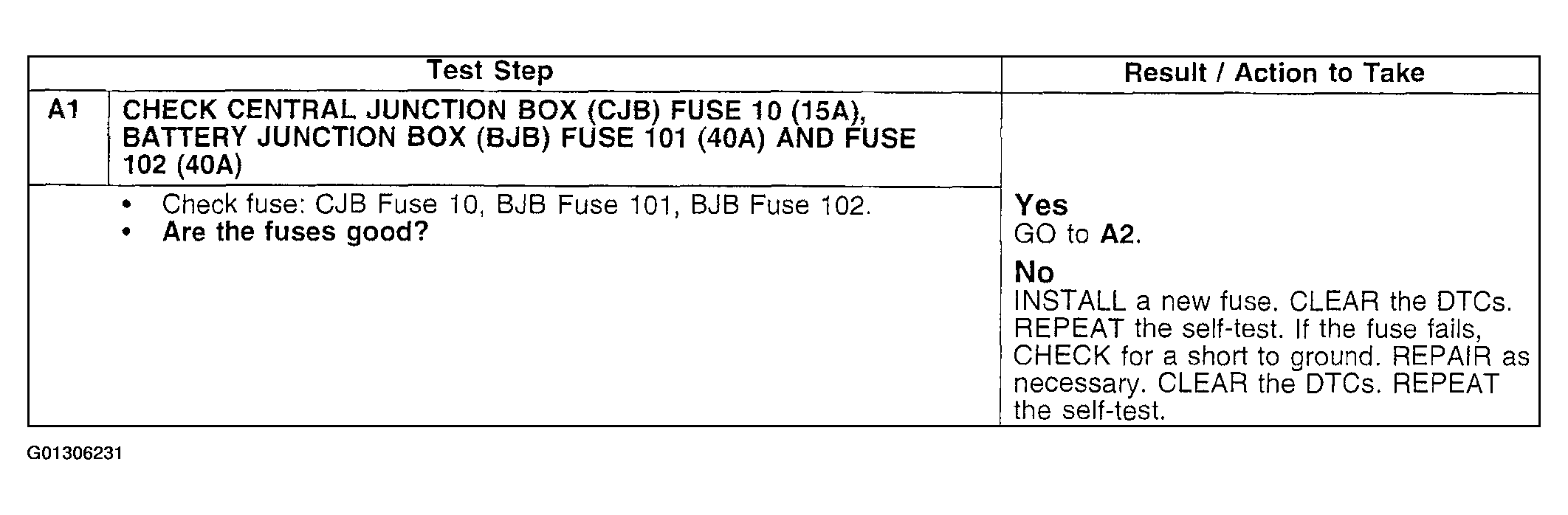

Fig 1: Pinpoint Test A: No Communication With Stability Assist Module (Steps A1)

Courtesy of FORD MOTOR CO.

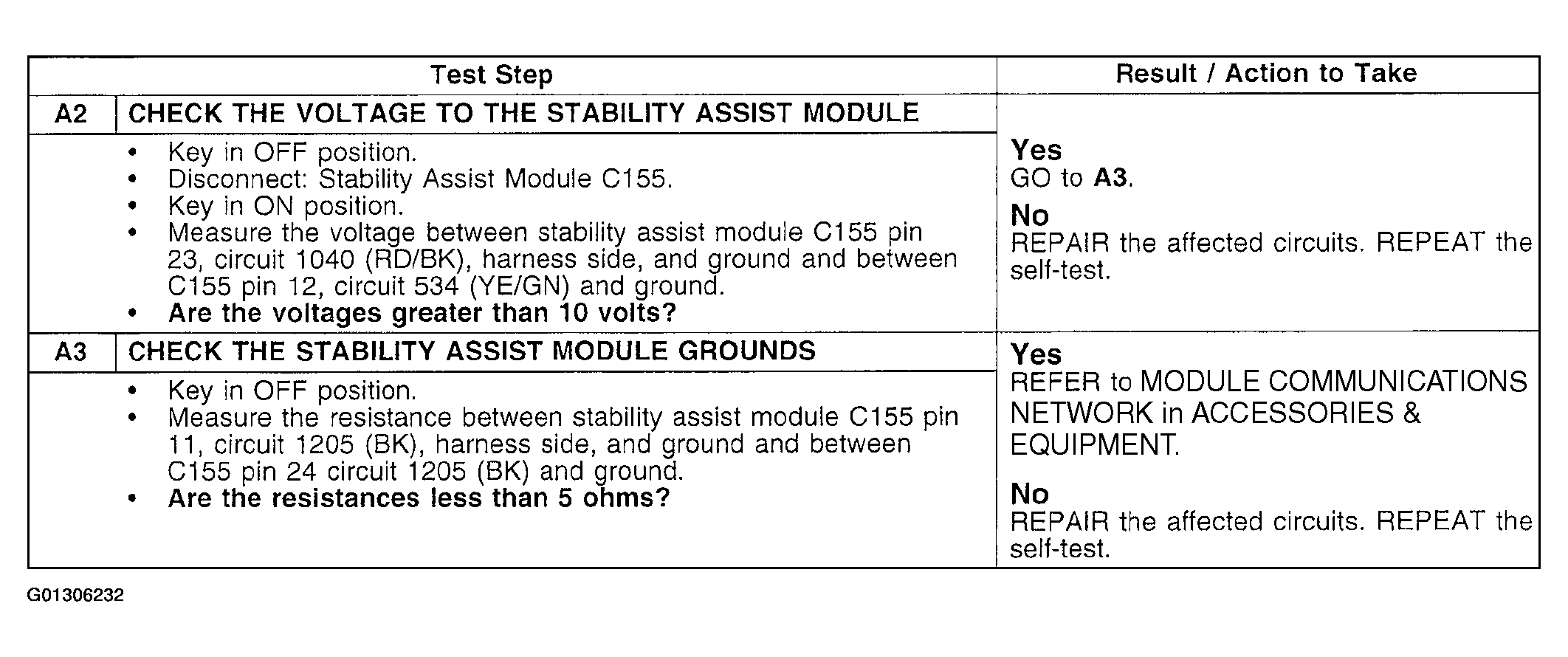

Fig 2: Pinpoint Test A: No Communication With Stability Assist Module (Steps A2-A3)

Courtesy of FORD MOTOR CO.

CAUTION: The Flex Probe Kit must be used for all test connections. Use of standard multimeter probes may damage wiring terminals.
