Band/Clutch Application Chart A

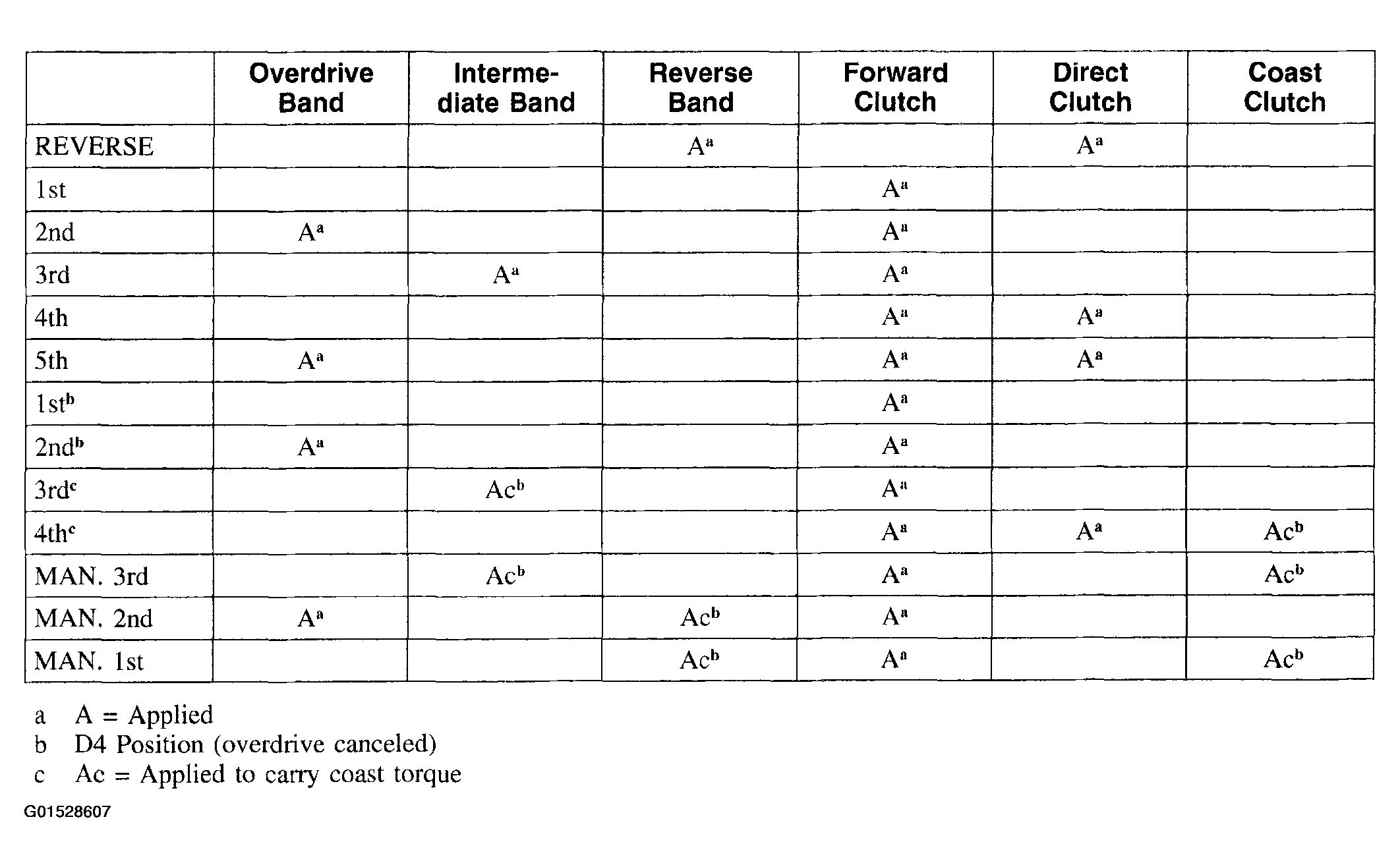

Fig 1: Band/Clutch Application Chart A

G01528607

Courtesy of FORD MOTOR CO.
