Band Adjustment And Torque Chart

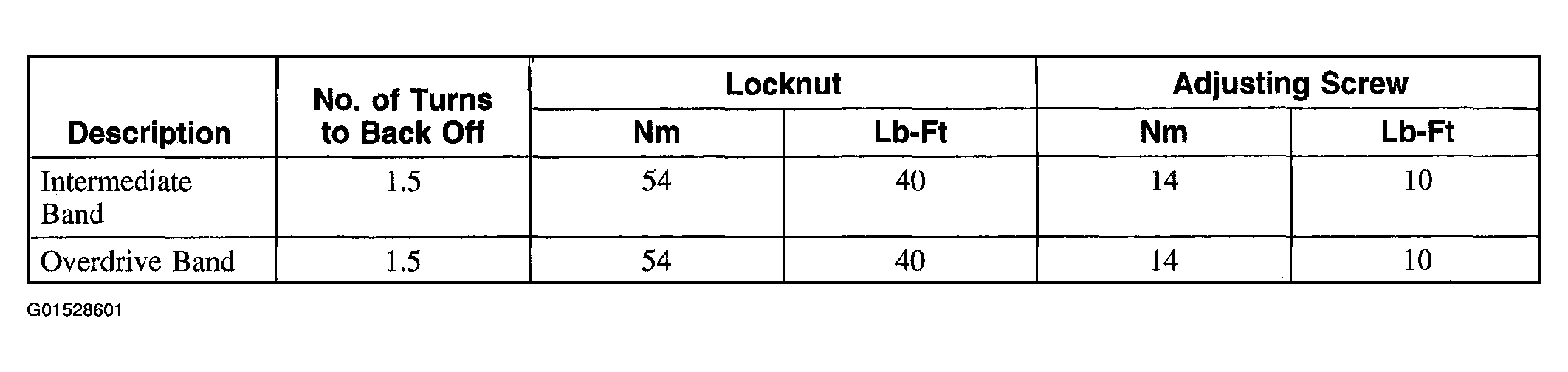

Fig 1: Band Adjustment And Torque Chart

G01528601

Courtesy of FORD MOTOR CO.
