Item 28: Shift Cable Retainer Installation Note
Item 28: Shift Cable Retainer Installation Note
Connect the shift cable to the transmission support.

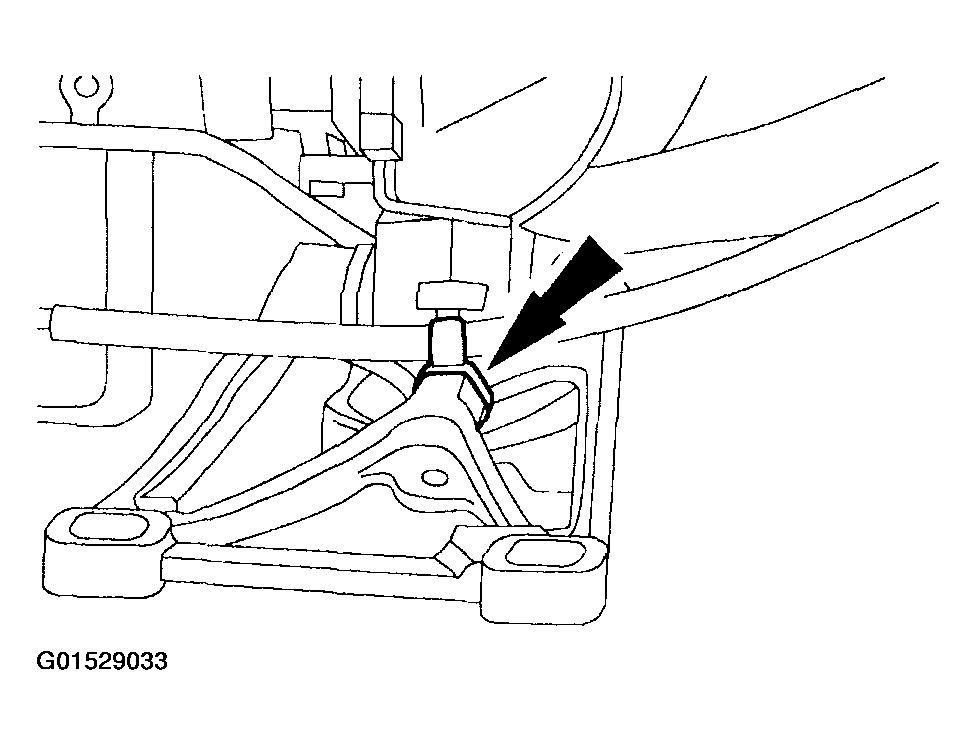

Fig 1: Connecting Shift Cable To Transmission Support
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
