Item 38: Front Pump Disassembly Note

  1. Install the special tool.

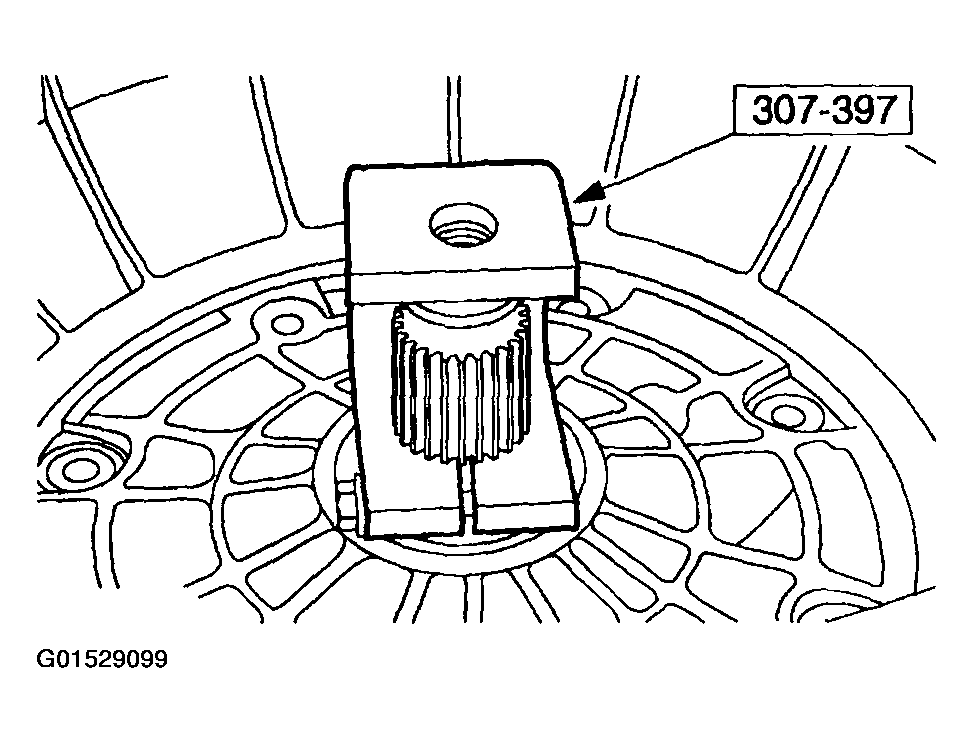

    Fig 1: Installing Special Tool (307-397) On Front Pump
    G01529099Courtesy of FORD MOTOR CO.
  2. Using the special tools, remove the pump.

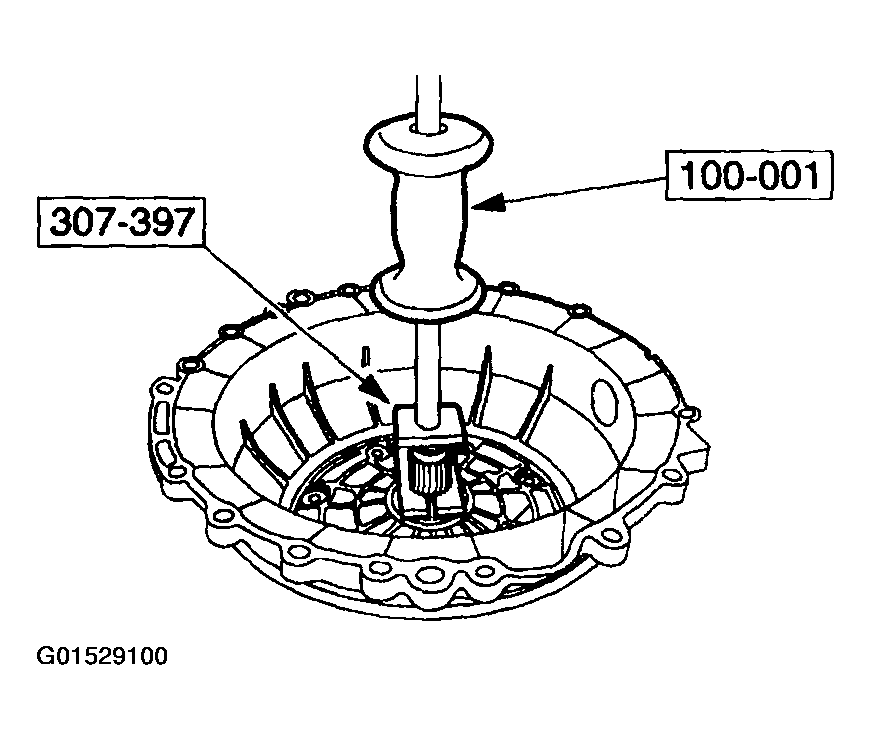

    Fig 2: Removing Pump
    G01529100Courtesy of FORD MOTOR CO.
