Item 9: Fluid Pump Screws Assembly Note

  1. Loosely install the fluid pump housing screws in their correct location and remove the special tools. Install the two remaining screws.

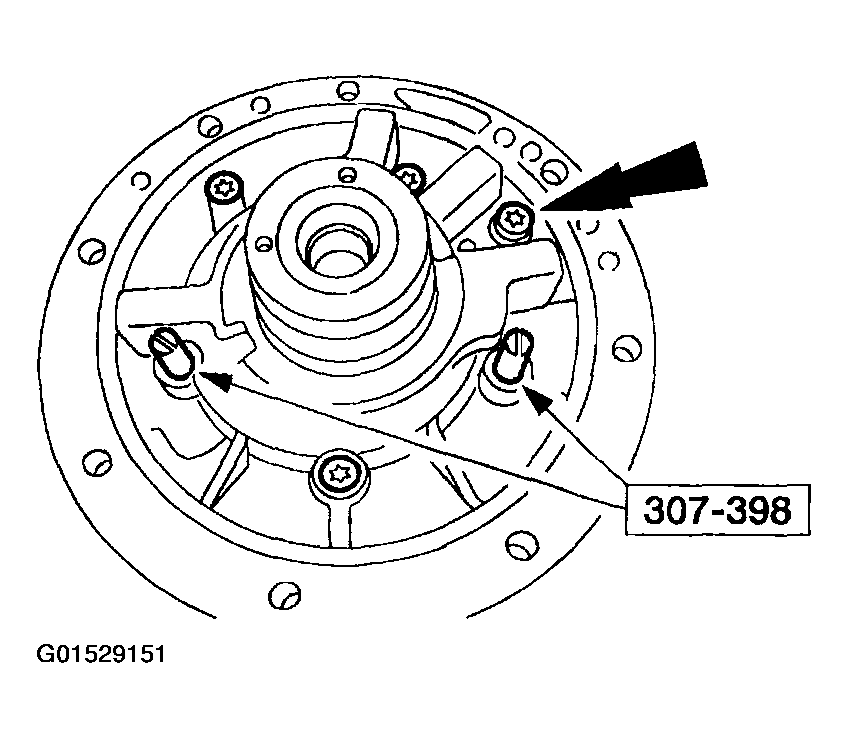

    Fig 1: Identifying Fluid Pump Housing Screws
    G01529151Courtesy of FORD MOTOR CO.
  2. Tighten all the fluid pump screws in a star pattern.

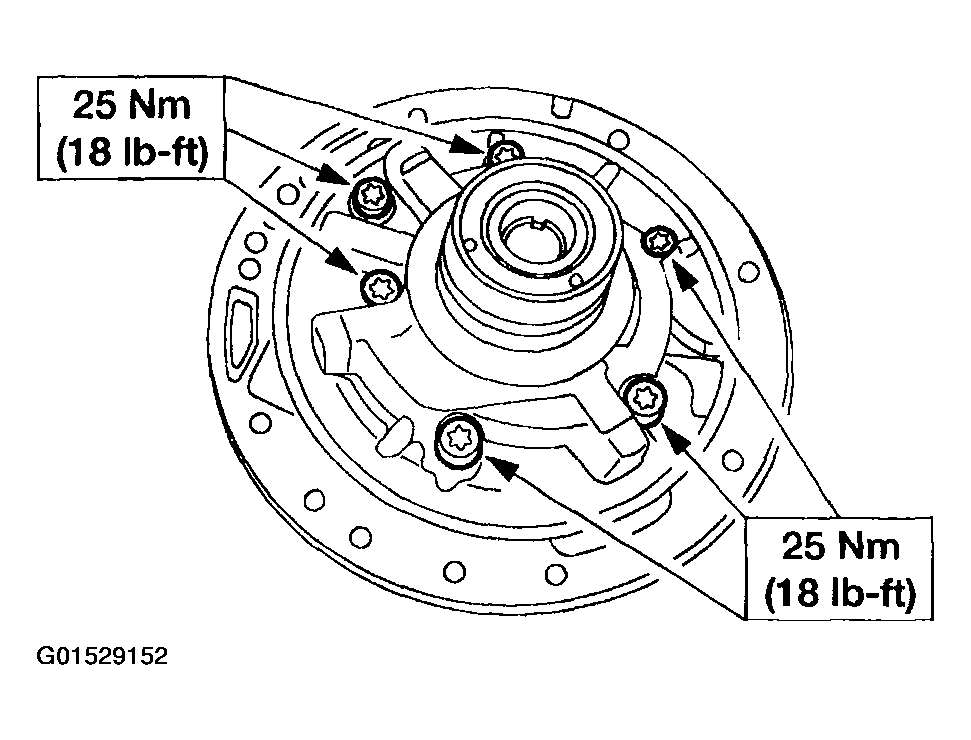

    Fig 2: Fluid Pump Screws Torque Specifications
    G01529152Courtesy of FORD MOTOR CO.
