Thunderbird
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle/Transmission
>>
Description And Operation
>>
Disassembled Views
Disassembled Views

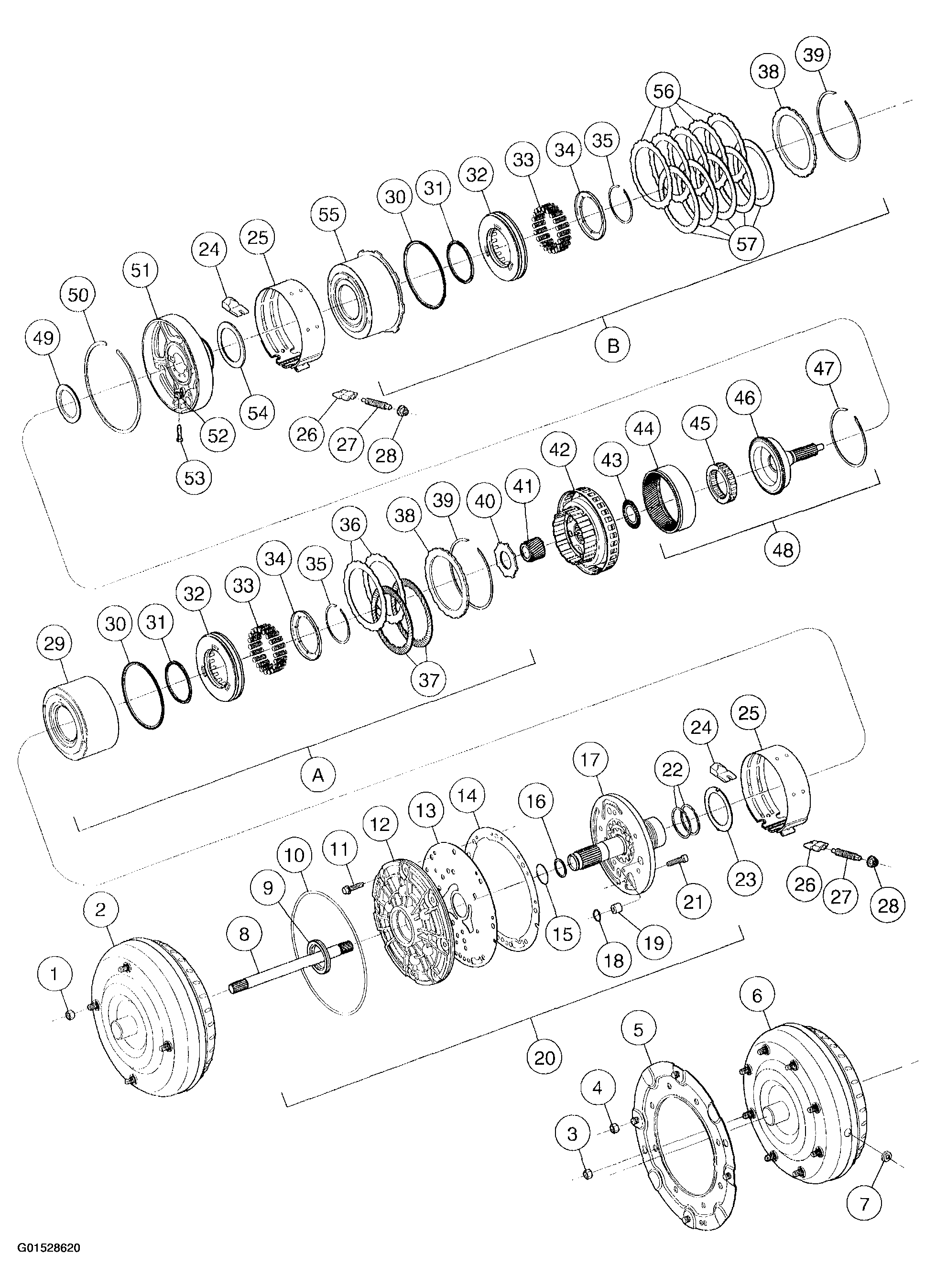

Fig 1: Automatic Transmission Disassembled Views (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 2: Automatic Transmission Disassembled Views (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 3: Automatic Transmission Disassembled Views (3 Of 3)
Courtesy of FORD MOTOR CO.

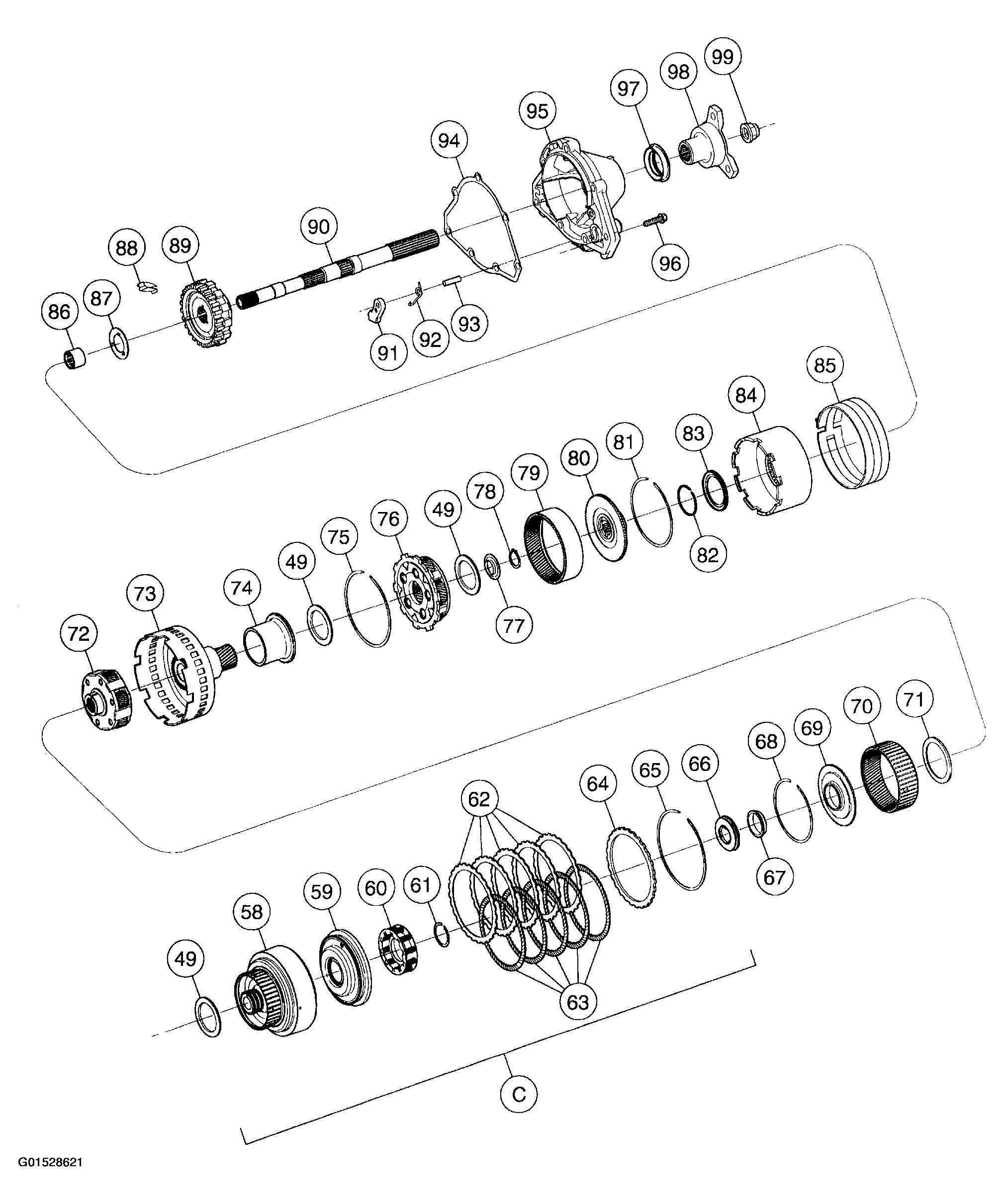

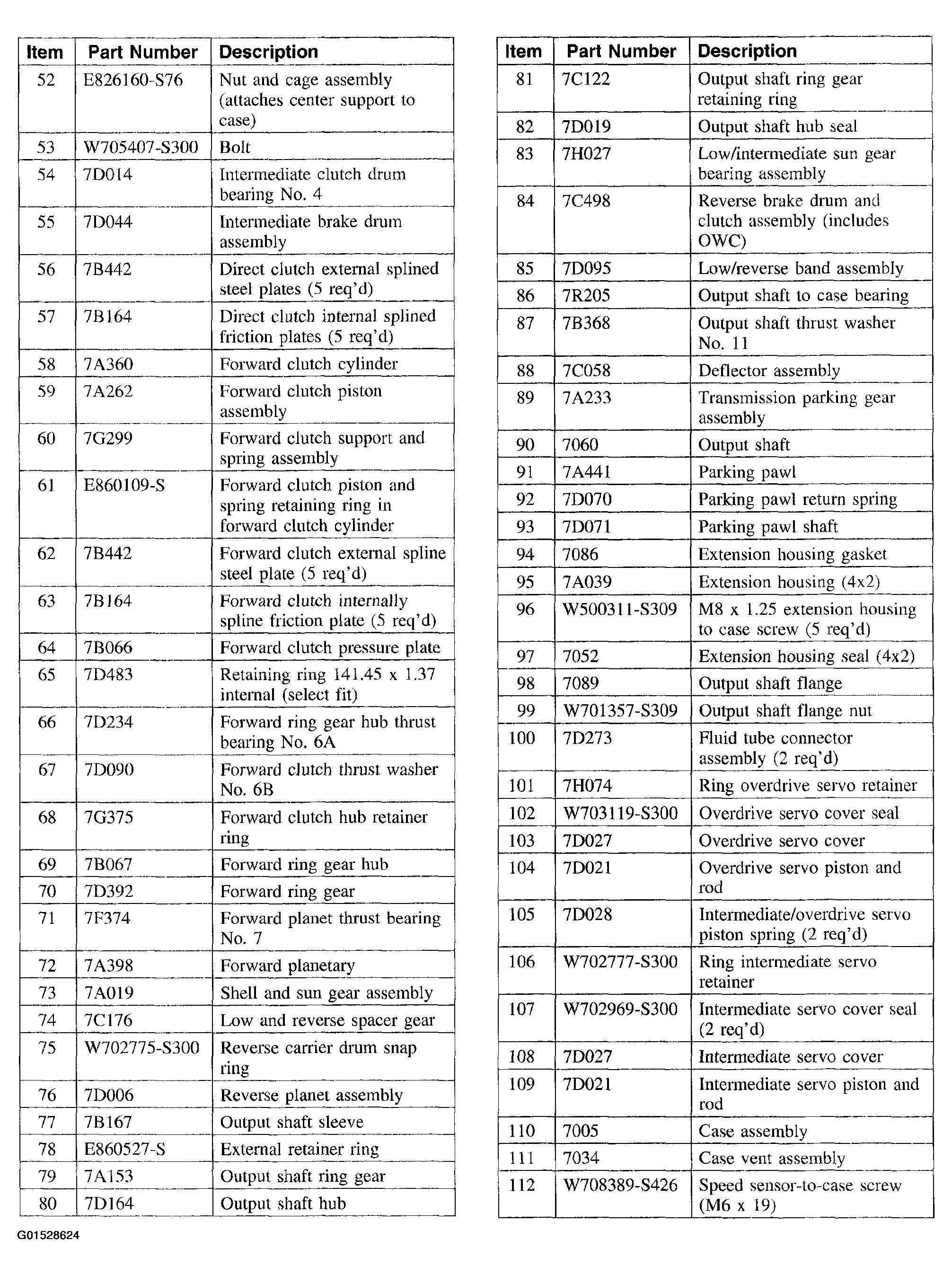

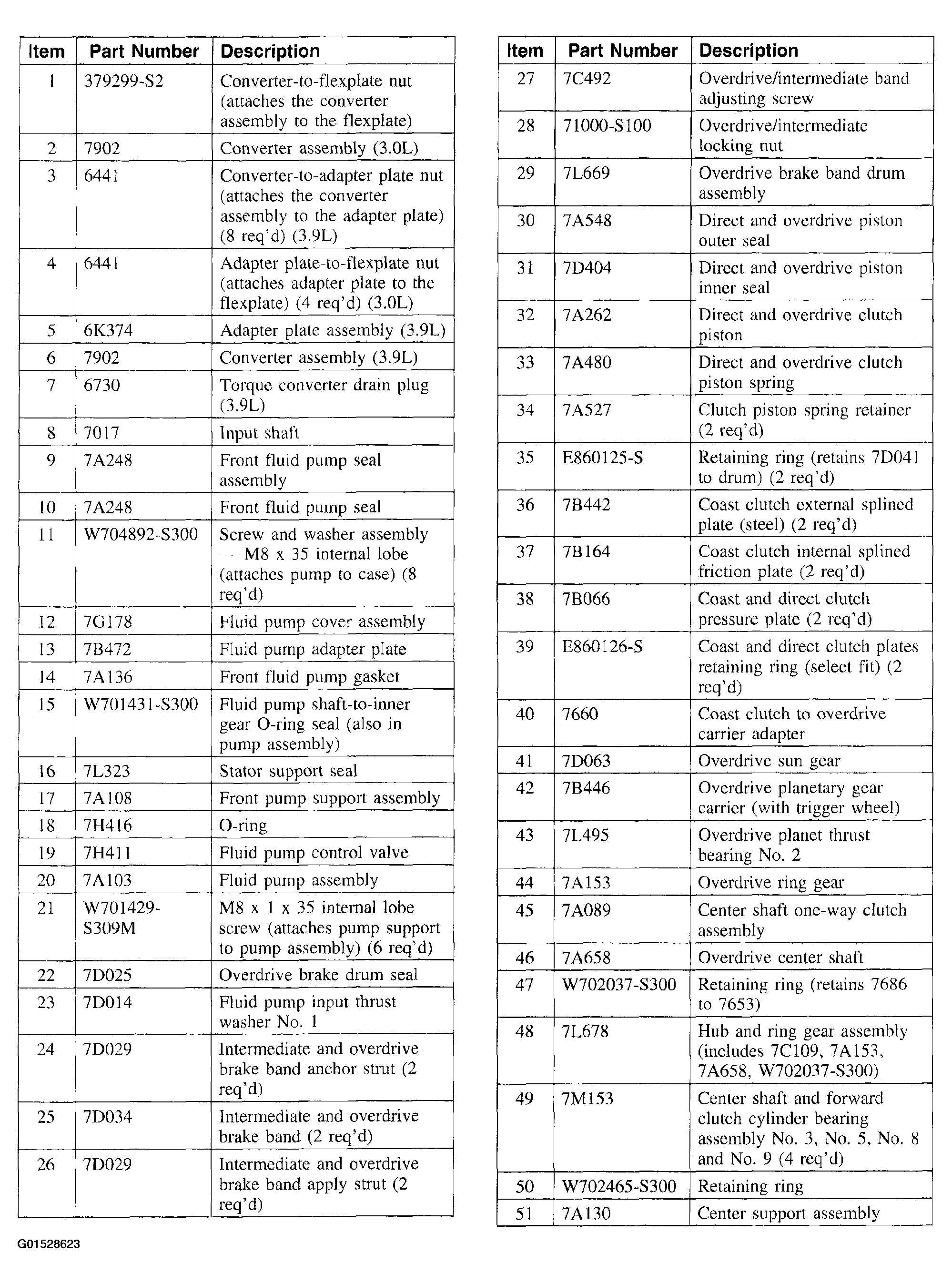

Fig 4: Automatic Transmission Disassembled Views (Items 1-51)
Courtesy of FORD MOTOR CO.

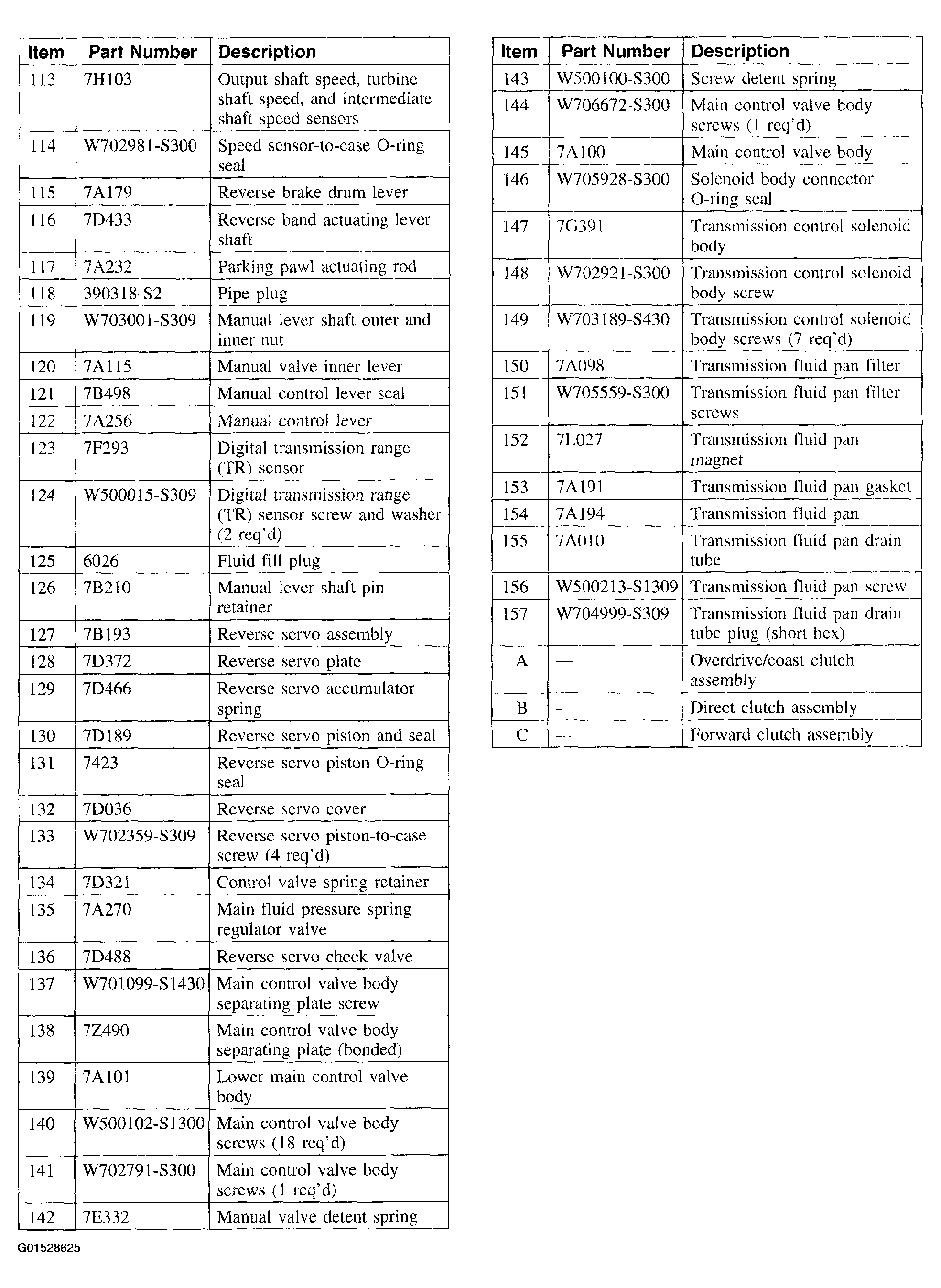

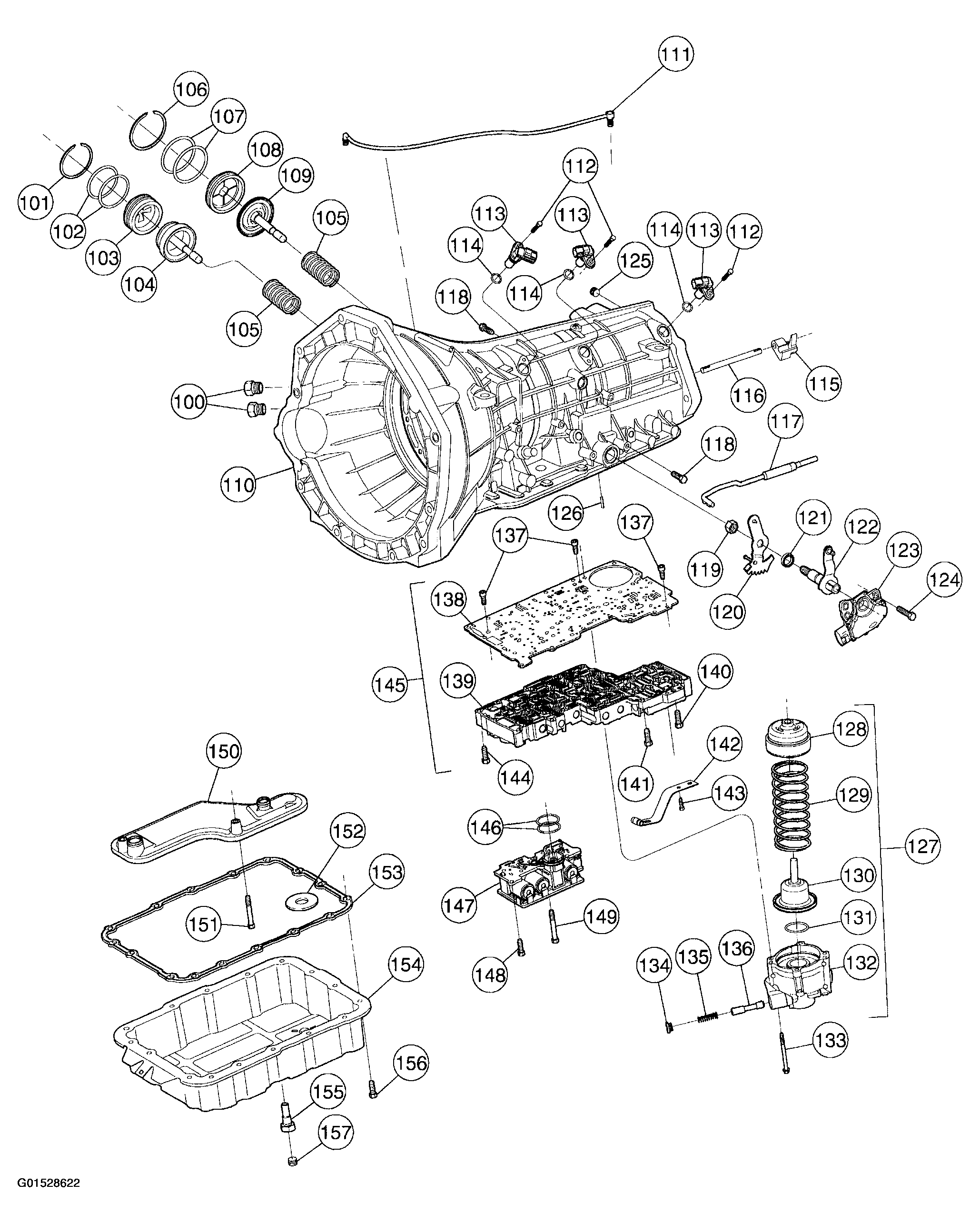

Fig 5: Automatic Transmission Disassembled Views (Items 52-112)
Courtesy of FORD MOTOR CO.
Fig 6: Automatic Transmission Disassembled Views (Items 113-157 And A-C)
Courtesy of FORD MOTOR CO.
