Battery & Charging System
>>
Diagnosis And Testing
>>
Charging System
>>
Connector Circuit Reference
>>
Generator C102a
Generator C102a
Fig 1: Generator C102a Connector Terminals
Courtesy of FORD MOTOR CO.

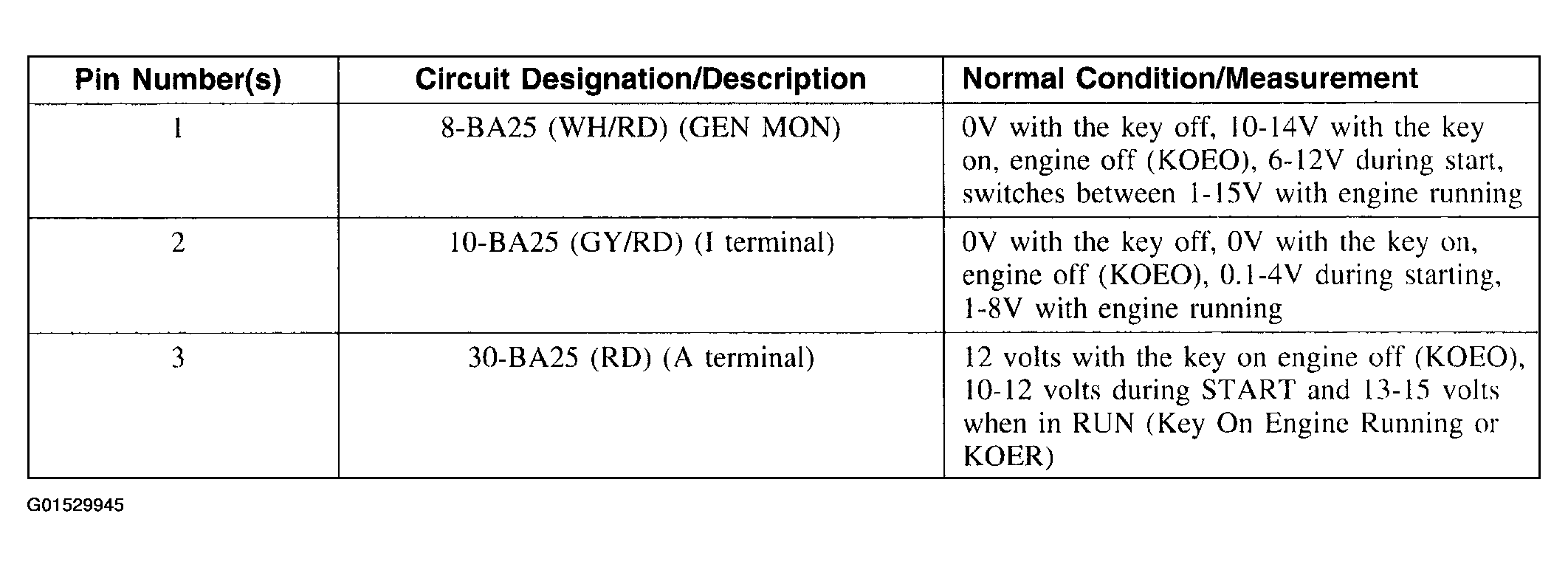

Fig 2: Generator C102a Connector Terminals Specification Chart
Courtesy of FORD MOTOR CO.
