LR Wheel Speed Sensor C440

Fig 1: LR Wheel Speed Sensor C440 Terminal

G01527624

Courtesy of FORD MOTOR CO.

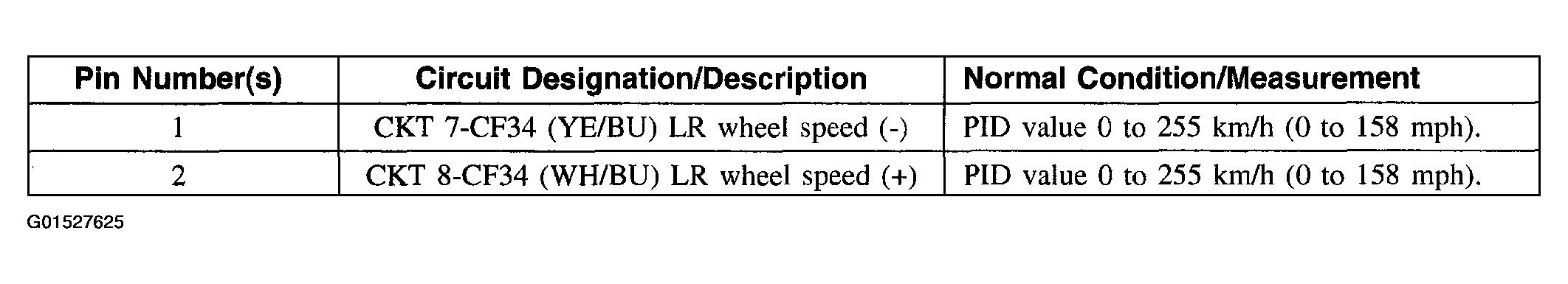

Fig 2: Connector Reference Chart

G01527625

Courtesy of FORD MOTOR CO.
