Clockspring C218a
Clockspring C218a
Fig 1: Clockspring C218a Connectors
Courtesy of FORD MOTOR CO.

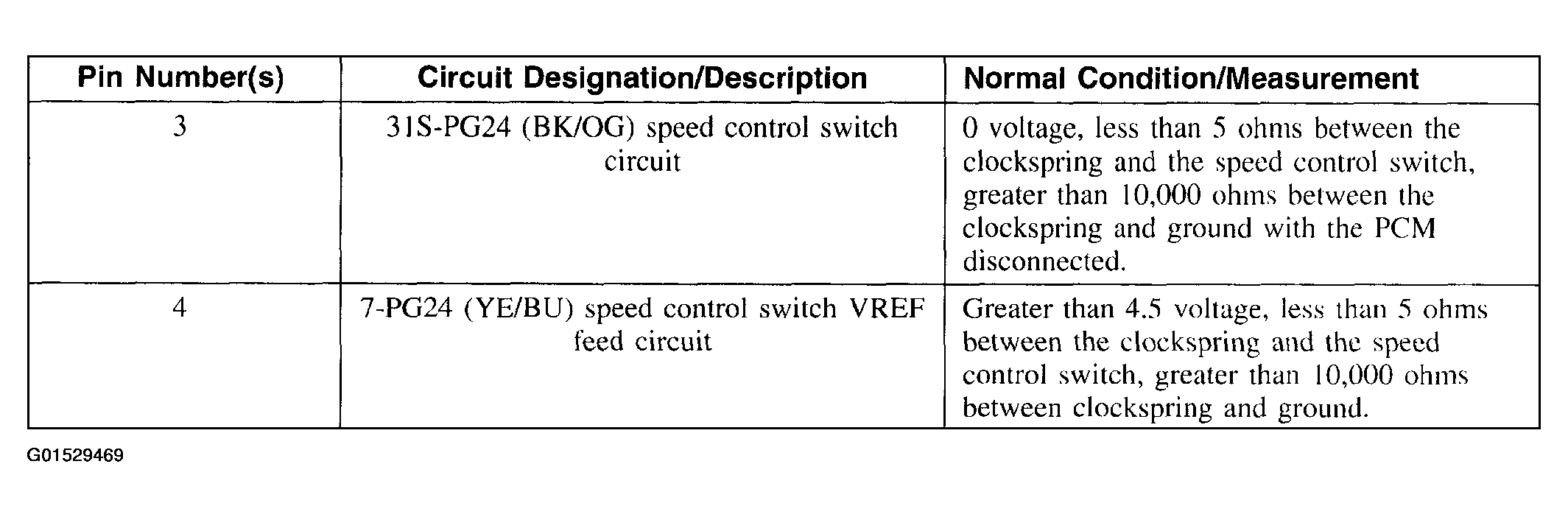

Fig 2: Clockspring C218a Circuit Diagnosis Table
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
