Pinpoint Test D: DTC B1484 - Brake Pedal Input Open Circuit

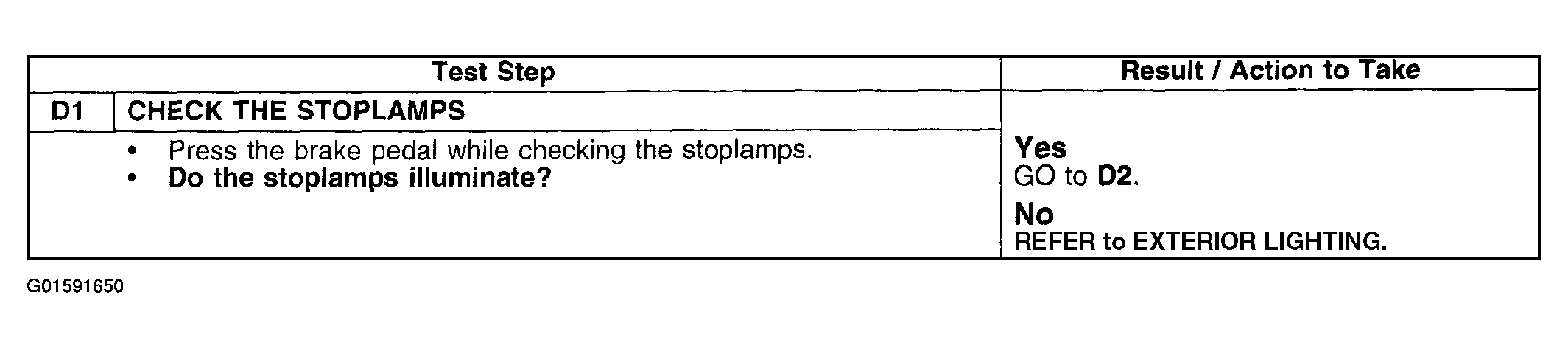

Fig 1: Pinpoint Test D: DTC B1484 - Brake Pedal Input Open Circuit (Steps D1)
G01591650Courtesy of FORD MOTOR CO.

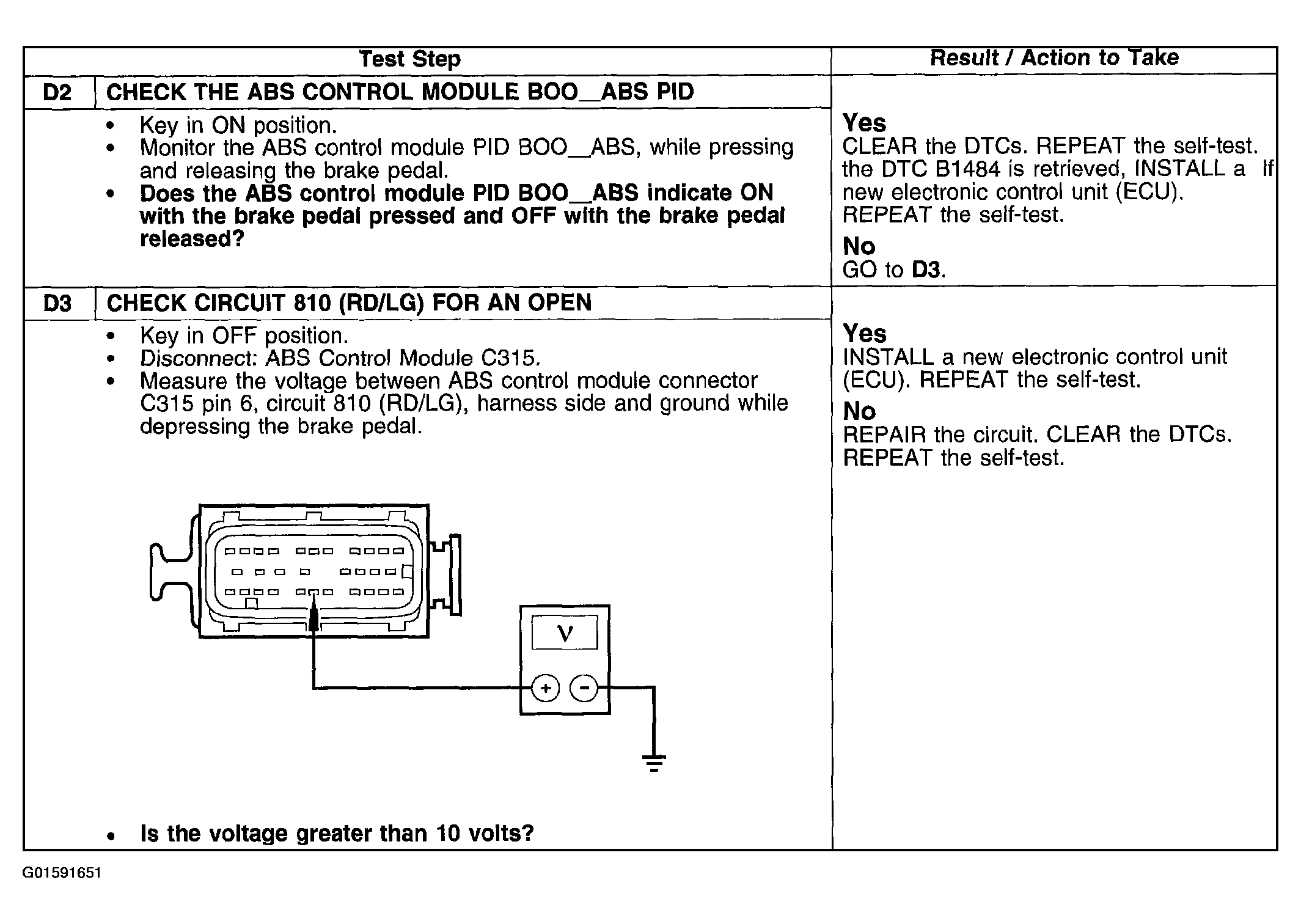

Fig 2: Pinpoint Test D: DTC B1484 - Brake Pedal Input Open Circuit (Steps D2-D3)
G01591651Courtesy of FORD MOTOR CO.
