Band And Clutch Application Chart

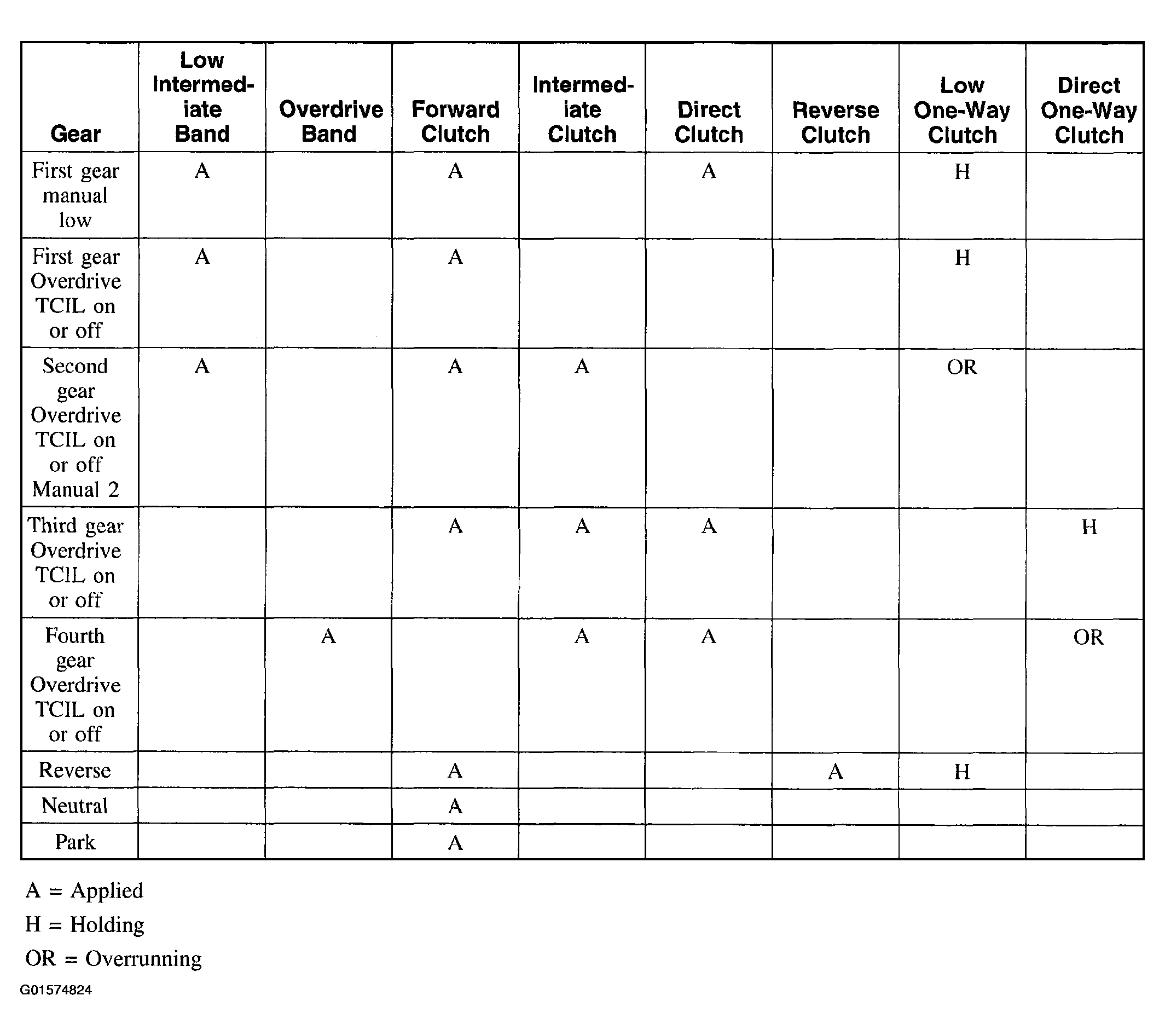

Fig 1: Band and Clutch Application Chart

G01574824

Courtesy of FORD MOTOR CO.
