Diagnostic Flow Chart

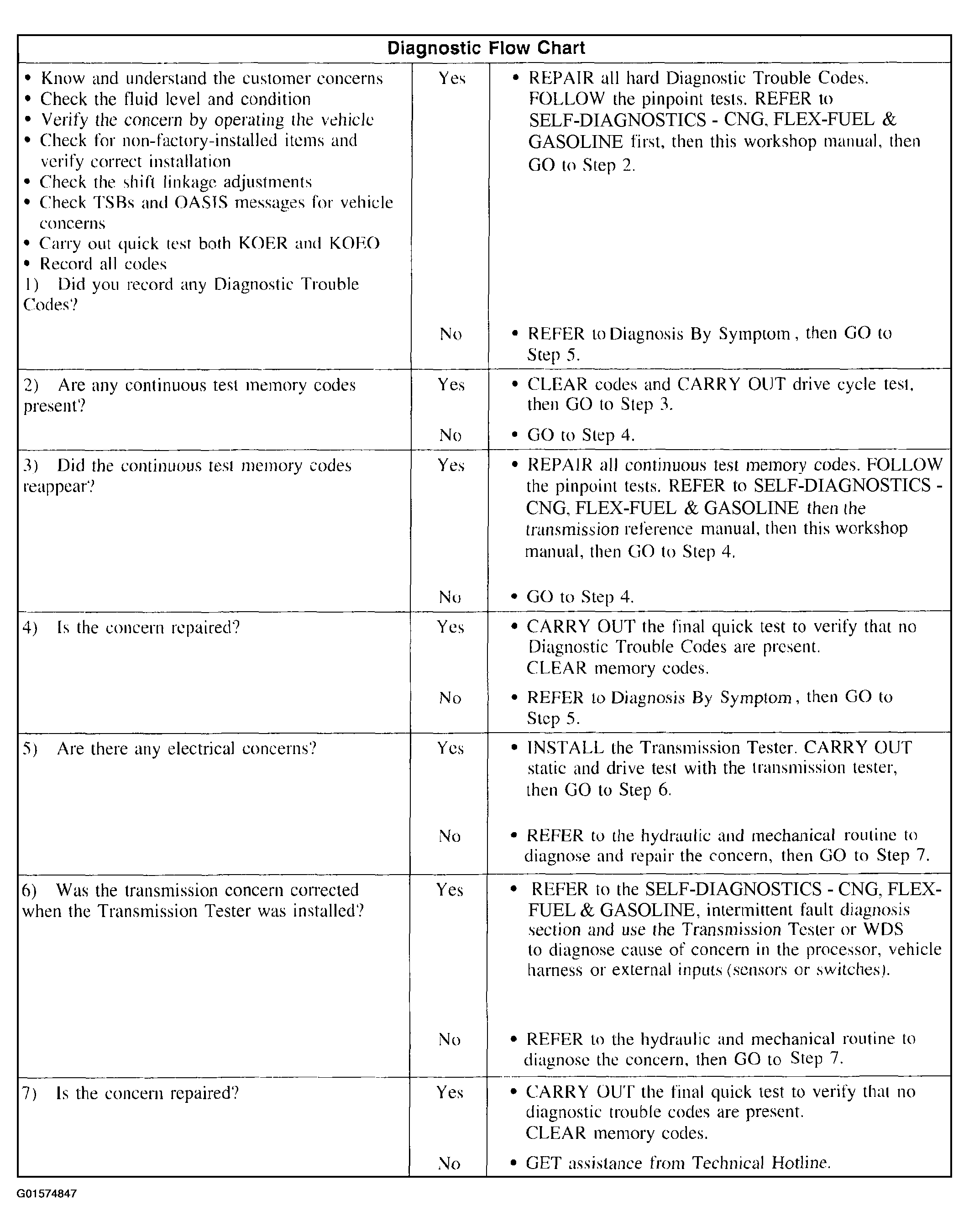

Fig 1: Identifying Diagnostic Flow Chart

G01574847

Courtesy of FORD MOTOR CO.
