Safety Belt System
>>
Symptom Chart
Symptom Chart

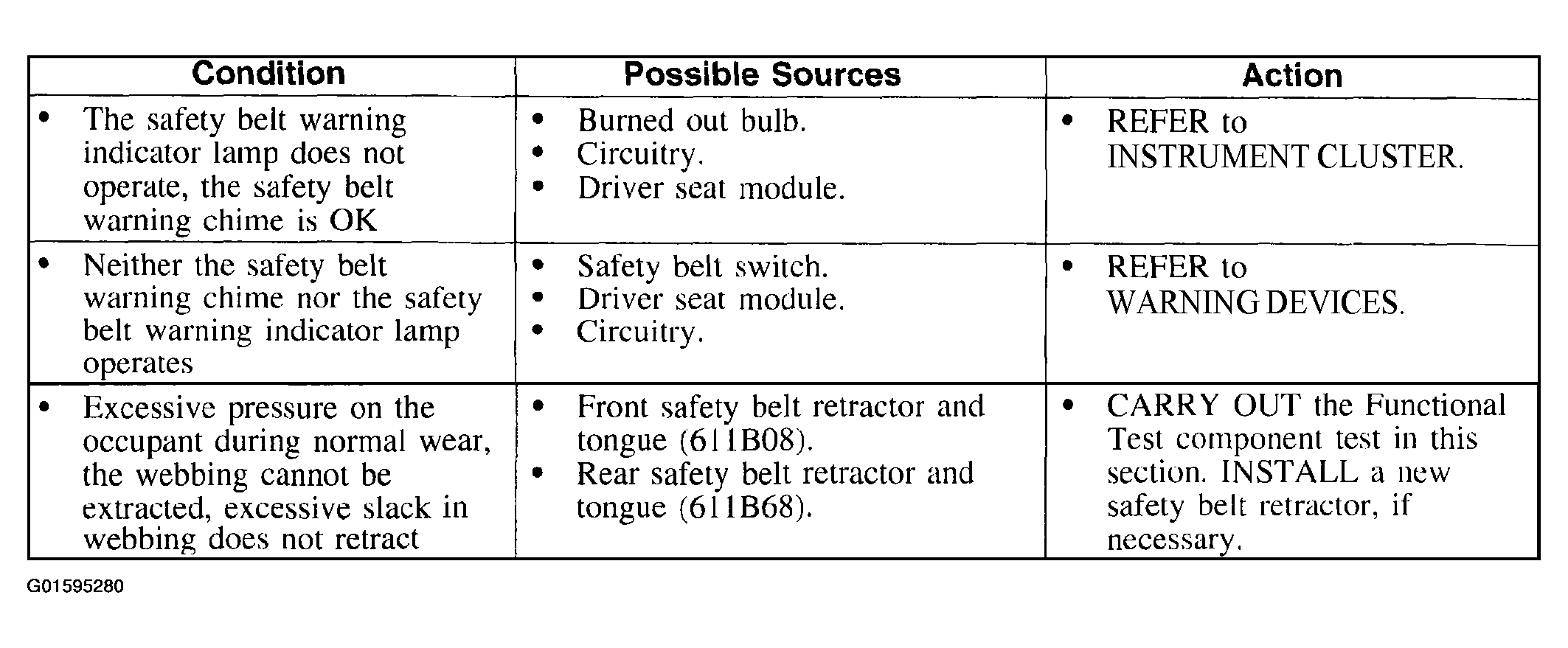

Fig 1: Identifying Safety Belt System Problem Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
