Anti-Lock Brake System (ABS) Module: Removal

  1. Disconnect the battery ground cable.
  2. Remove the hydraulic control unit bolts.

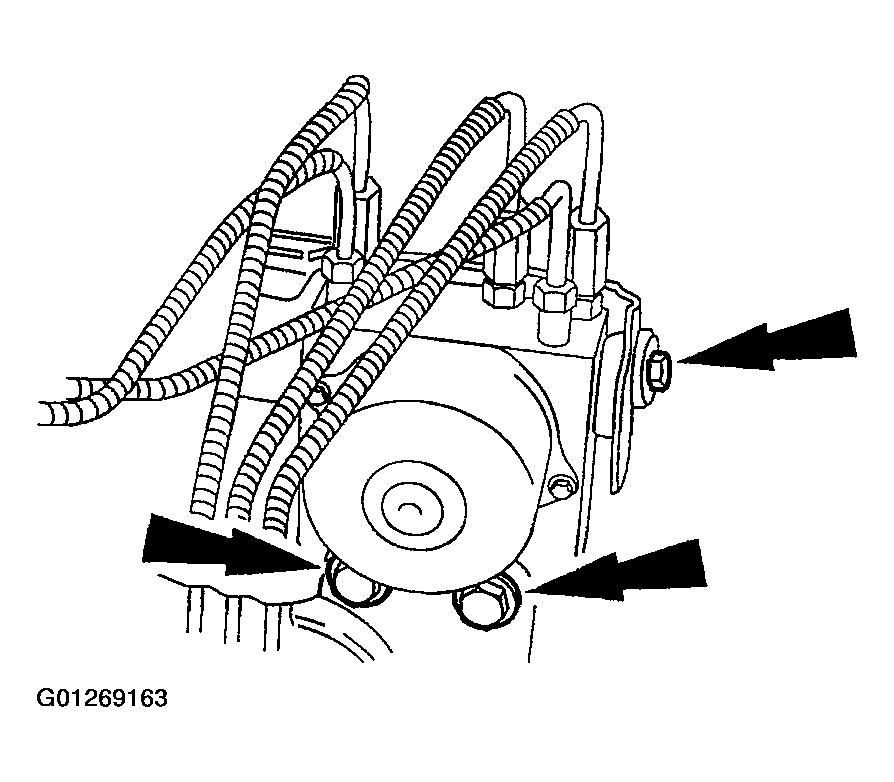

    Fig 1: Removing Hydraulic Control Unit Bolts
    G01269163Courtesy of FORD MOTOR CO.
  3. Disconnect the electrical connectors.

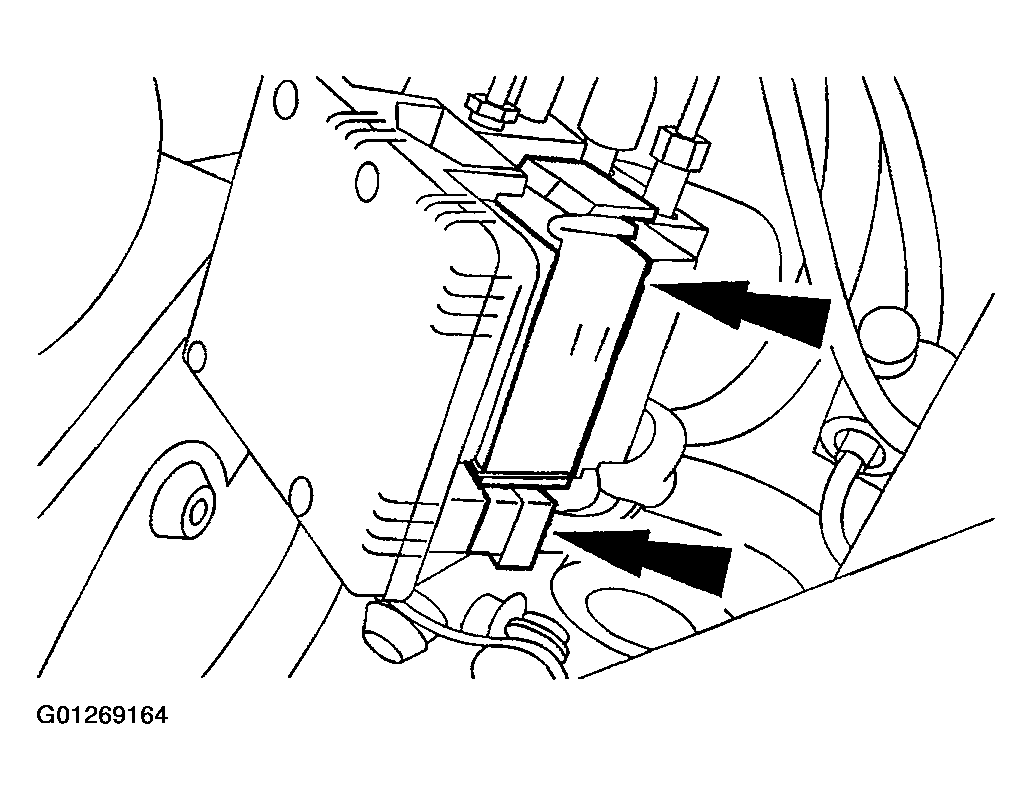

    Fig 2: Disconnecting Electrical Connectors
    G01269164Courtesy of FORD MOTOR CO.
  4. Remove the anti-lock brake control module.
    1. Remove the bolts.
    2. Remove the anti-lock brake control module.

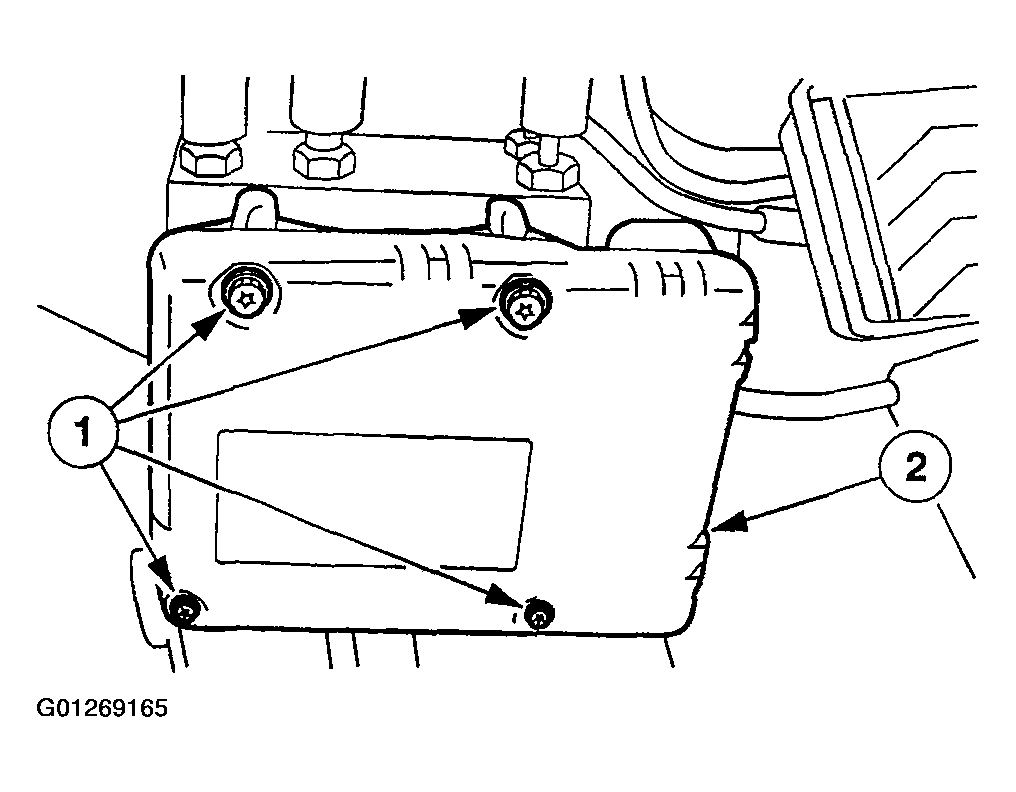

      Fig 3: Removing Anti-Lock Brake Control Module
      G01269165Courtesy of FORD MOTOR CO.
