Pinpoint Test C: The Transmission Control Switch Is Not Operating Properly

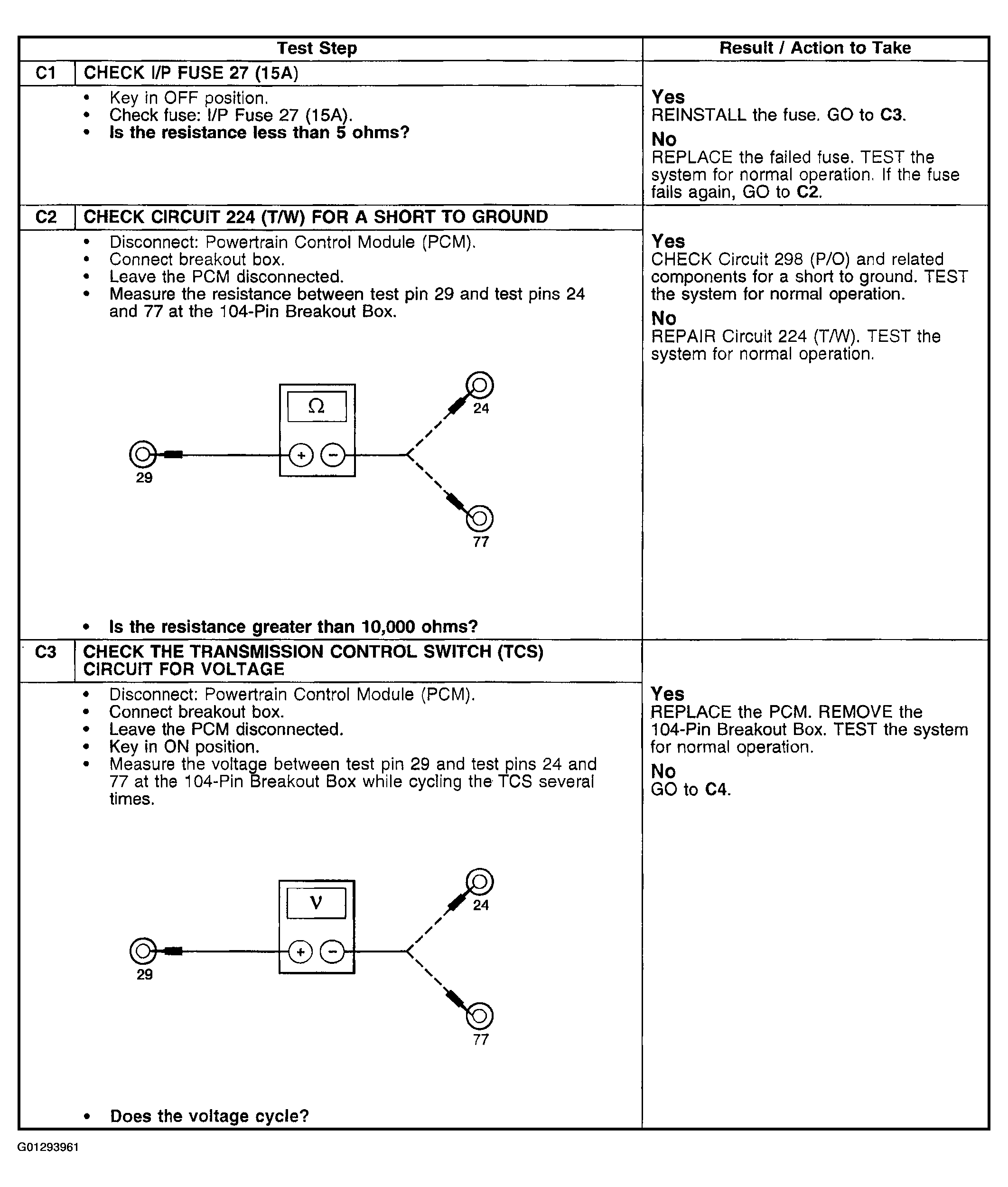

Fig 1: Pinpoint Test C: The Transmission Control Switch Is Not Operating Properly (Steps C1-C3)
G01293961Courtesy of FORD MOTOR CO.

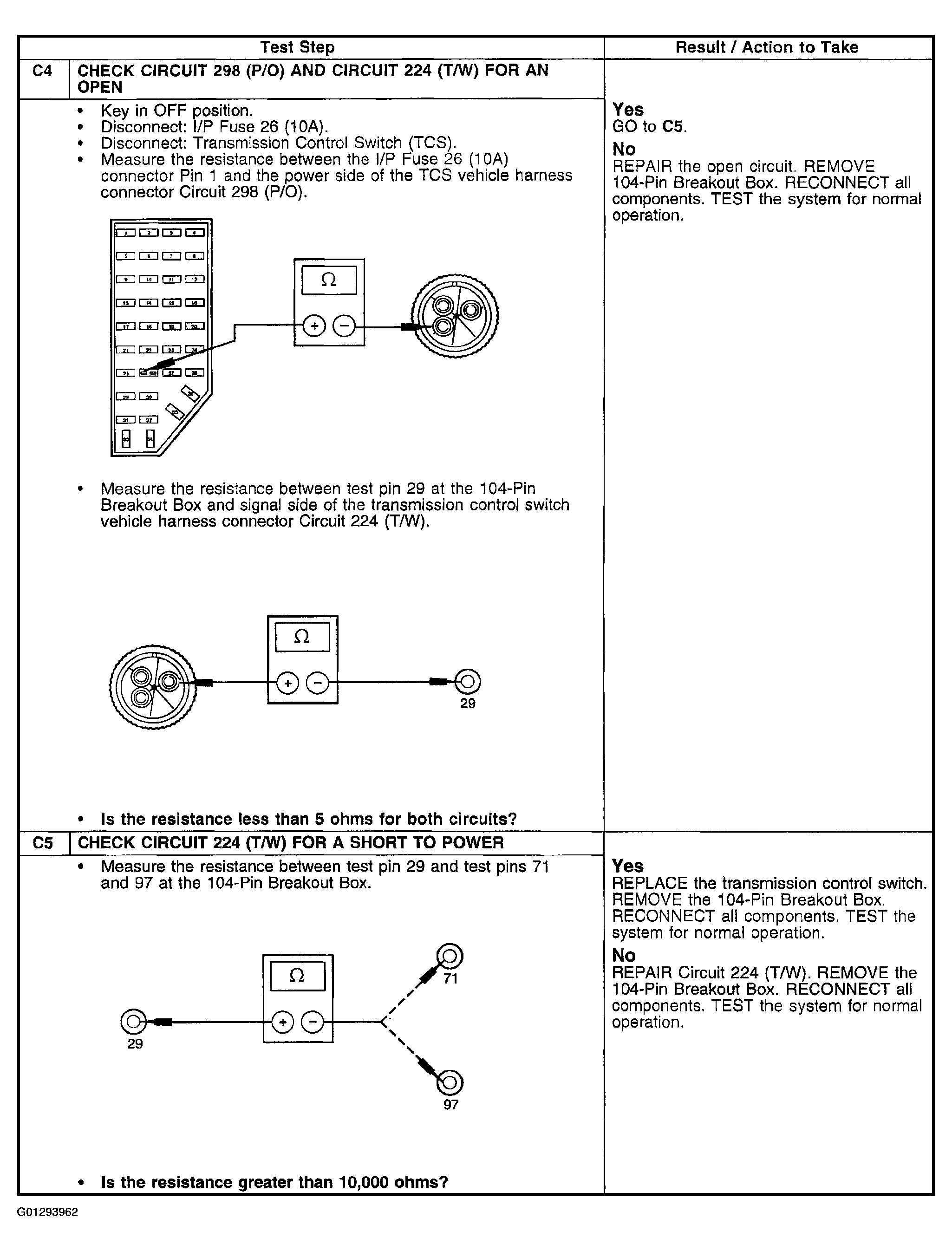

Fig 2: Pinpoint Test C: The Transmission Control Switch Is Not Operating Properly (Steps C4-C5)
G01293962Courtesy of FORD MOTOR CO.
