Pinpoint Test C: Poor Reception

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

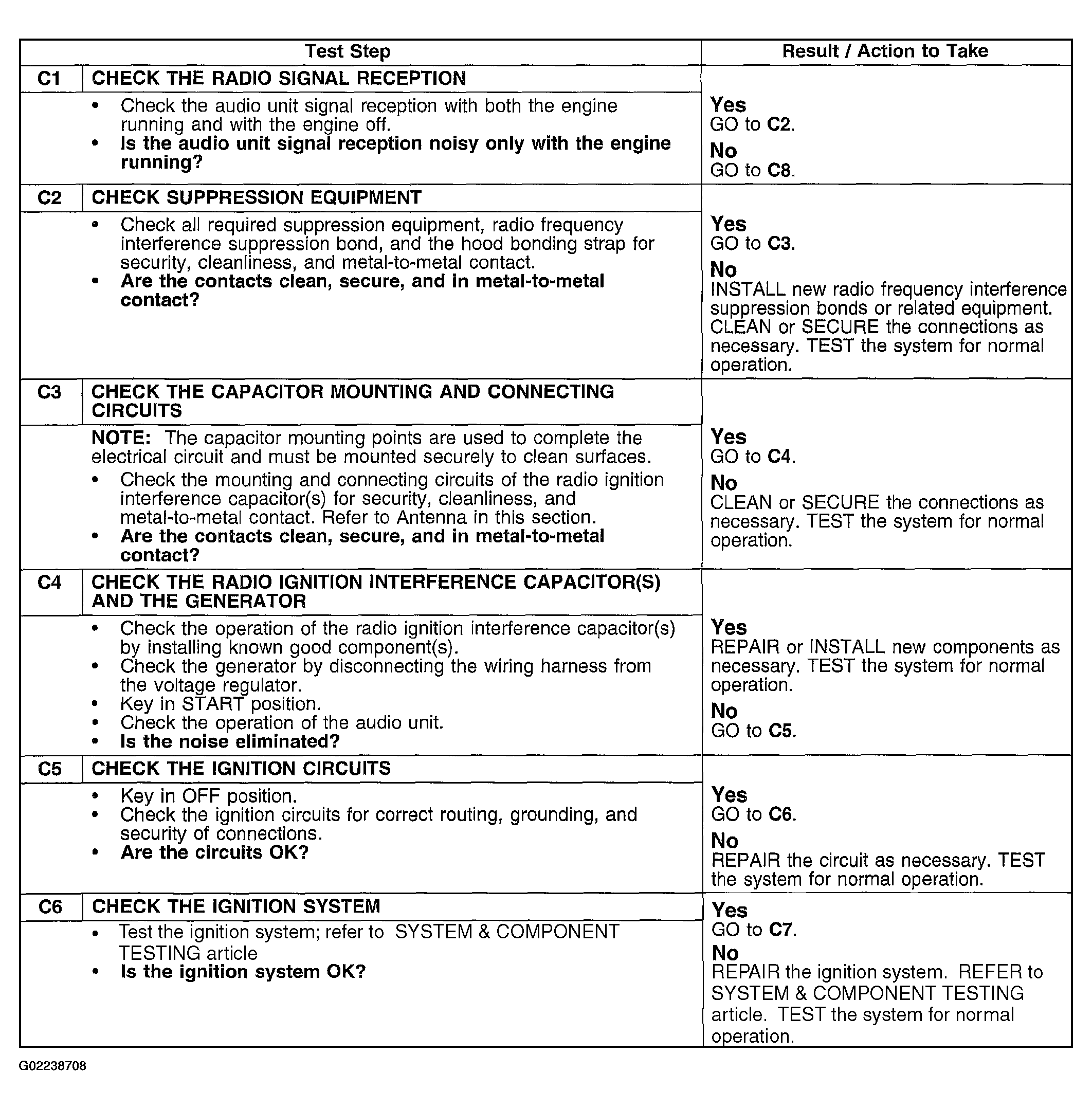

Fig 1: Pinpoint Test C: Poor Reception (Steps C1-C6)
G02238708Courtesy of FORD MOTOR CO.

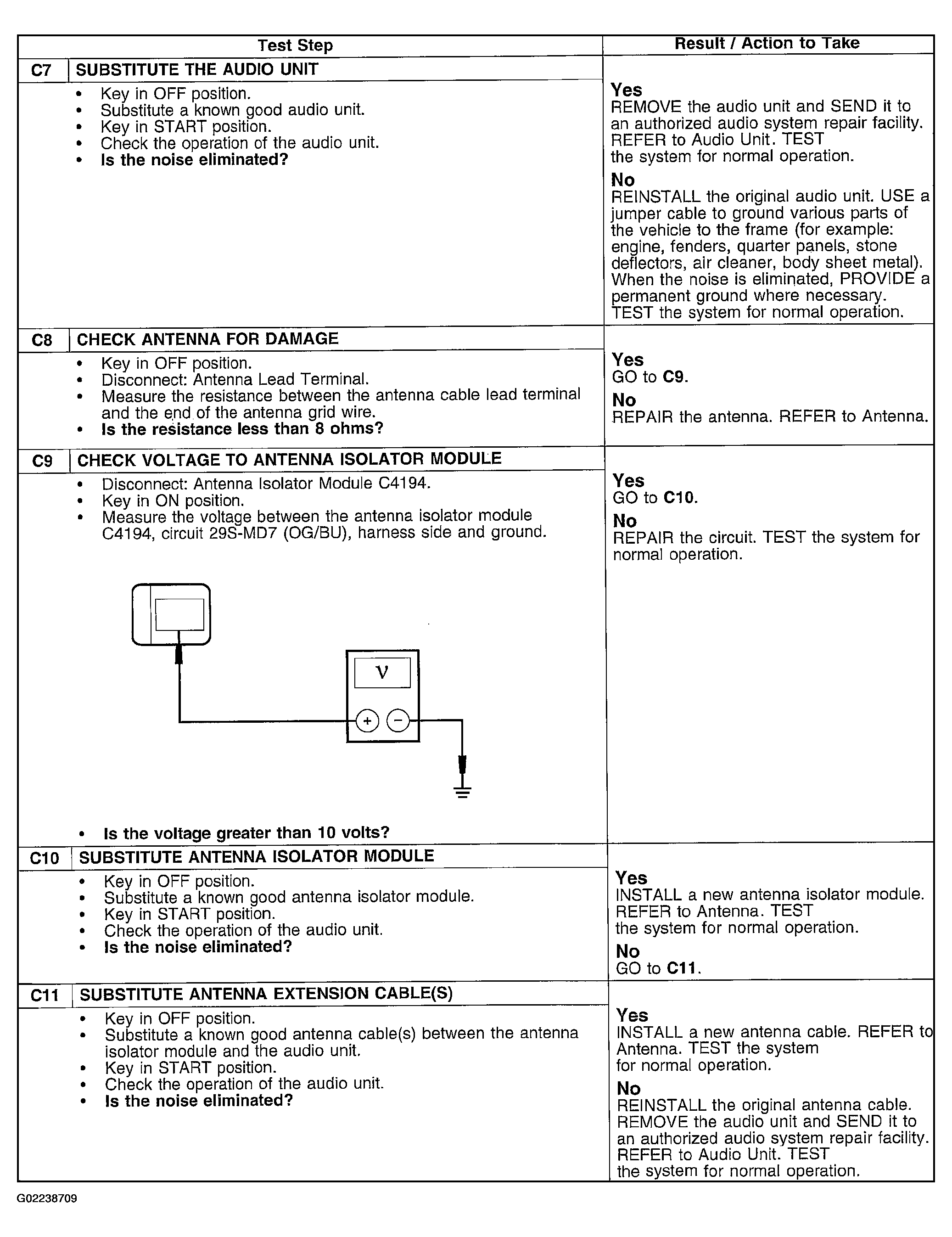

Fig 2: Pinpoint Test C: Poor Reception (Steps C7-C11)
G02238709Courtesy of FORD MOTOR CO.
