Pinpoint Test I: The Yellow Abs Warning Indicator Does Not Self-Check

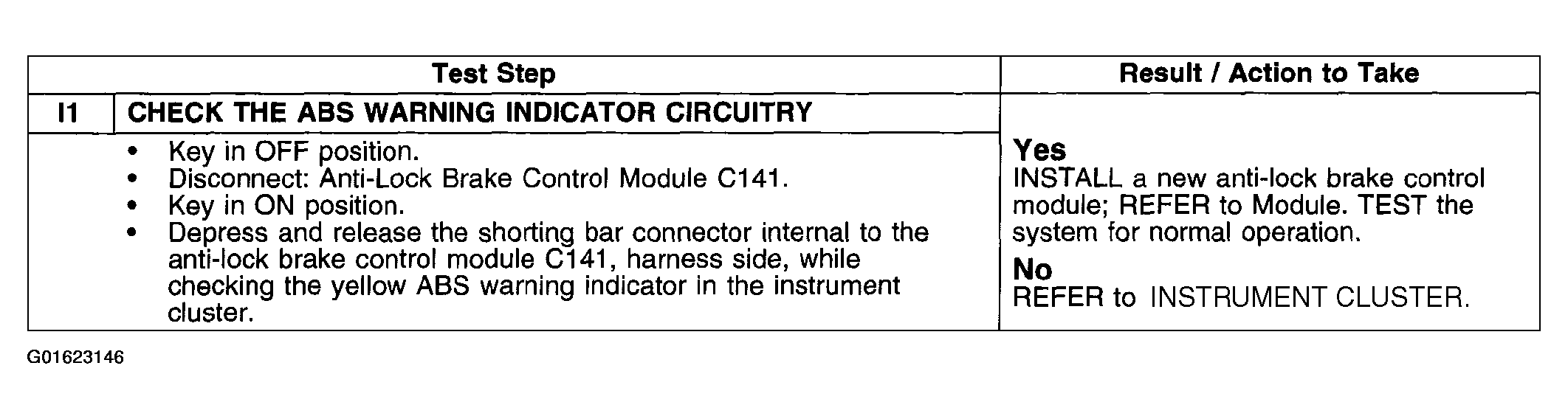

Fig 1: Pinpoint Test I: Yellow ABS Warning Indicator Does Not Self-Check (I1)

Courtesy of FORD MOTOR CO.

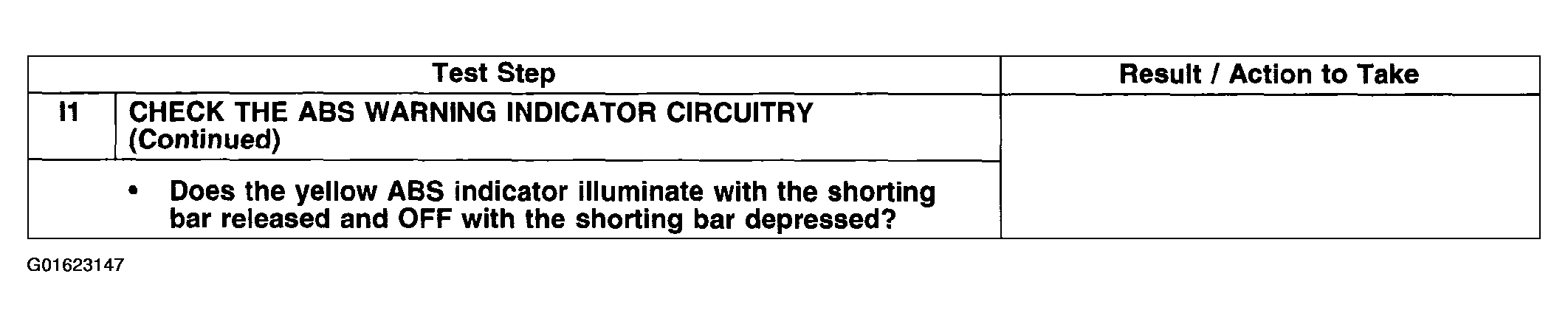

Fig 2: Pinpoint Test I: Yellow ABS Warning Indicator Does Not Self-Check (I1) (Continued)

Courtesy of FORD MOTOR CO.
