Pinpoint Test G: DTC C1222, Anti-Lock Brake Sensor Mismatch

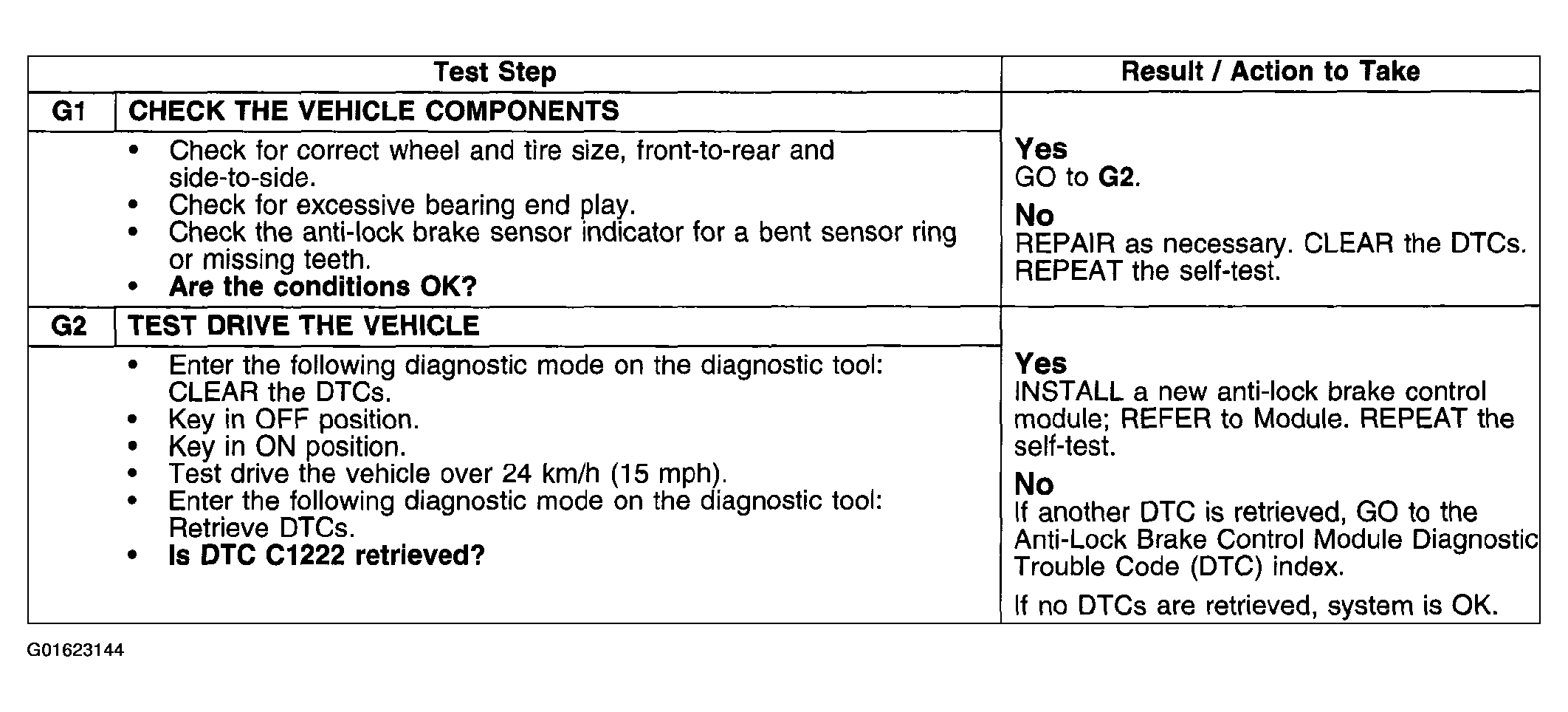

Fig 1: Pinpoint Test G: DTC C1222, Anti-Lock Brake Sensor Mismatch (G1 & G2)

G01623144

Courtesy of FORD MOTOR CO.
