Disassembly and Assembly

All Vehicles

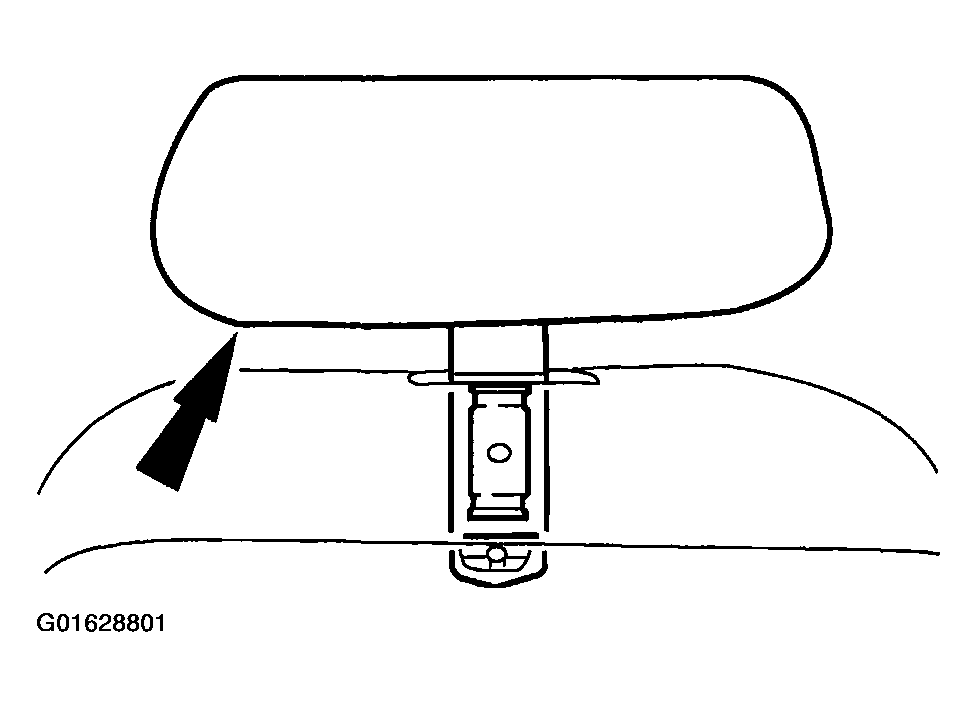

Remove the front seat backrest head restraint (611A08).

Fig 1: Removing Front Seat Backrest Head Restraint

Courtesy of FORD MOTOR CO.

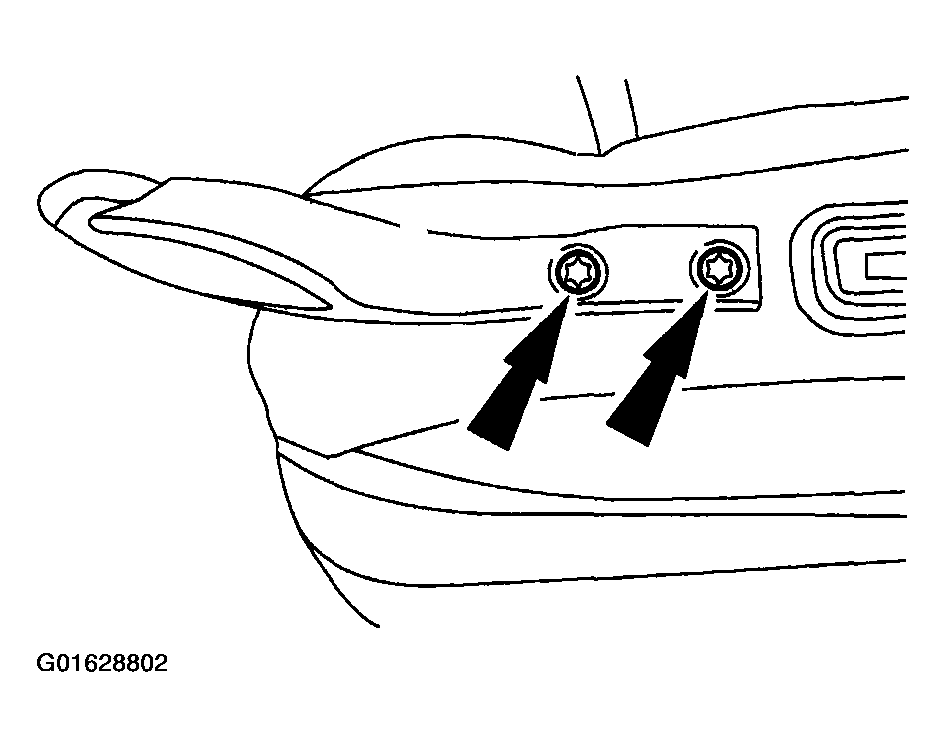

Remove the screws and the safety belt guide.

Fig 2: Removing Safety Belt Guide

Courtesy of FORD MOTOR CO.

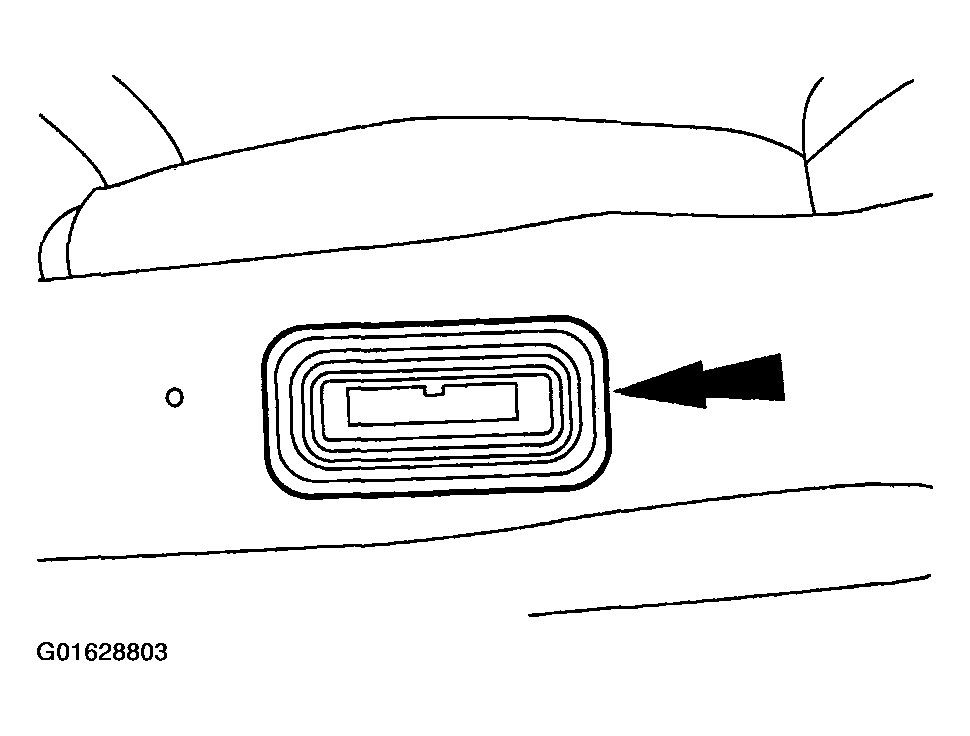

Remove the front seat headrest guide rod sleeve (610A16).

Fig 3: Removing Front Seat Headrest Guide Rod Sleeve

Courtesy of FORD MOTOR CO.

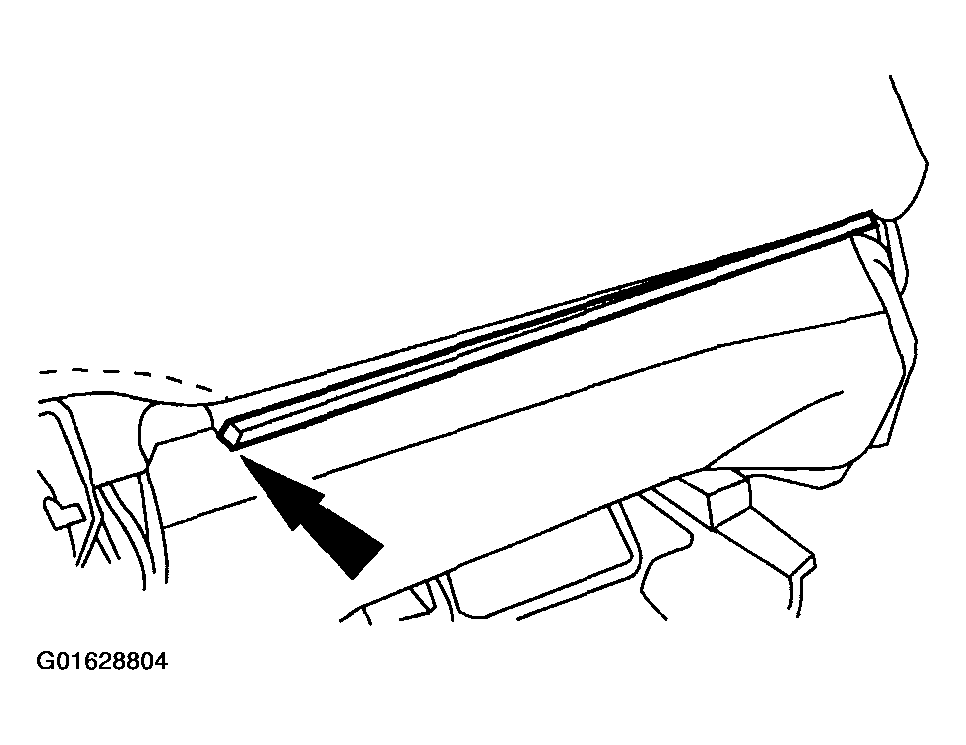

Release the J-clip.

Fig 4: Releasing J-Clip

Courtesy of FORD MOTOR CO.

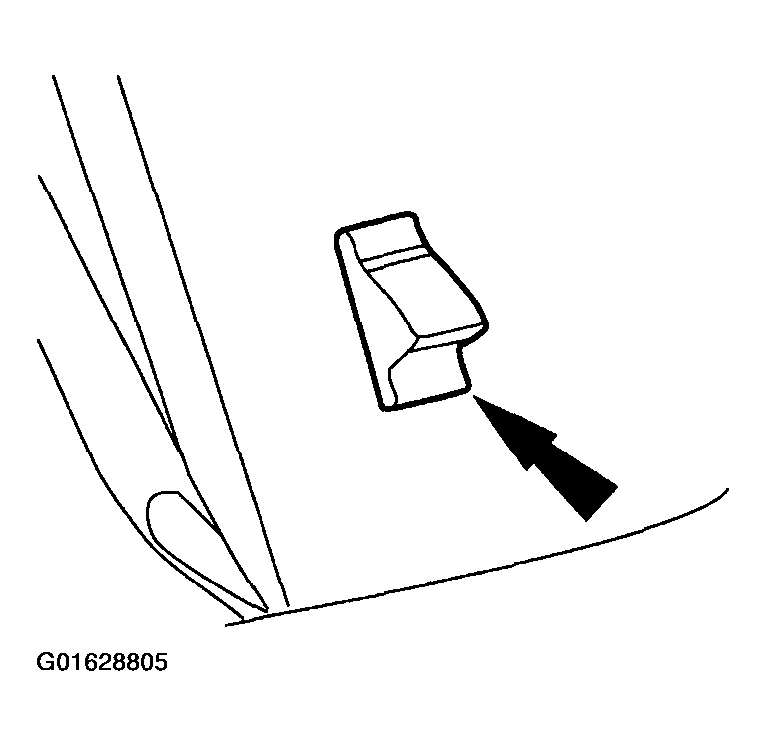

Remove the seat backrest latch handle knob.

Fig 5: Removing Seat Backrest Latch Handle Knob

Courtesy of FORD MOTOR CO.

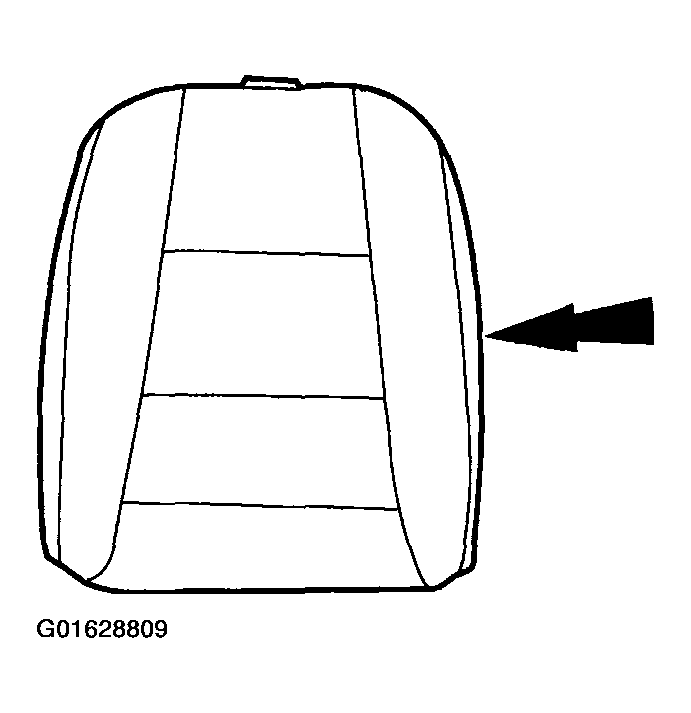

Pull the seat backrest trim cover upward.

Fig 6: Pulling Seat Backrest Trim Cover

Courtesy of FORD MOTOR CO.

Remove the hog rings.

Fig 7: Removing Hog Rings

Courtesy of FORD MOTOR CO.

Remove the front seat backrest trim cover (64416) from the front seat backrest pad.

Fig 8: Removing Front Seat Backrest Trim Cover From Front Seat Backrest Pad

Courtesy of FORD MOTOR CO.

Release the front seat backrest frame (61018) from the front seat backrest foam pad.

Fig 9: Releasing Front Seat Backrest Frame

Courtesy of FORD MOTOR CO.

Vehicles With Standard Power Lumbar

Remove the seat backrest lumbar adjuster pad.

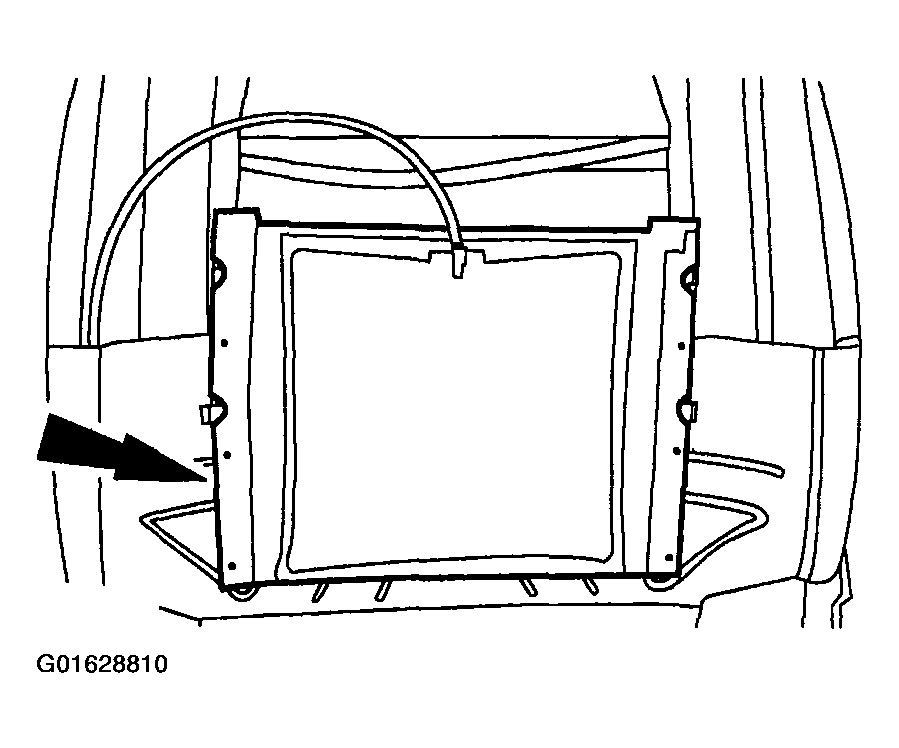

Fig 10: Removing Seat Backrest Lumbar Adjuster Pad

Courtesy of FORD MOTOR CO.

Vehicles With Power Bolster And Lumbar

12. Remove the two screws and the seat backrest lumbar and bolster adjuster pad.

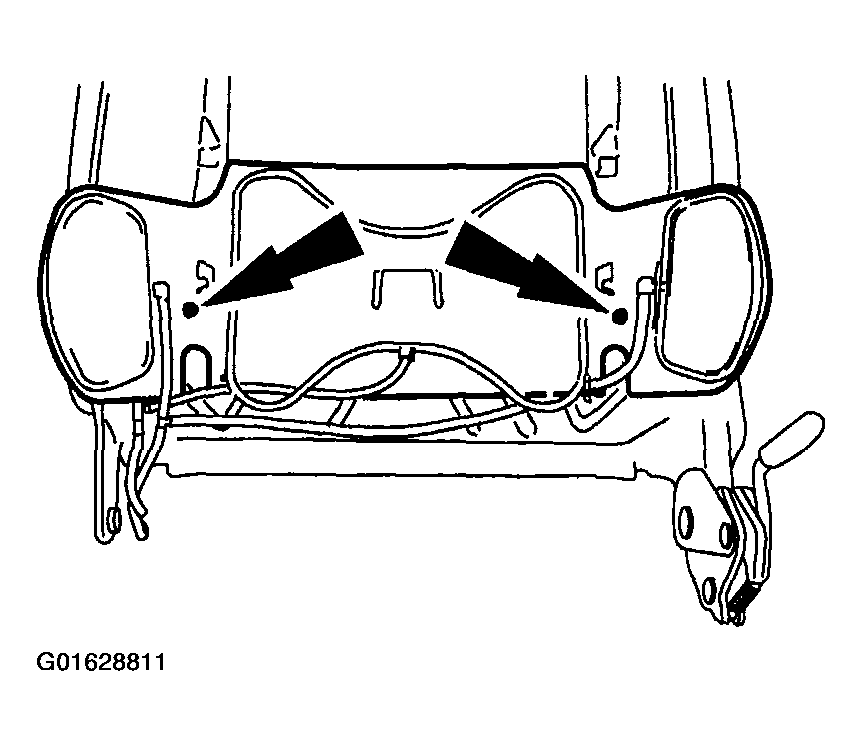

Fig 11: Identifying Seat Backrest Lumbar And Bolster Adjuster Pad Screws

Courtesy of FORD MOTOR CO.

All Vehicles
