Actuator Cable - Speed Control: Notes

  1. Remove the speed control actuator cable end from the throttle body.
    1. Lift the speed control cable from the throttle nailhead.
    2. Release the speed control cable from the throttle bracket.

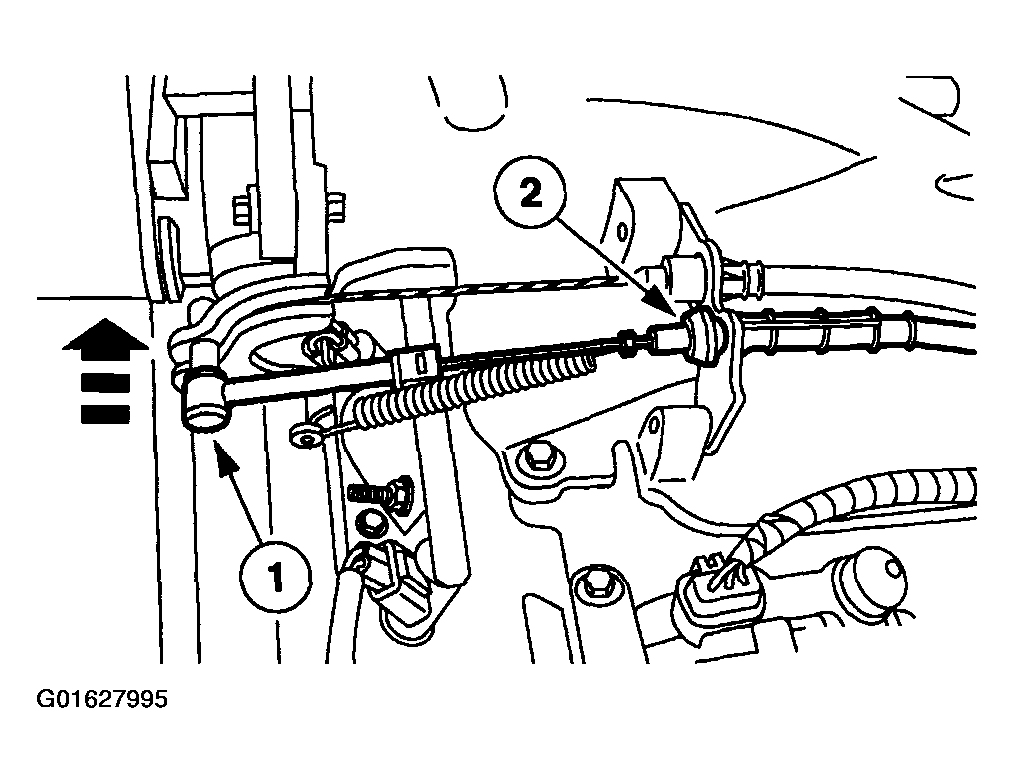

    Fig 1: Removing Speed Control Actuator Cable End From Throttle Body
    G01627995Courtesy of FORD MOTOR CO.
  2. Remove the speed control cable from the retaining clips.

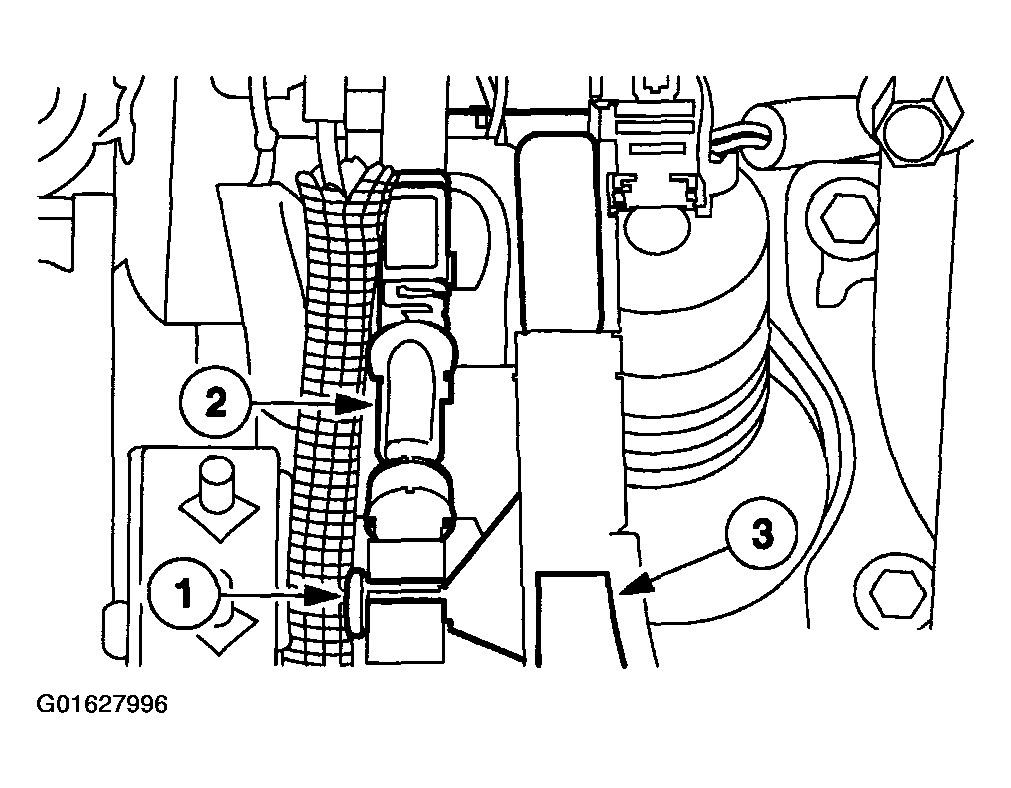

    Fig 2: Removing Speed Control Cable From Retaining Clips (1 Of 2)
    G01627996Courtesy of FORD MOTOR CO.

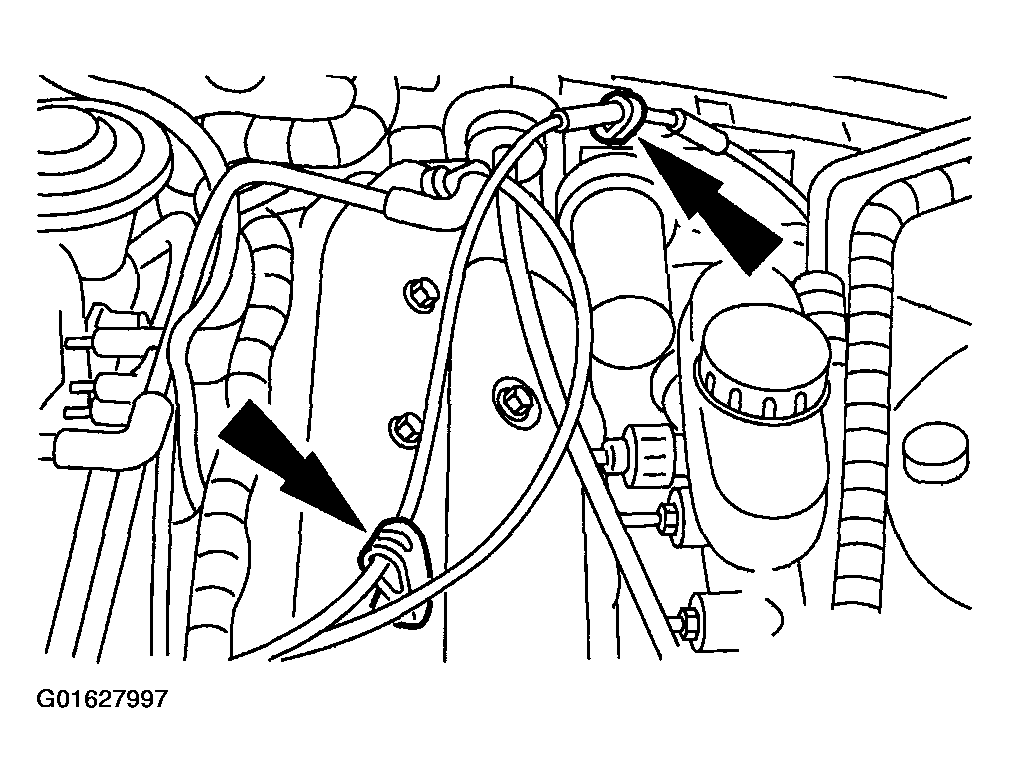

    Fig 3: Removing Speed Control Cable From Retaining Clips (2 Of 2)
    G01627997Courtesy of FORD MOTOR CO.
  3. Remove the LH front wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
  4. Position aside the LH front splash shield.
    1. Remove the pin-type retainers.
    2. Remove the screws.
    3. Position aside the LH front splash shield.

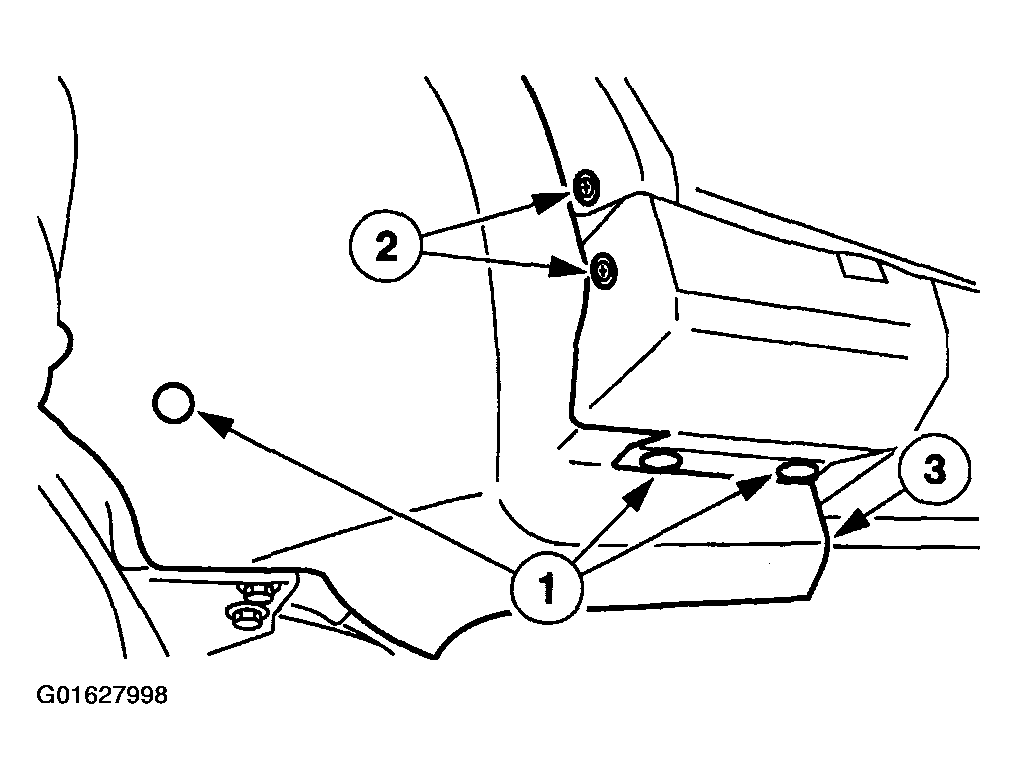

    Fig 4: Removing LH Front Splash Shield
    G01627998Courtesy of FORD MOTOR CO.
  5. Depress the locking tap and rotate the speed control actuator cable cap to remove.
    Fig 5: Removing Speed Control Actuator Cable Cap
    G01627999Courtesy of FORD MOTOR CO.
  6. Disconnect the speed control actuator cable from the speed control servo pulley.
    1. Gently push in the retaining spring.
    2. Disconnect the speed control cable slug from the speed control servo pulley.
    Fig 6: Disconnecting Speed Control Actuator From Speed Control Servo Pulley
    G01628000Courtesy of FORD MOTOR CO.
