Pinpoint Test F: The Speed Control Switch Is Inoperative - Set/ACCEL
Pinpoint Test F: The Speed Control Switch Is Inoperative - Set/ACCEL

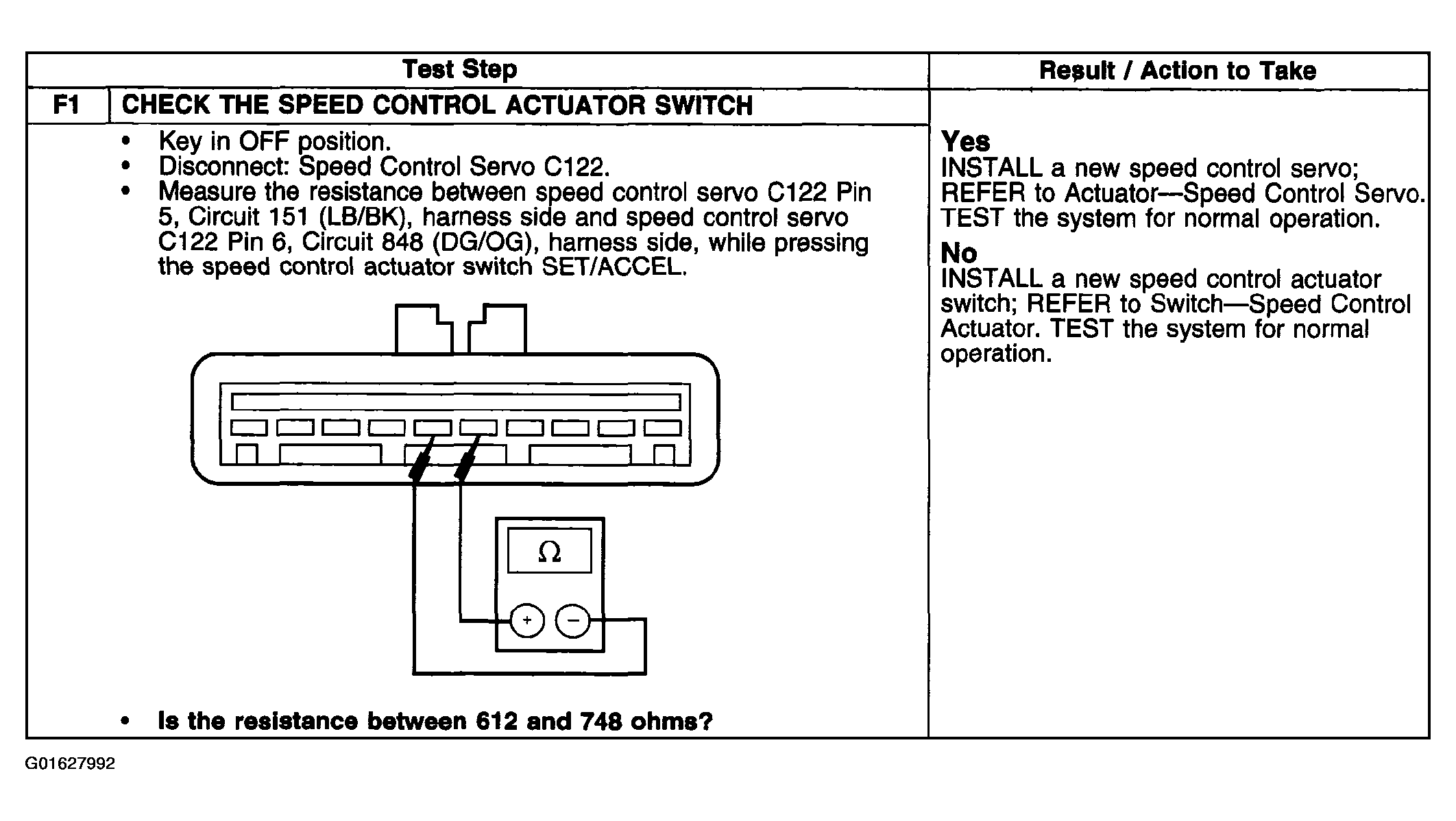

Fig 1: Pinpoint Test F: Speed Control Switch Is Inoperative - Set/Accel
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
