Home >> Ford >> 2003 >> Mustang Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Specifications >> Forward Clutch Pack

Forward Clutch Pack

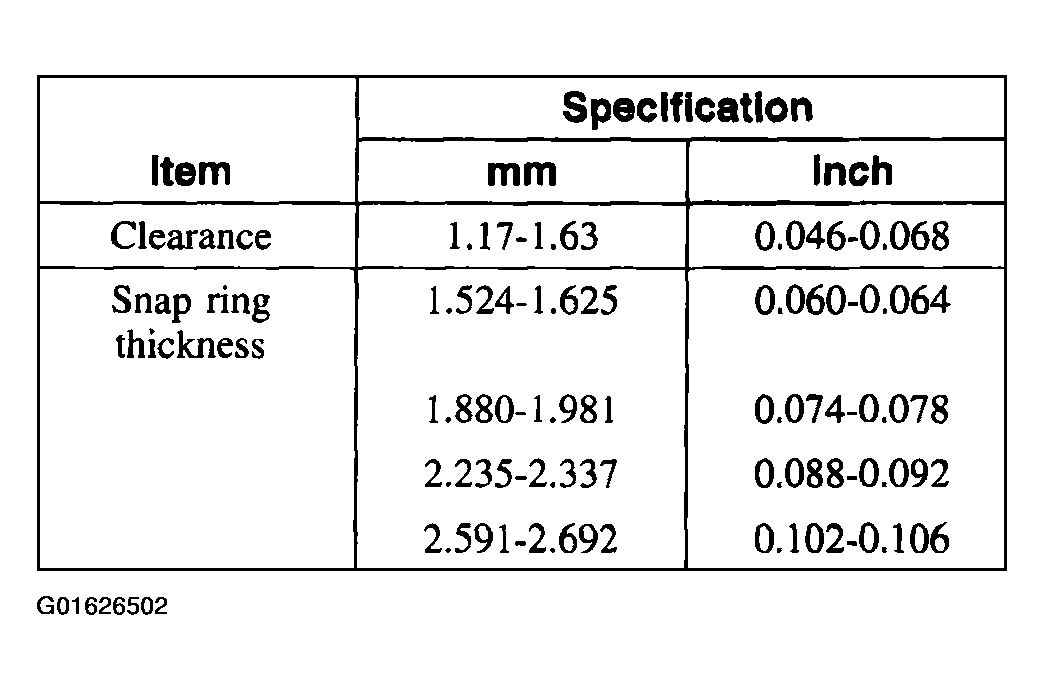

Fig 1: Identifying Forward Clutch Pack Specification

G01626502

Courtesy of FORD MOTOR CO.
