Oil Level Indicator And Tube: Installation

WARNING: This page is about a different variant/trim than selected.
  1. To install, reverse the removal procedure.

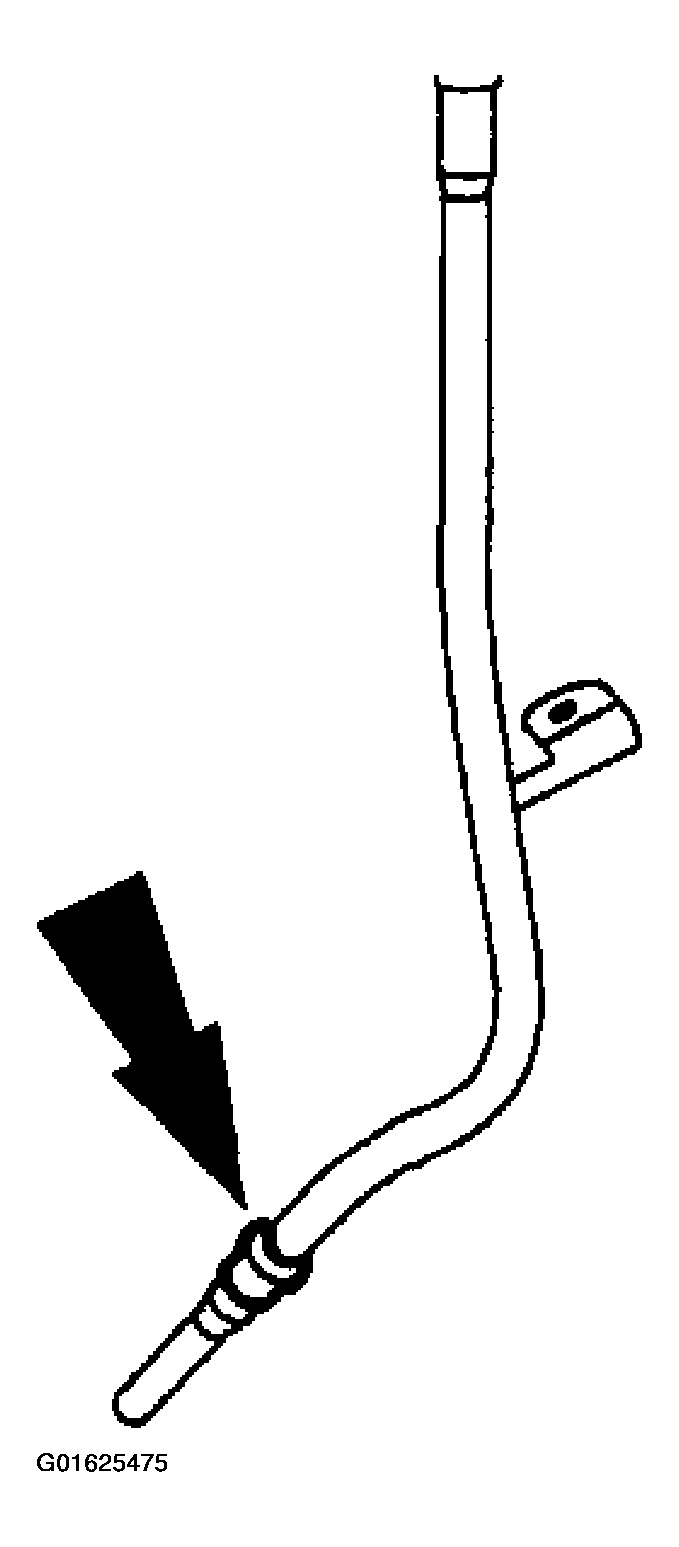

    Fig 1: Installing O-Ring On Oil Level Indicator Tube
    G01625475Courtesy of FORD MOTOR CO.

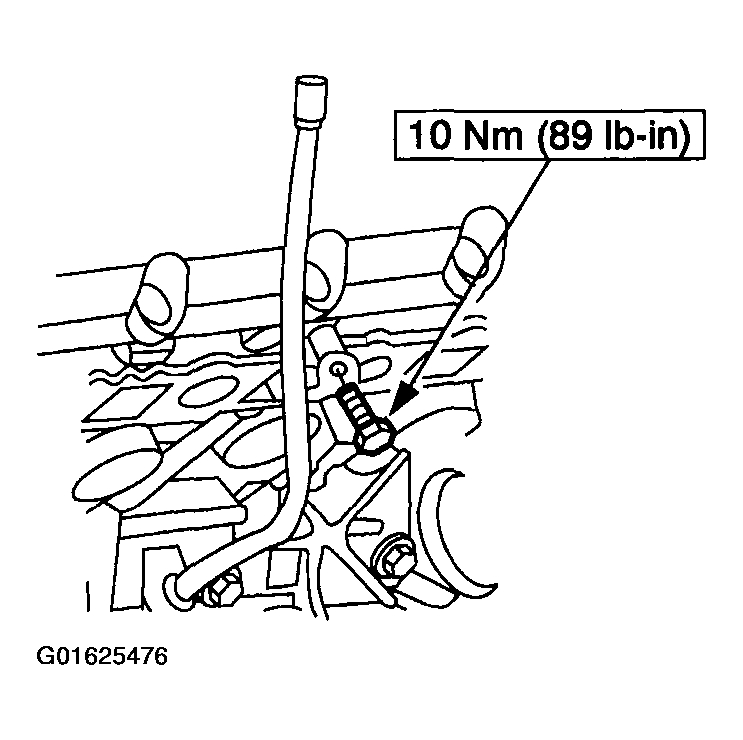

    Fig 2: Identifying Tightening Torque Of Oil Level Indicator Tube Bolt
    G01625476Courtesy of FORD MOTOR CO.
