Pinpoint Test B: DTC C1446 Brake Light Switch Plausibility Error

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

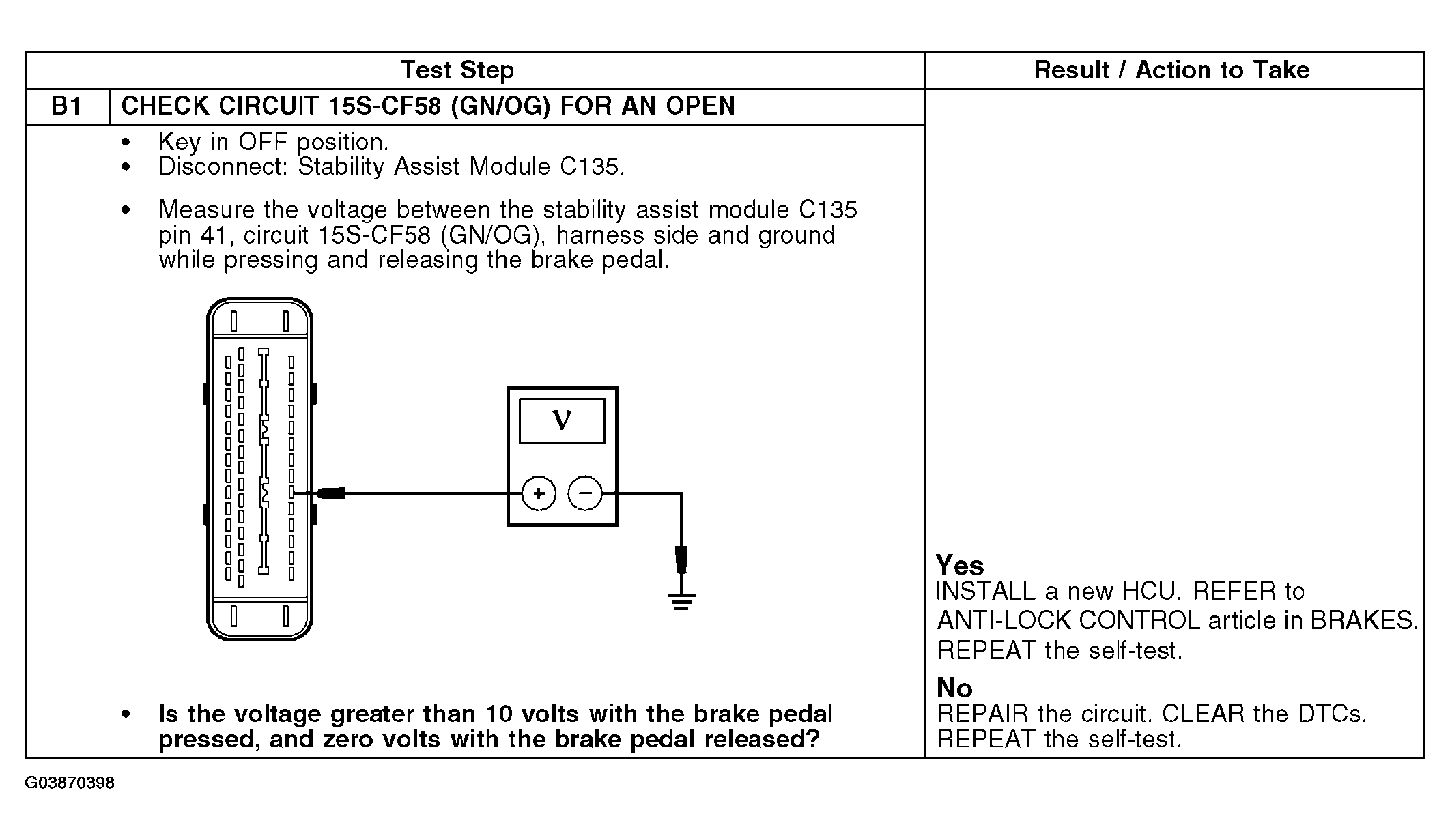

Fig 1: Pinpoint Test B: DTC C1446 Brake Light Switch Plausibility Error (Step B1)
G03870398Courtesy of FORD MOTOR CO.
