Symptom Chart

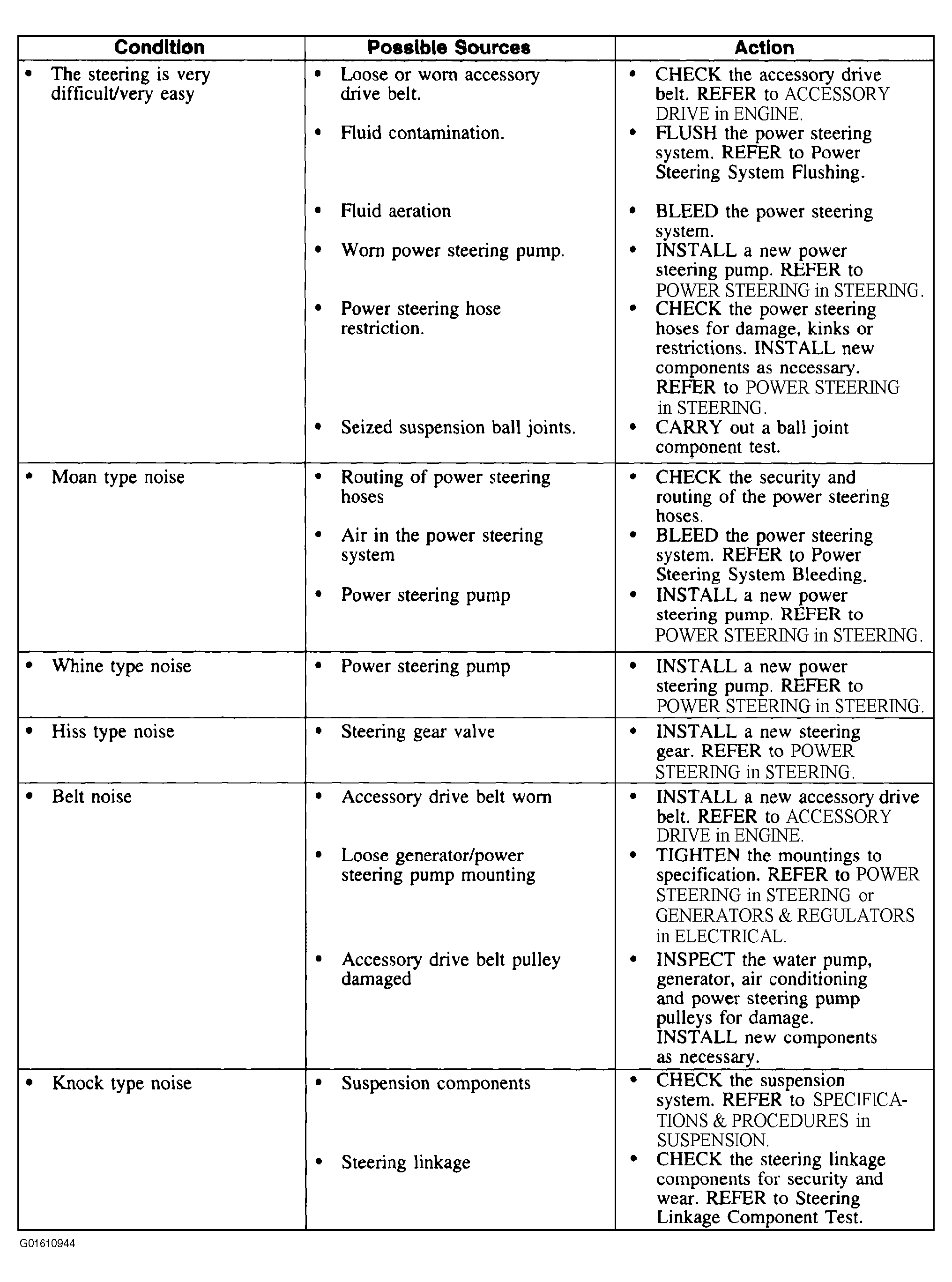

Fig 1: Steering System Symptom Chart (1 Of 2)

G01610944

Courtesy of FORD MOTOR CO.

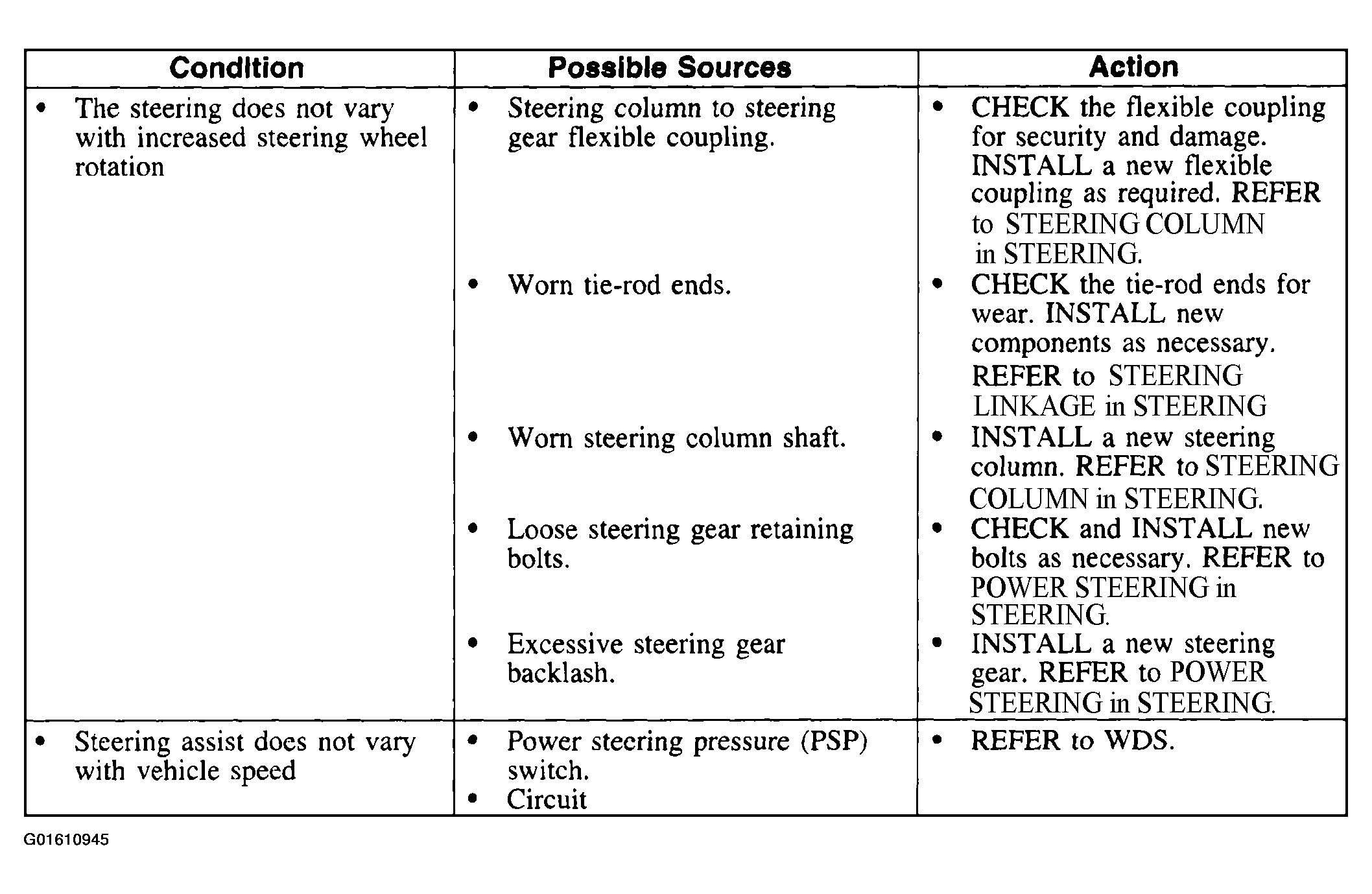

Fig 2: Steering System Symptom Chart (2 Of 2)

G01610945

Courtesy of FORD MOTOR CO.
