Brake Shift Interlock Actuator: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the shift interlock actuator.
    1. Install the push rod.
    2. Position the knob.
    3. Install the bolt.

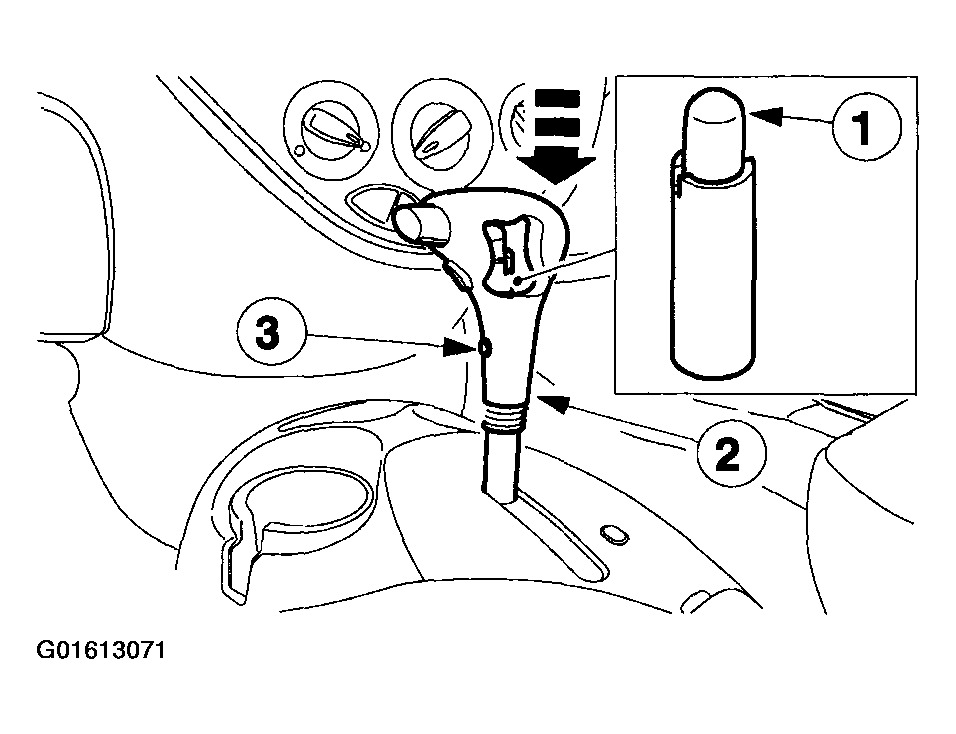

    Fig 1: Installing Shift Interlock Actuator
    G01613071Courtesy of FORD MOTOR CO.
  2. Connect the O/D switch electrical connector (selector lever assembly removed shown).

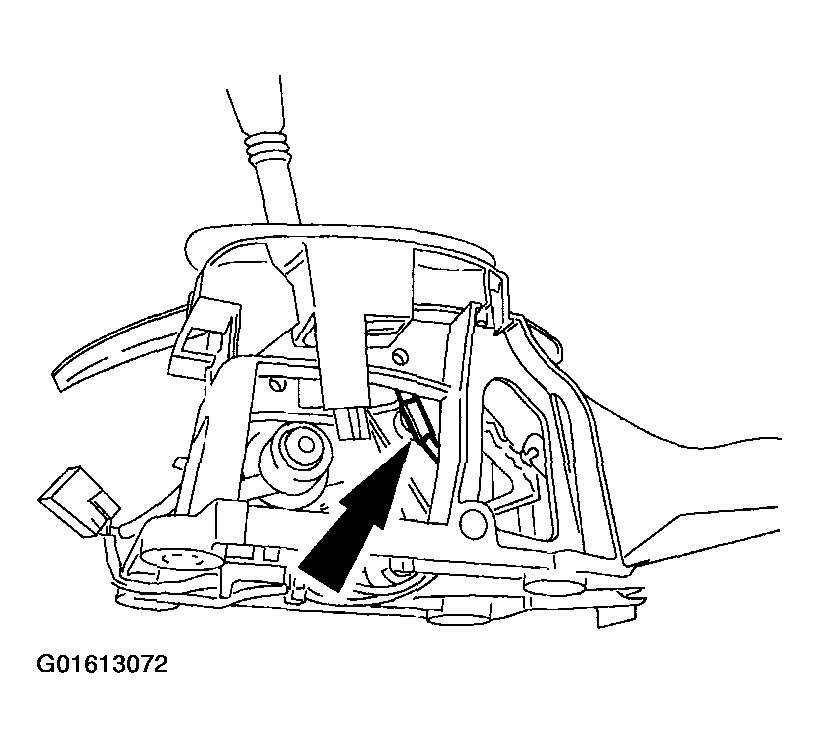

    Fig 2: Connecting O/D Switch Electrical Connector
    G01613072Courtesy of FORD MOTOR CO.
  3. Install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
