Section 4 (Automatic Transmission)
>>
Specifications
>>
Direct Clutch Hub Shim Selection Chart
Direct Clutch Hub Shim Selection Chart
WARNING:
This page is about a different variant/trim than selected.

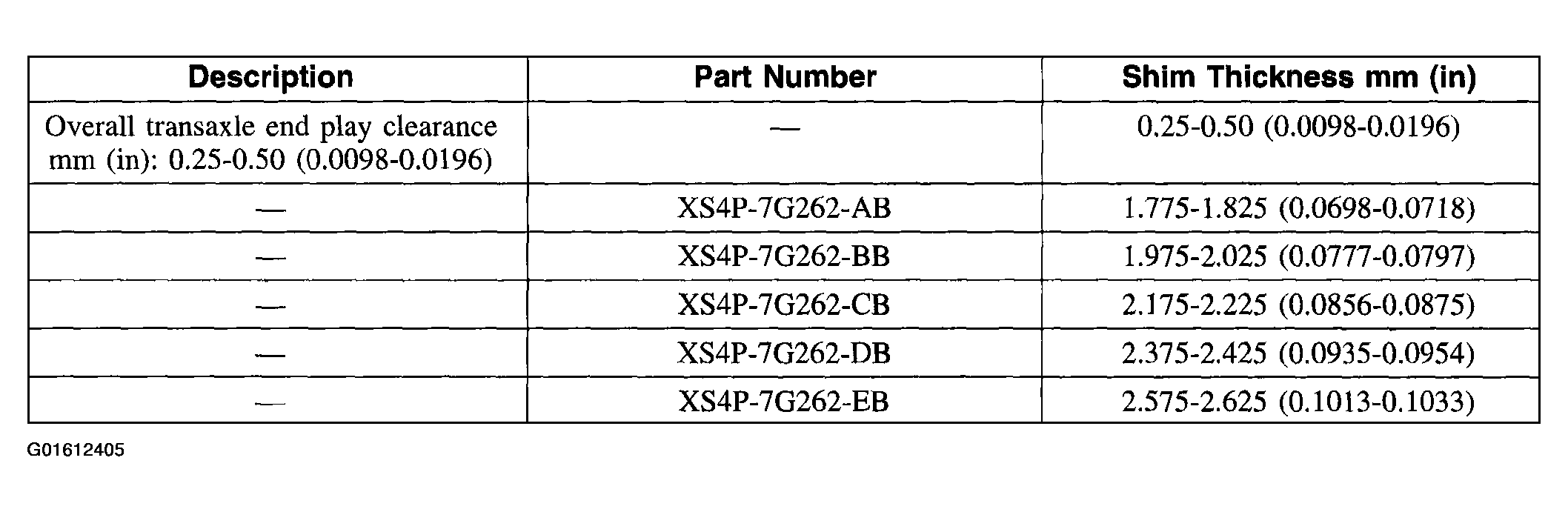

Fig 1: Direct Clutch Hub Shim Selection Chart
Courtesy of FORD MOTOR CO.
