Selector Interlock Mechanism
WARNING: This page is about a different variant/trim than selected.

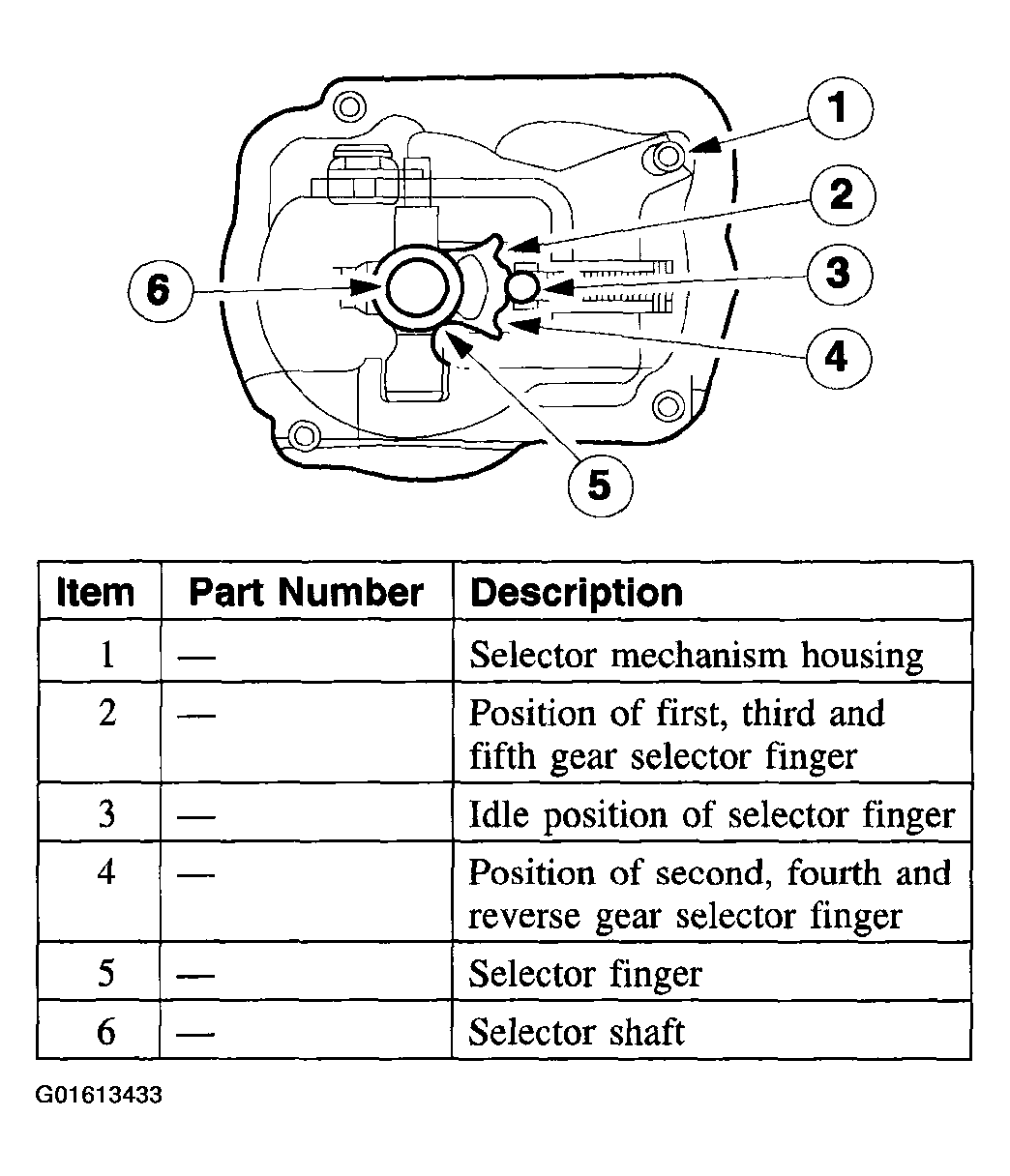

The selector interlock mechanism and the selector finger are mounted on a sleeve in the selector mechanism housing and keep the selected gear engaged with the aid of a spring-loaded ball until another gear is selected.
The selector interlock mechanism has three positions.
The reversing lamp switch is mounted on the side of the selector mechanism housing.
