Pinpoint Test C: A Single Mirror Does Not Function With Switch Logic

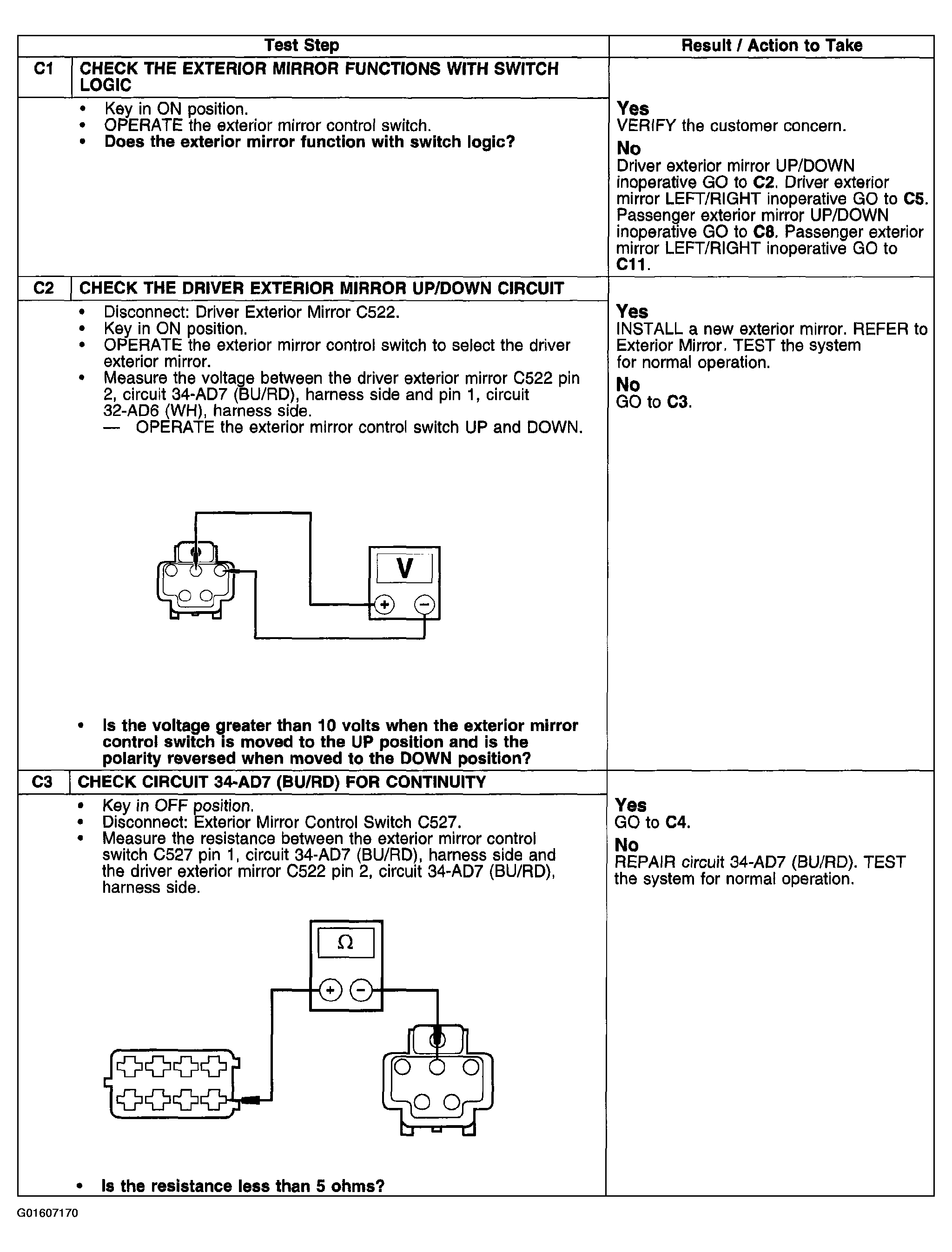

Fig 1: Pinpoint Test C: Single Mirror Does Not Function With Switch Logic (C1-C3)

Courtesy of FORD MOTOR CO.

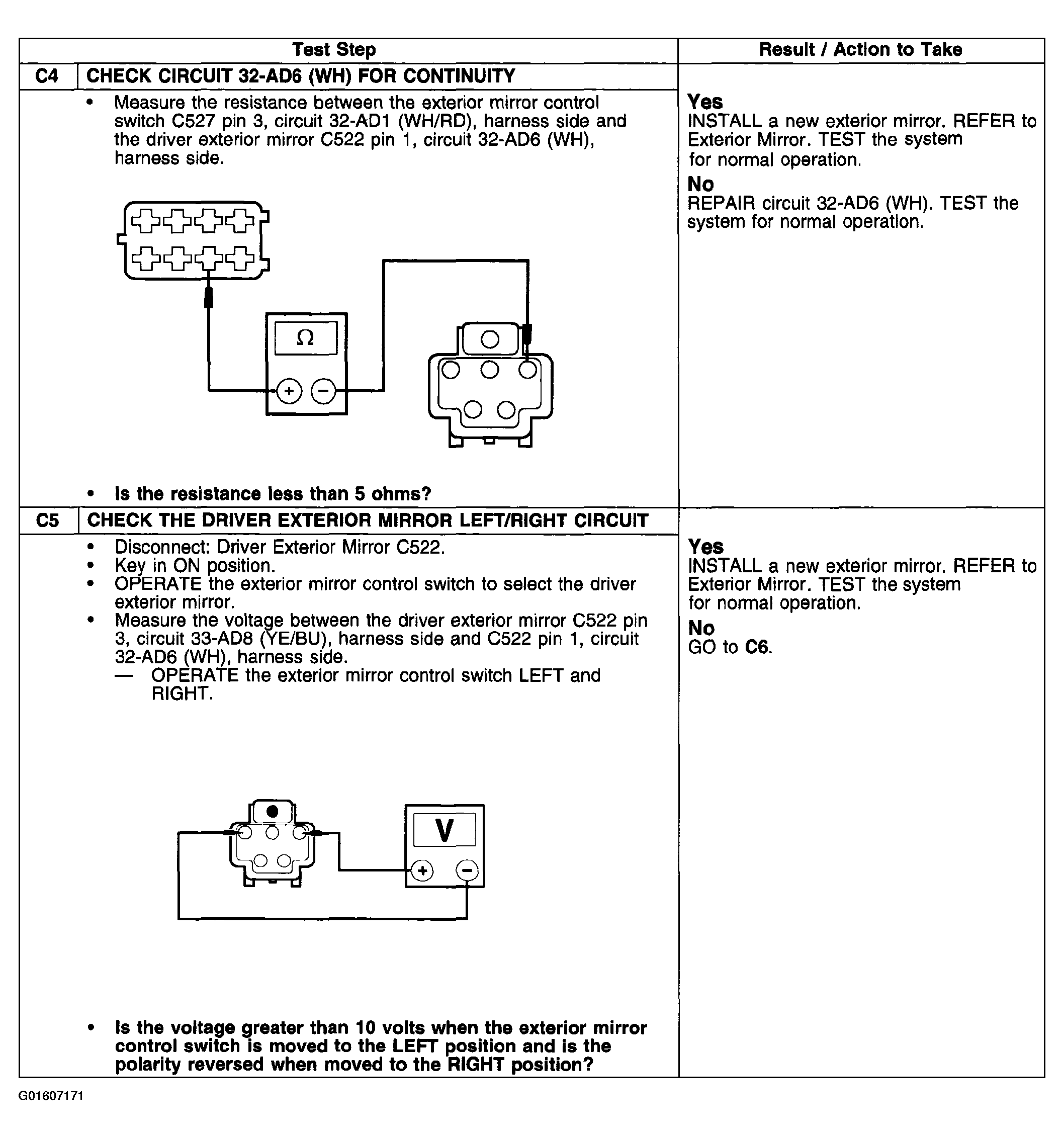

Fig 2: Pinpoint Test C: Single Mirror Does Not Function With Switch Logic (C4-C5)

Courtesy of FORD MOTOR CO.

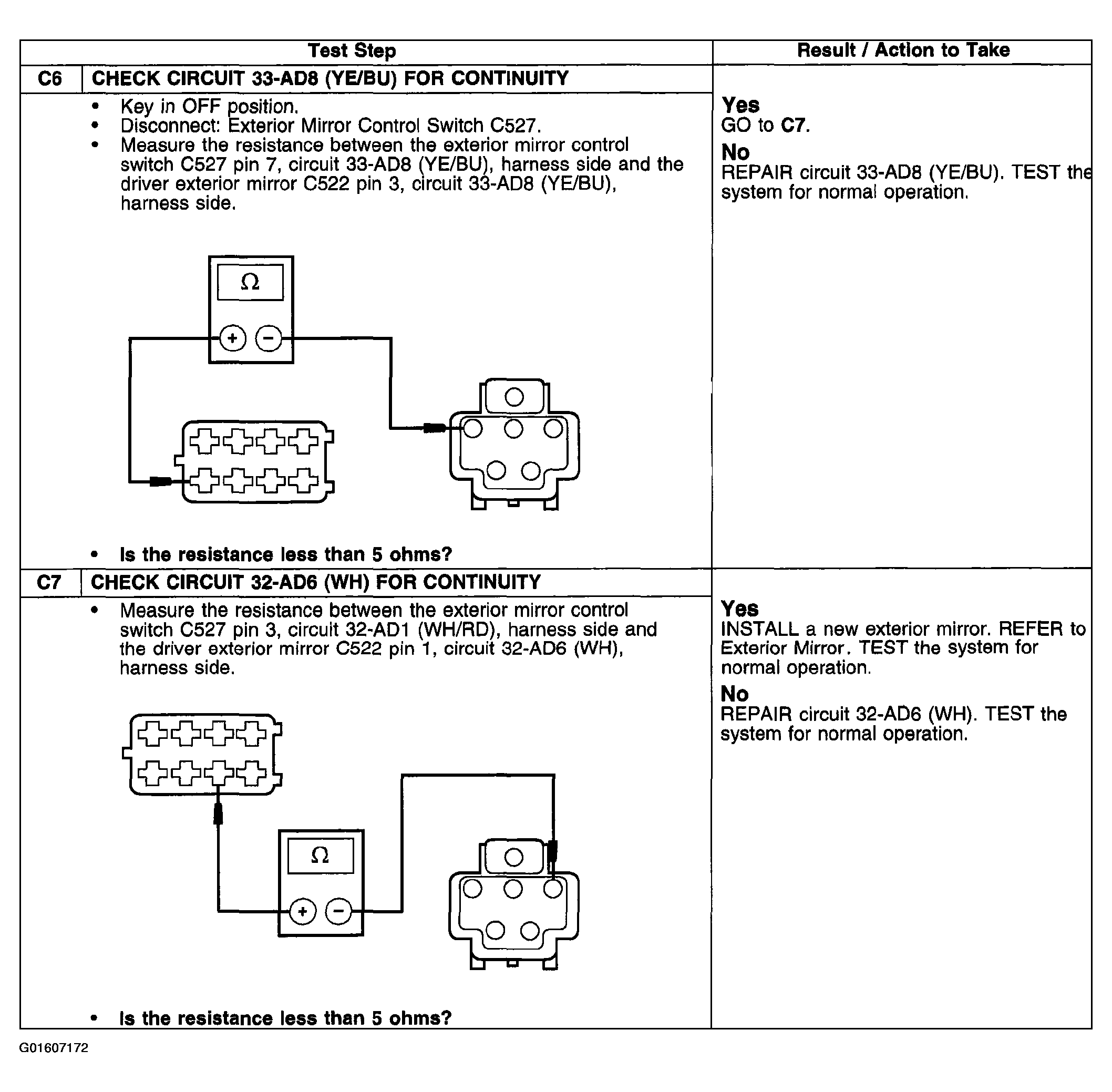

Fig 3: Pinpoint Test C: Single Mirror Does Not Function With Switch Logic (C6-C7)

Courtesy of FORD MOTOR CO.

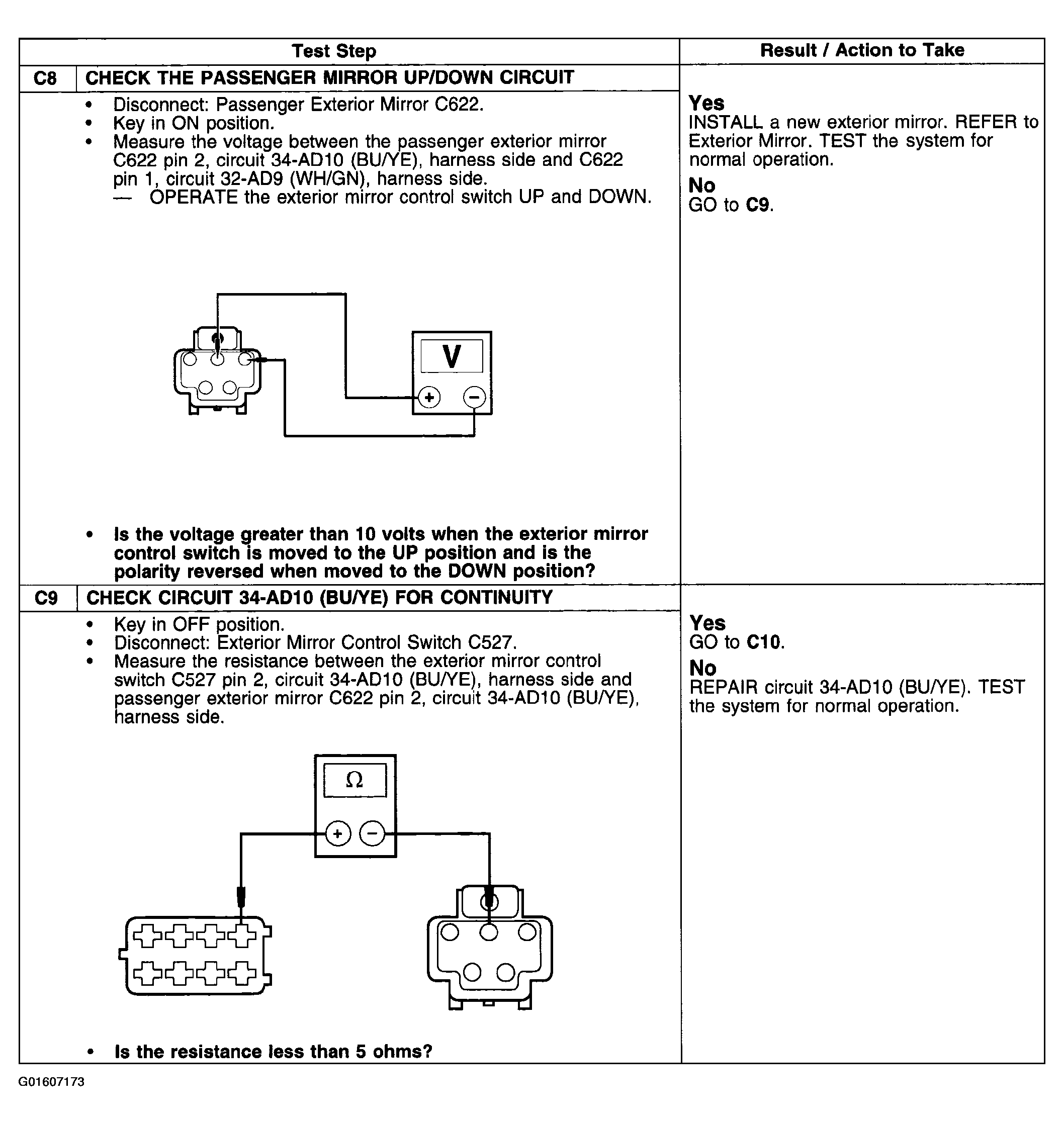

Fig 4: Pinpoint Test C: Single Mirror Does Not Function With Switch Logic (C8-C9)

Courtesy of FORD MOTOR CO.

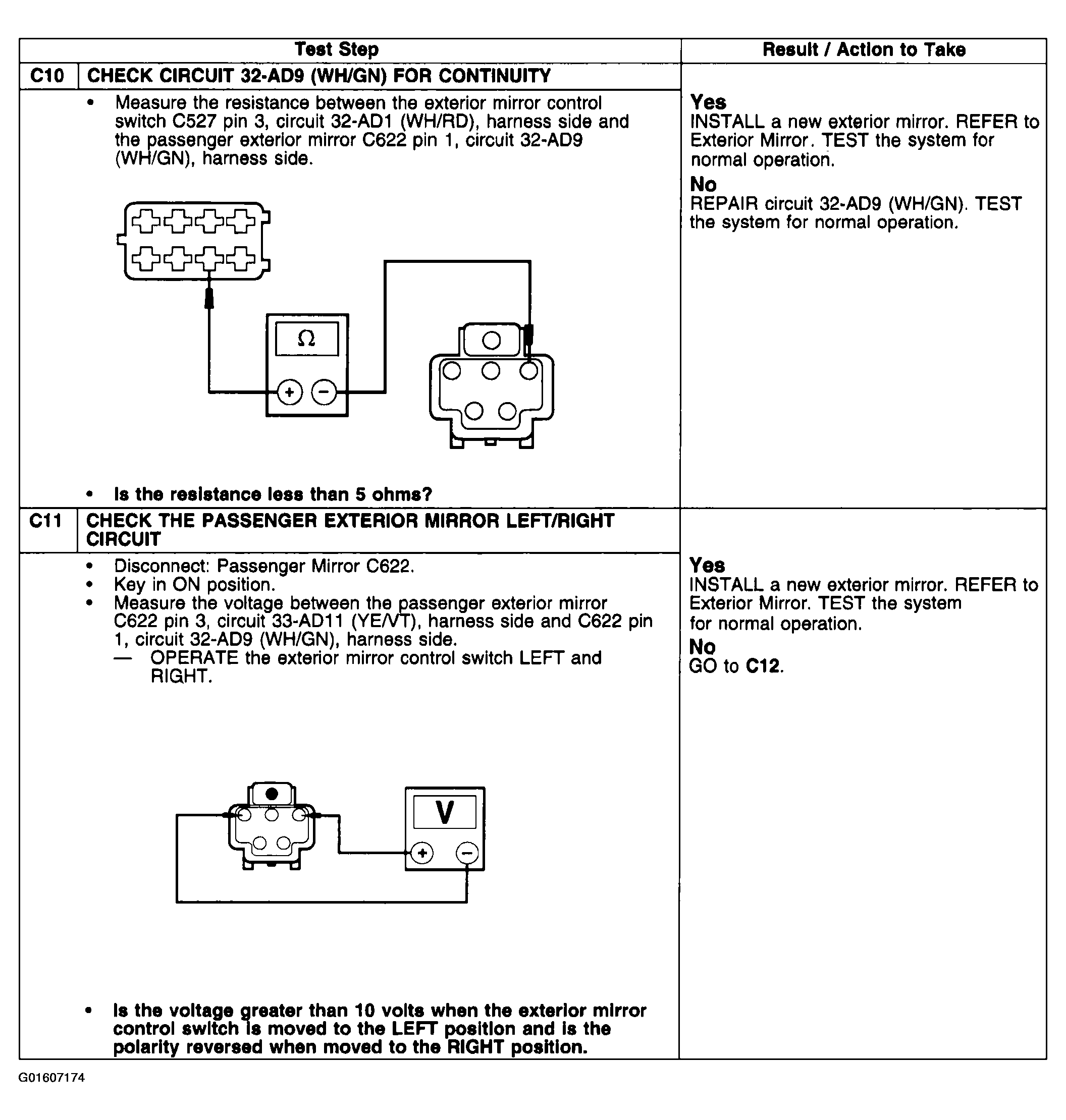

Fig 5: Pinpoint Test C: Single Mirror Does Not Function With Switch Logic (C10-C11)

Courtesy of FORD MOTOR CO.

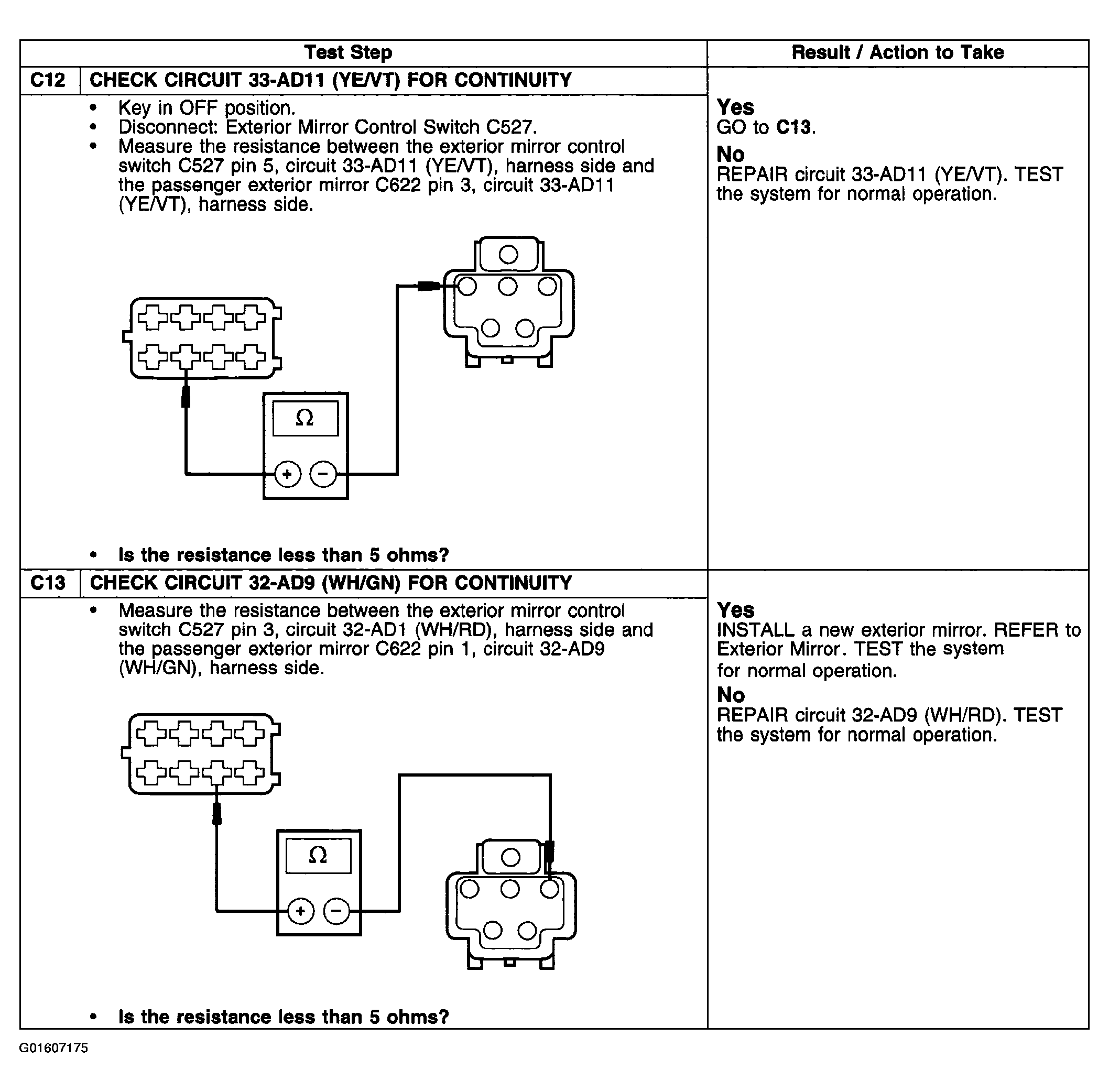

Fig 6: Pinpoint Test C: Single Mirror Does Not Function With Switch Logic (C12-C13)

Courtesy of FORD MOTOR CO.
