Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY AND CHARGING SYSTEM .
  2. Press in on the glove compartment at the points shown and lower the glove compartment.
    Fig 1: Pressing Glove Compartment Points And Lower Glove Compartment
    G01273985Courtesy of FORD MOTOR CO.
  3. Remove the 4WD control module.
    1. Disconnect the 4WD control module electrical connectors.
    2. Remove the two screws.

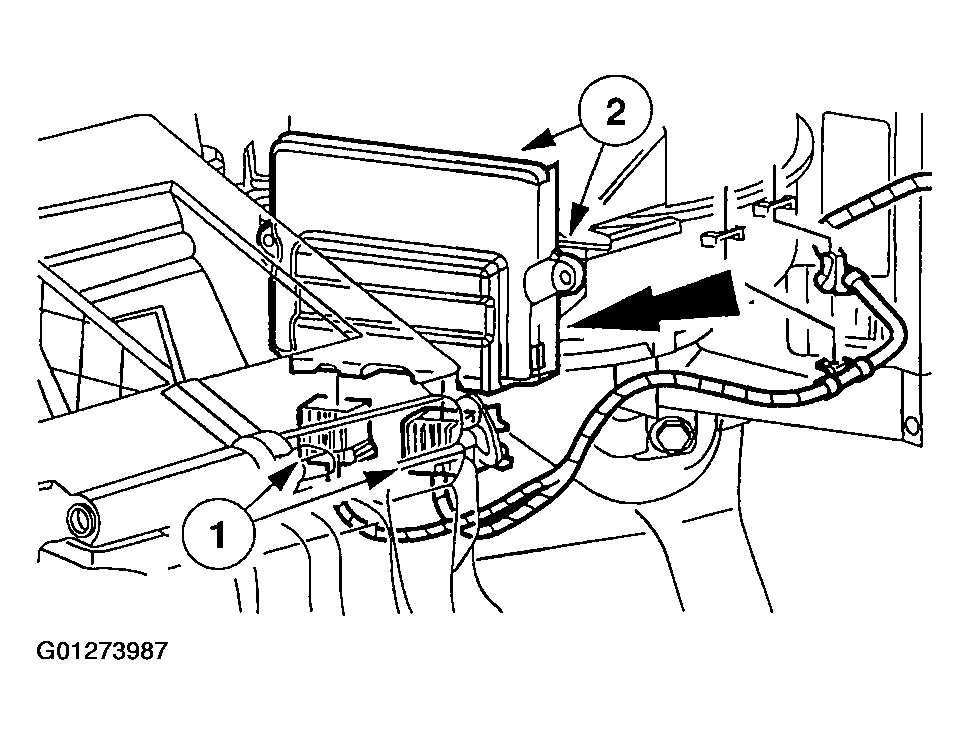

    Fig 2: Removing 4WD Control Module
    G01273987Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
