4WD Control Module C281b

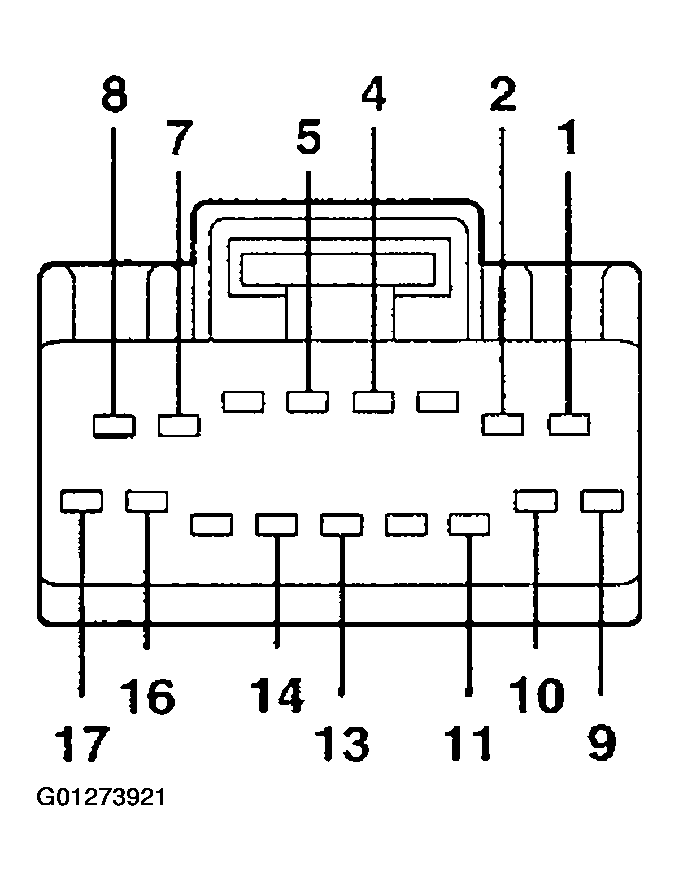

Fig 1: Identifying 4WD Control Module C281B
G01273921Courtesy of FORD MOTOR CO.

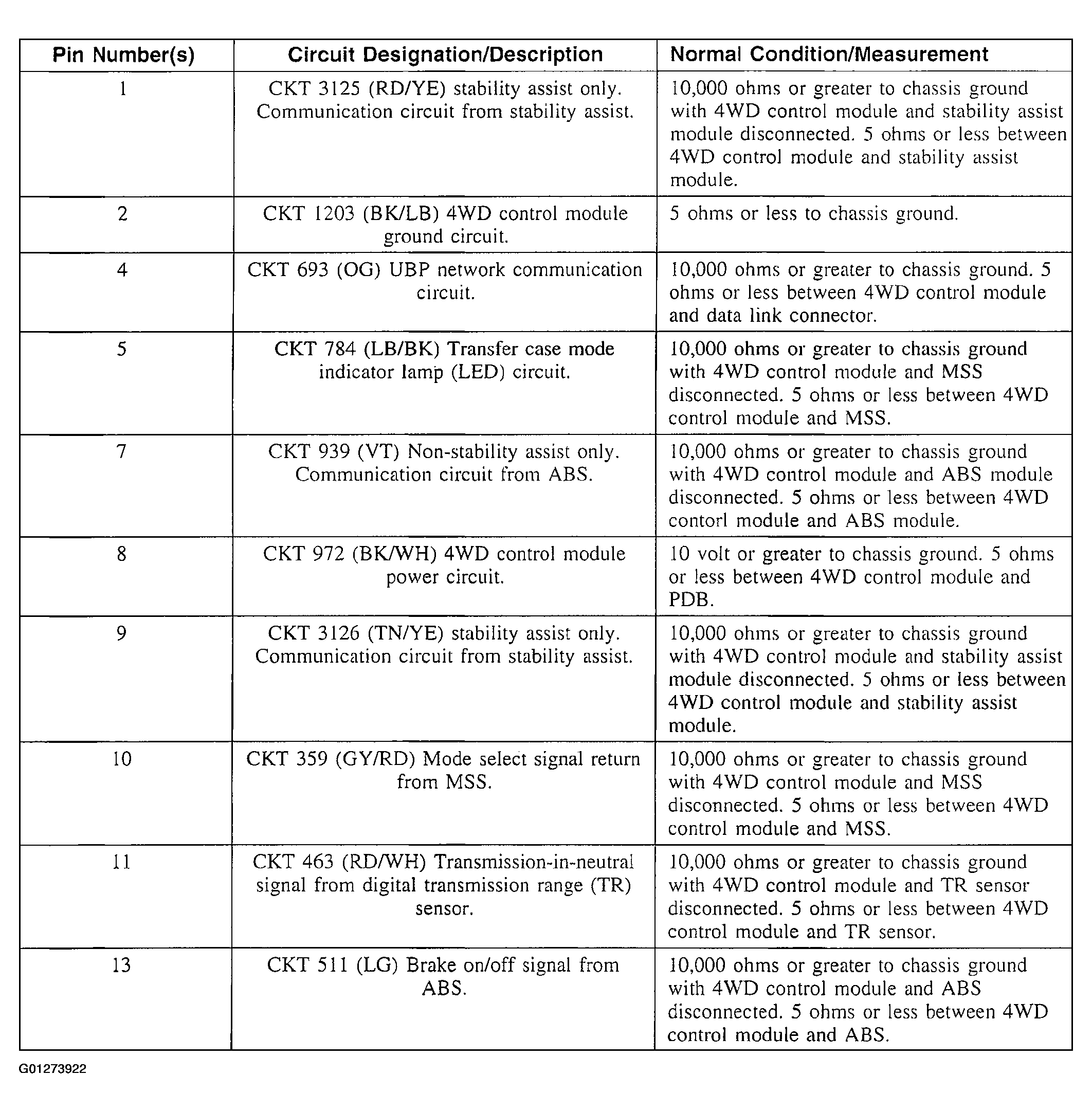

Fig 2: Description Table (1 Of 2)
G01273922Courtesy of FORD MOTOR CO.

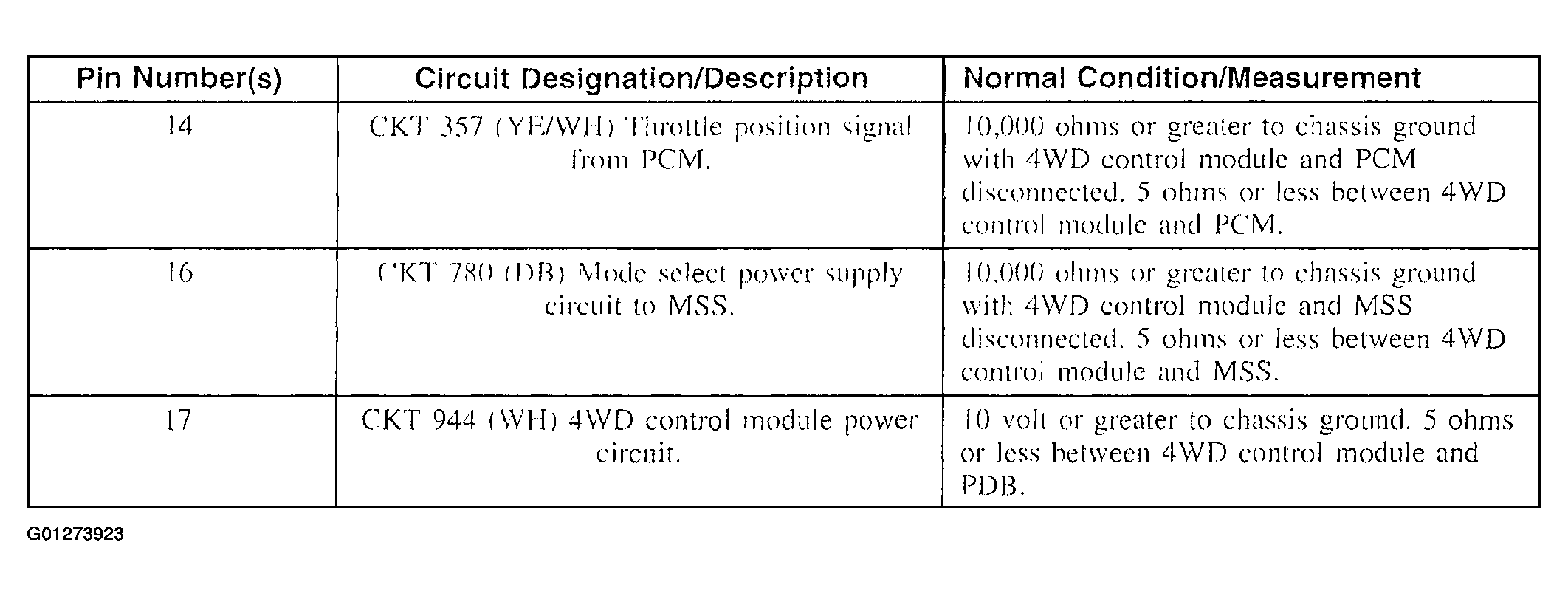

Fig 3: Description Table (2 Of 2)
G01273923Courtesy of FORD MOTOR CO.
