4WD Control Module C281a

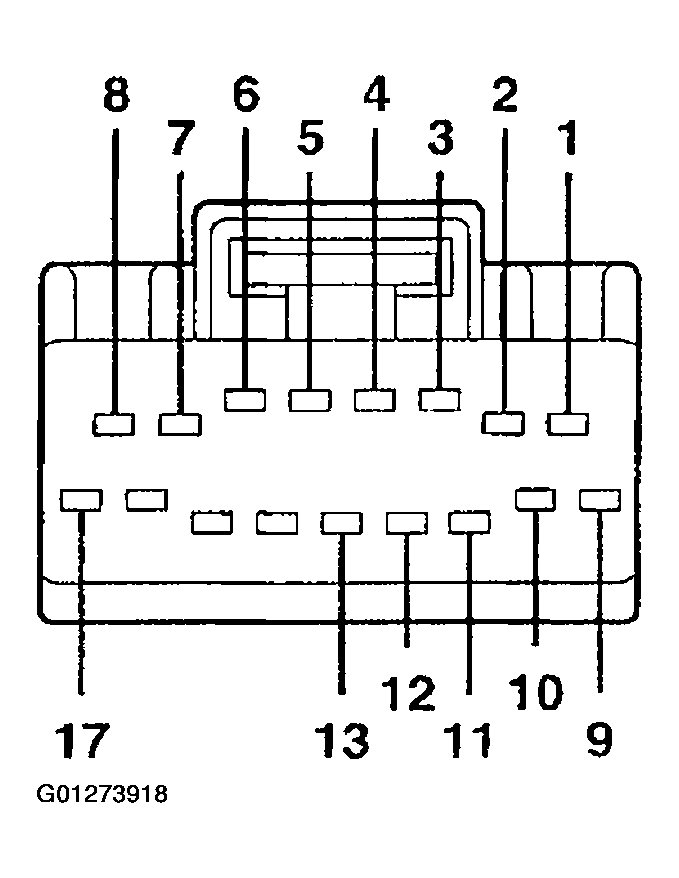

Fig 1: Identifying 4WD Control Module C281A
G01273918Courtesy of FORD MOTOR CO.

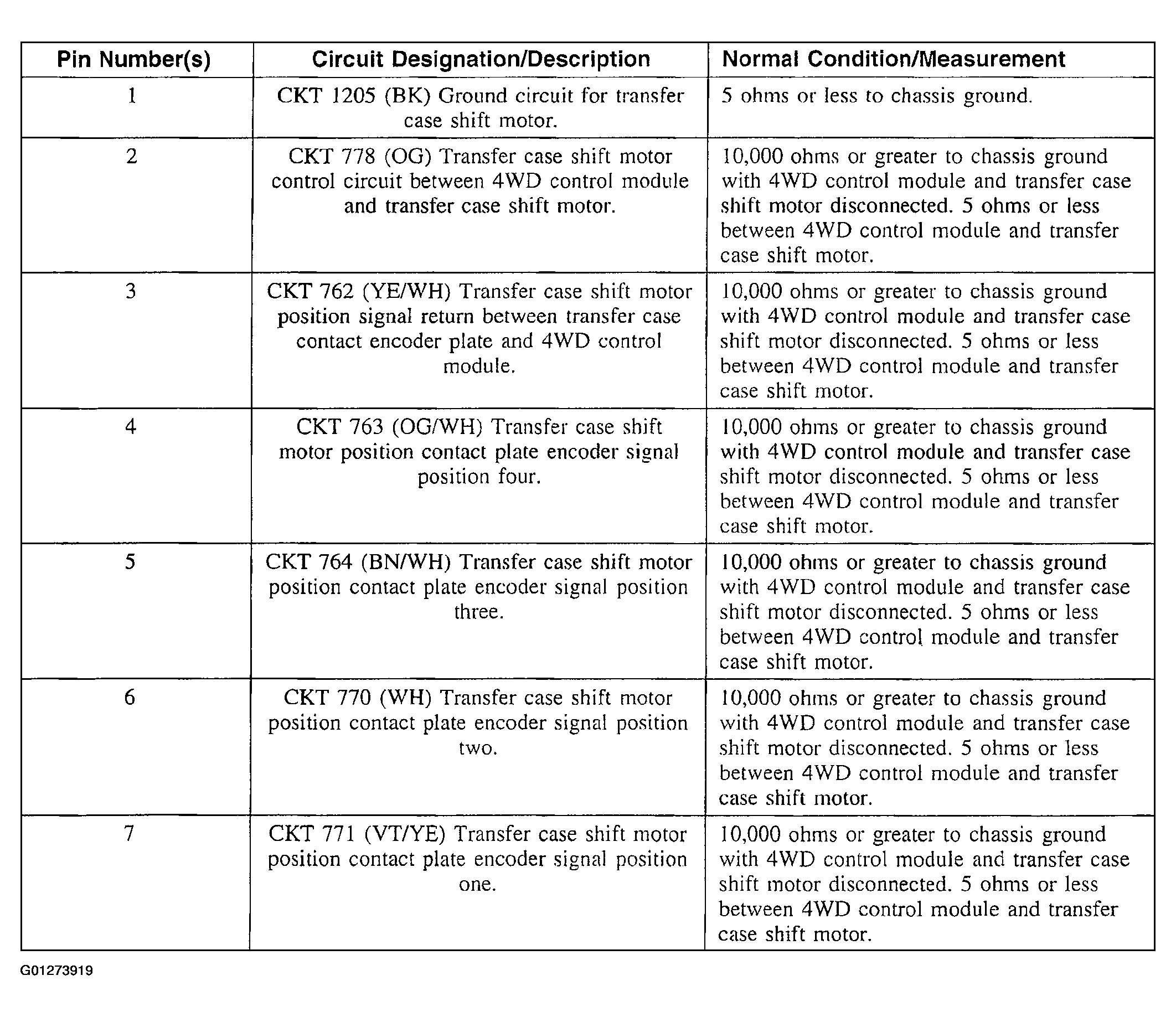

Fig 2: Description Table (1 Of 2)
G01273919Courtesy of FORD MOTOR CO.

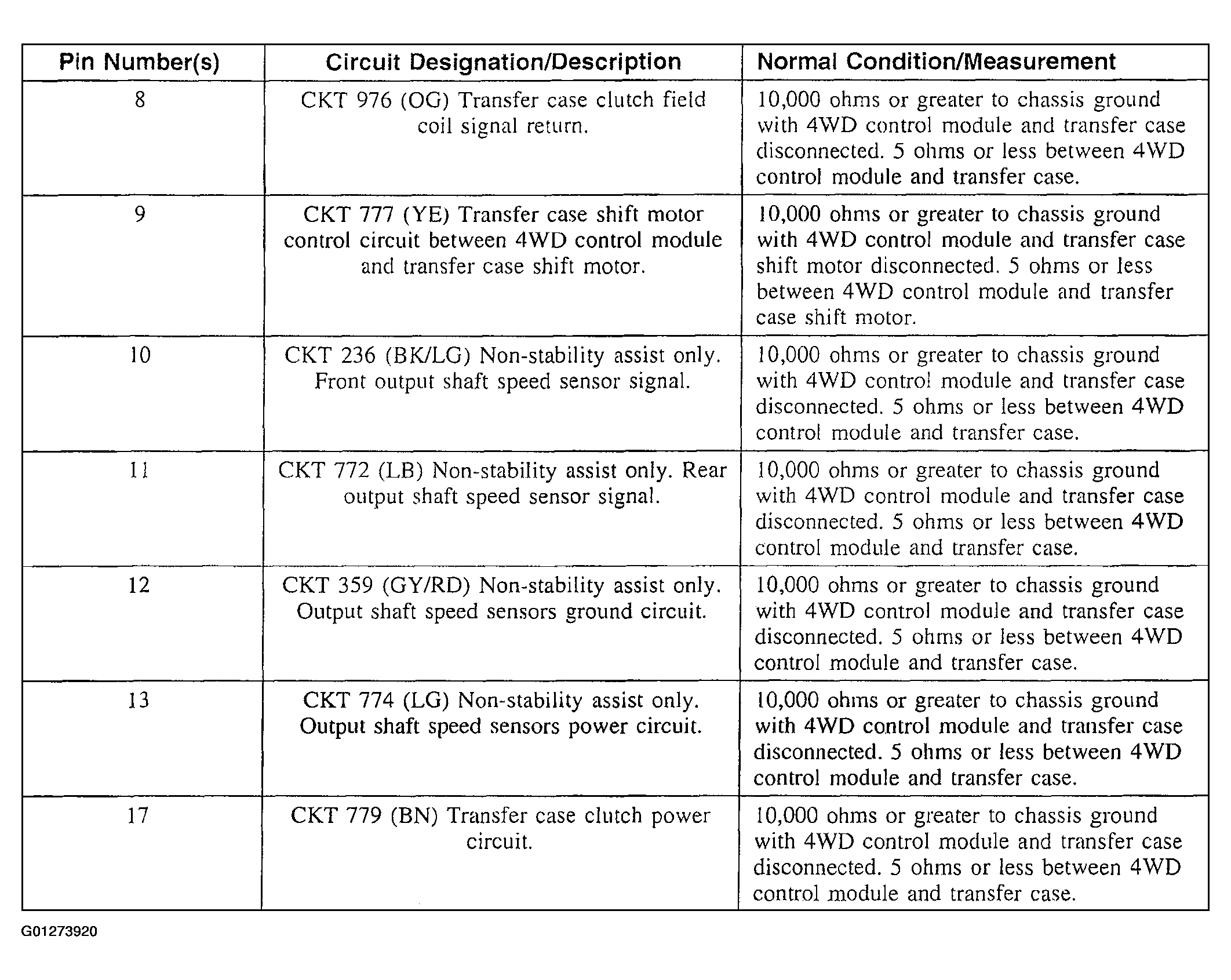

Fig 3: Description Table (2 Of 2)
G01273920Courtesy of FORD MOTOR CO.
