Pinpoint Test B: DTC B1483 - Brake Pedal Input Circuit Failure: Testing

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

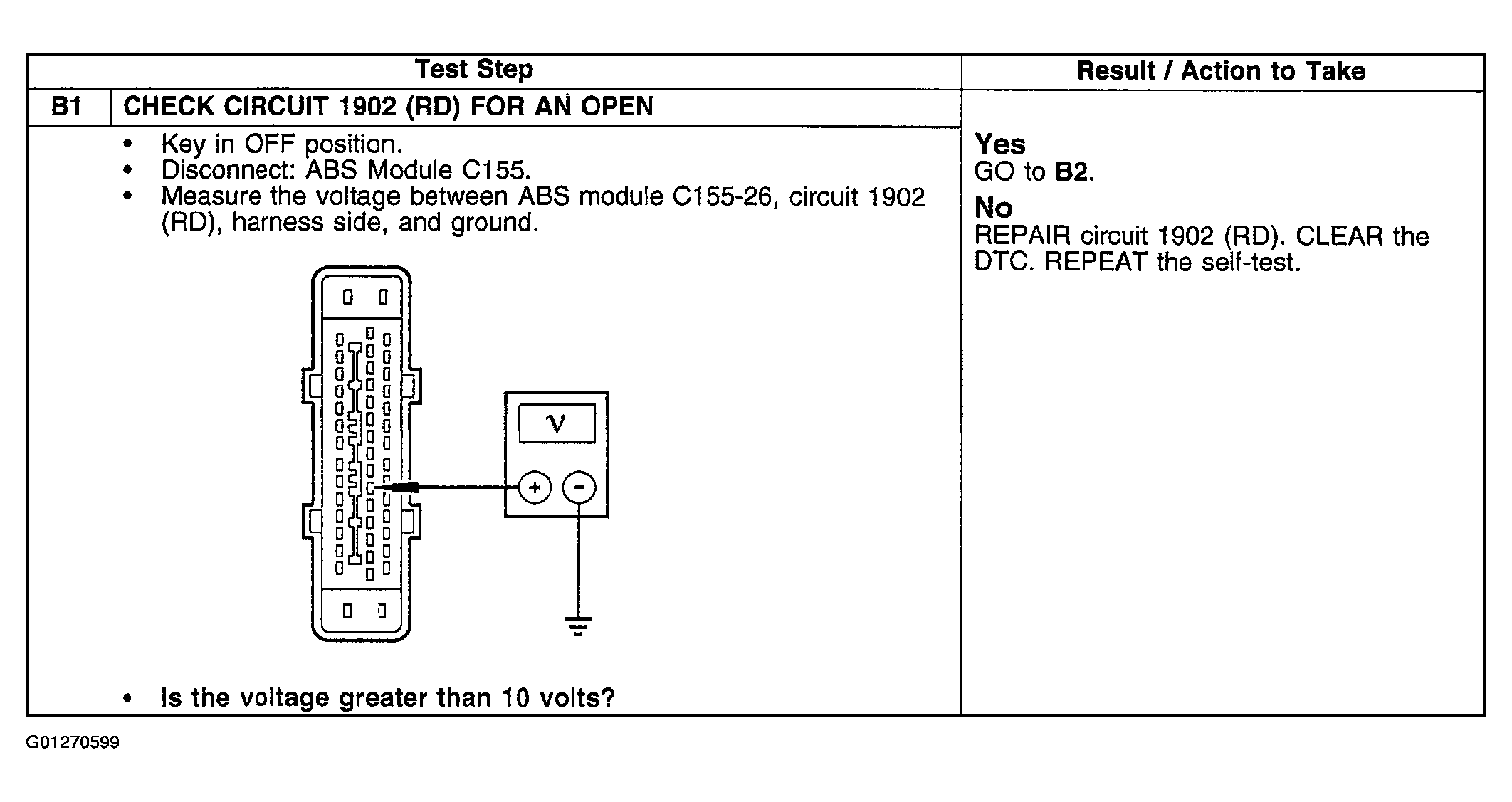

Fig 1: Pinpoint Test B: DTC B1483 - Brake Pedal Input Circuit Failure (B1)

Courtesy of FORD MOTOR CO.

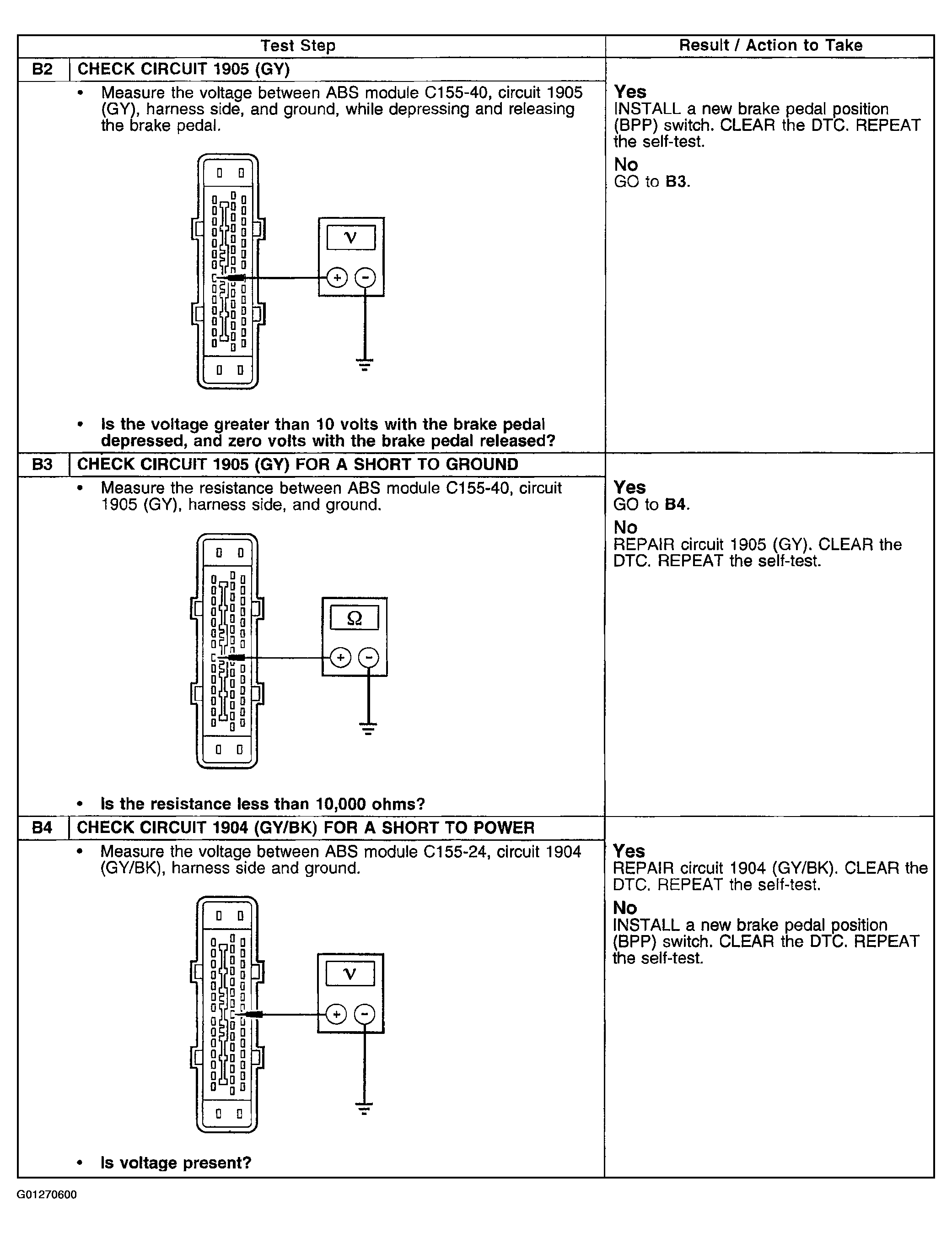

Fig 2: Pinpoint Test B: DTC B1483 - Brake Pedal Input Circuit Failure (B2 - B4)

Courtesy of FORD MOTOR CO.
