Brake Pressure Switch C1025 (ABS Only)

Fig 1: Identifying Brake Pressure Switch C1025 (ABS Only) Connector Pin(s)
G01270595Courtesy of FORD MOTOR CO.

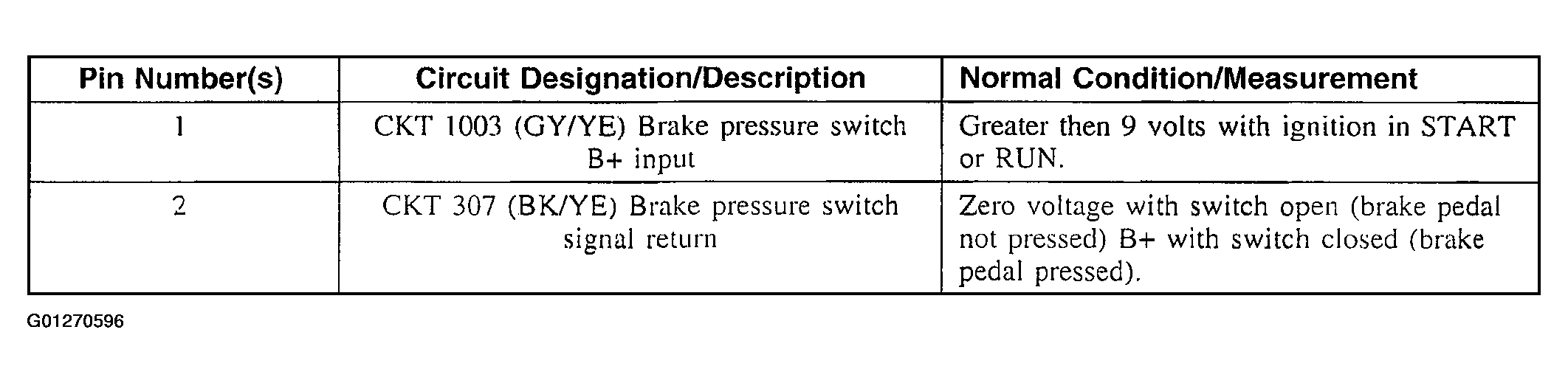

Fig 2: Identifying Brake Pressure Switch C1025 (ABS Only) Connector Pin Reference Table
G01270596Courtesy of FORD MOTOR CO.
