DATC Module C228a

Fig 1: Identifying DATC Module C228a Terminal View (1 Of 2)

G01271238

Courtesy of FORD MOTOR CO.

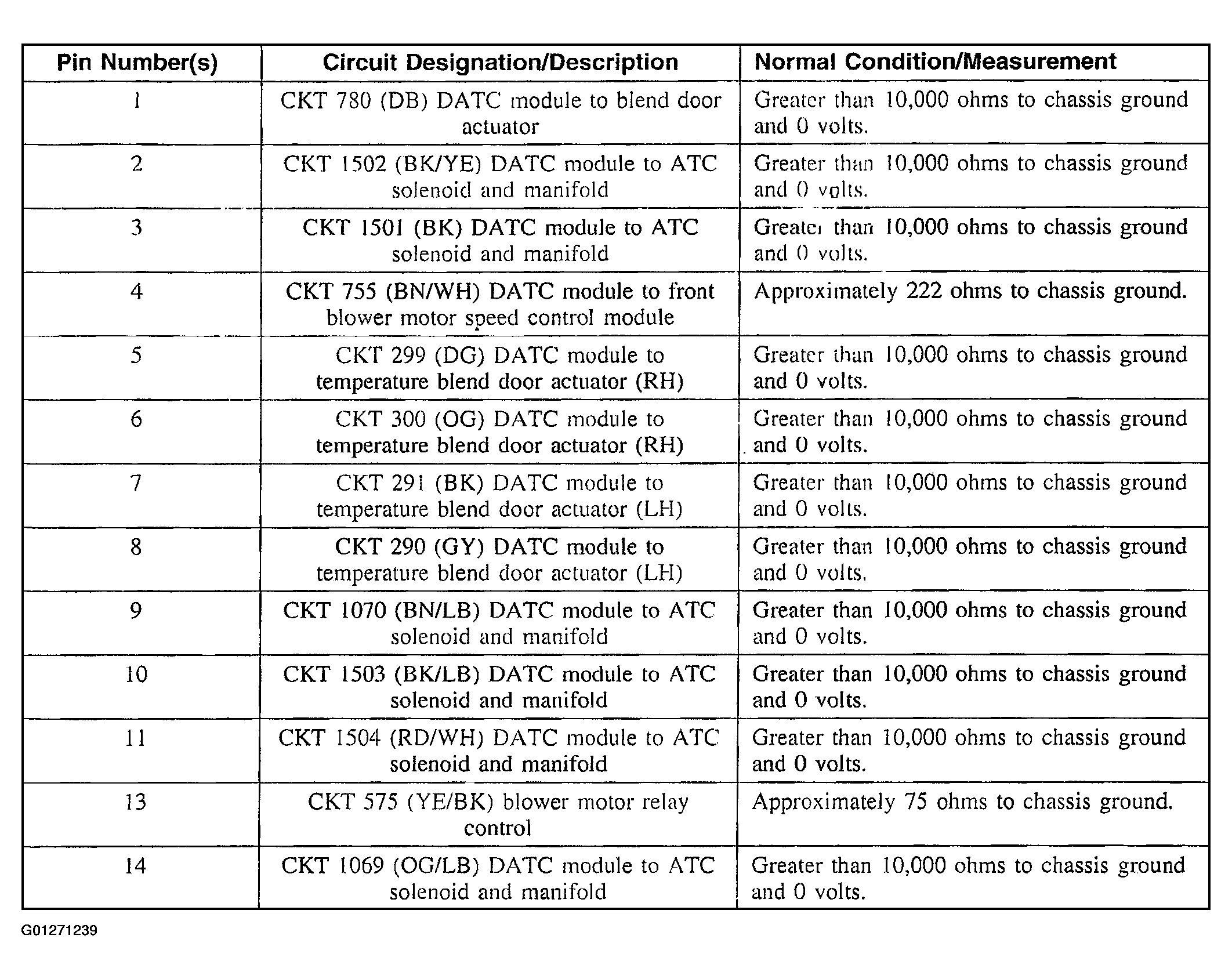

Fig 2: Identifying DATC Module C228a Terminal View (2 Of 2)

G01271239

Courtesy of FORD MOTOR CO.
