Solenoid Operation Chart

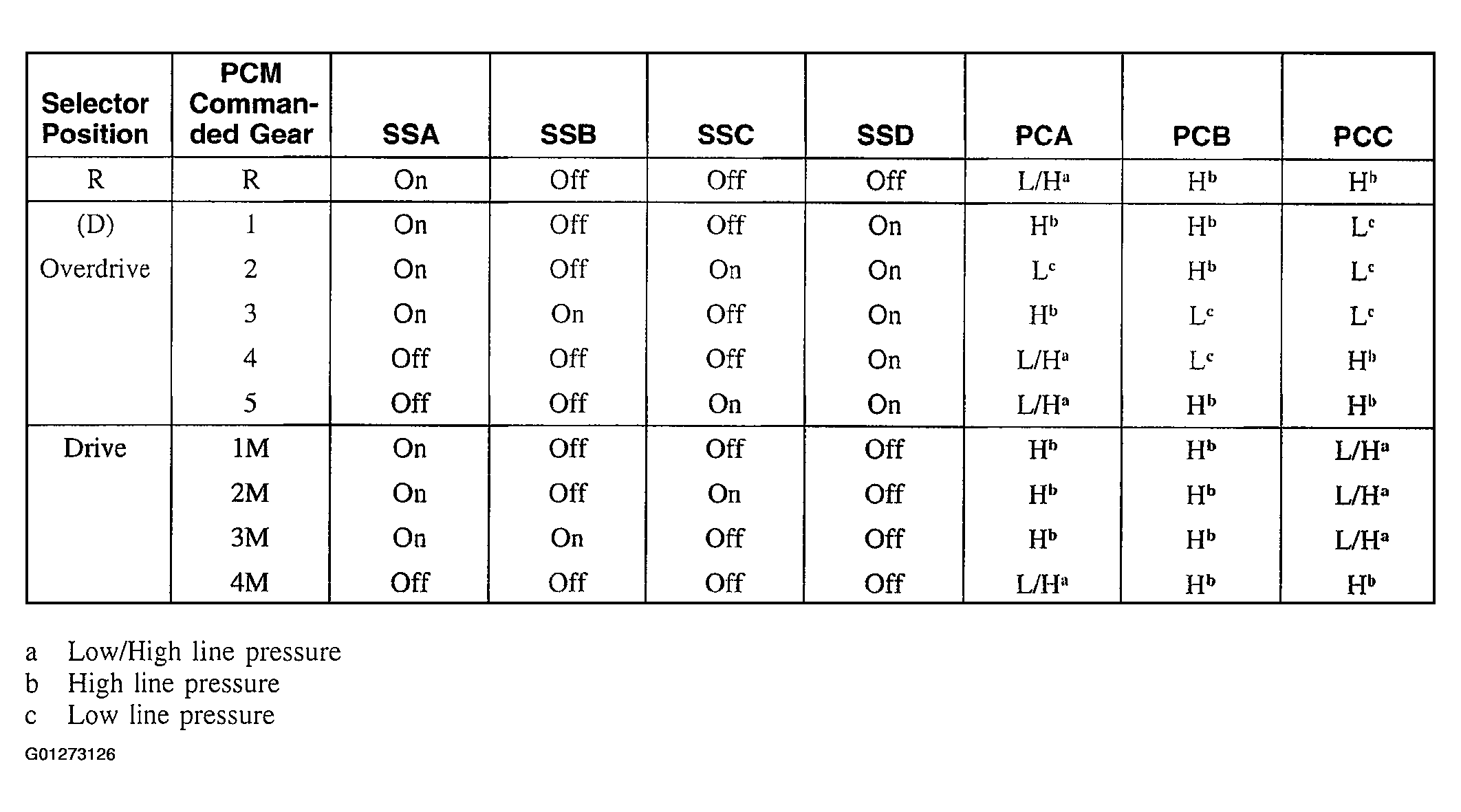

Fig 1: Solenoid Operation Specification Chart

G01273126

Courtesy of FORD MOTOR CO.
