Vacuum Connector End View - Electronic Automatic Temperature Control

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

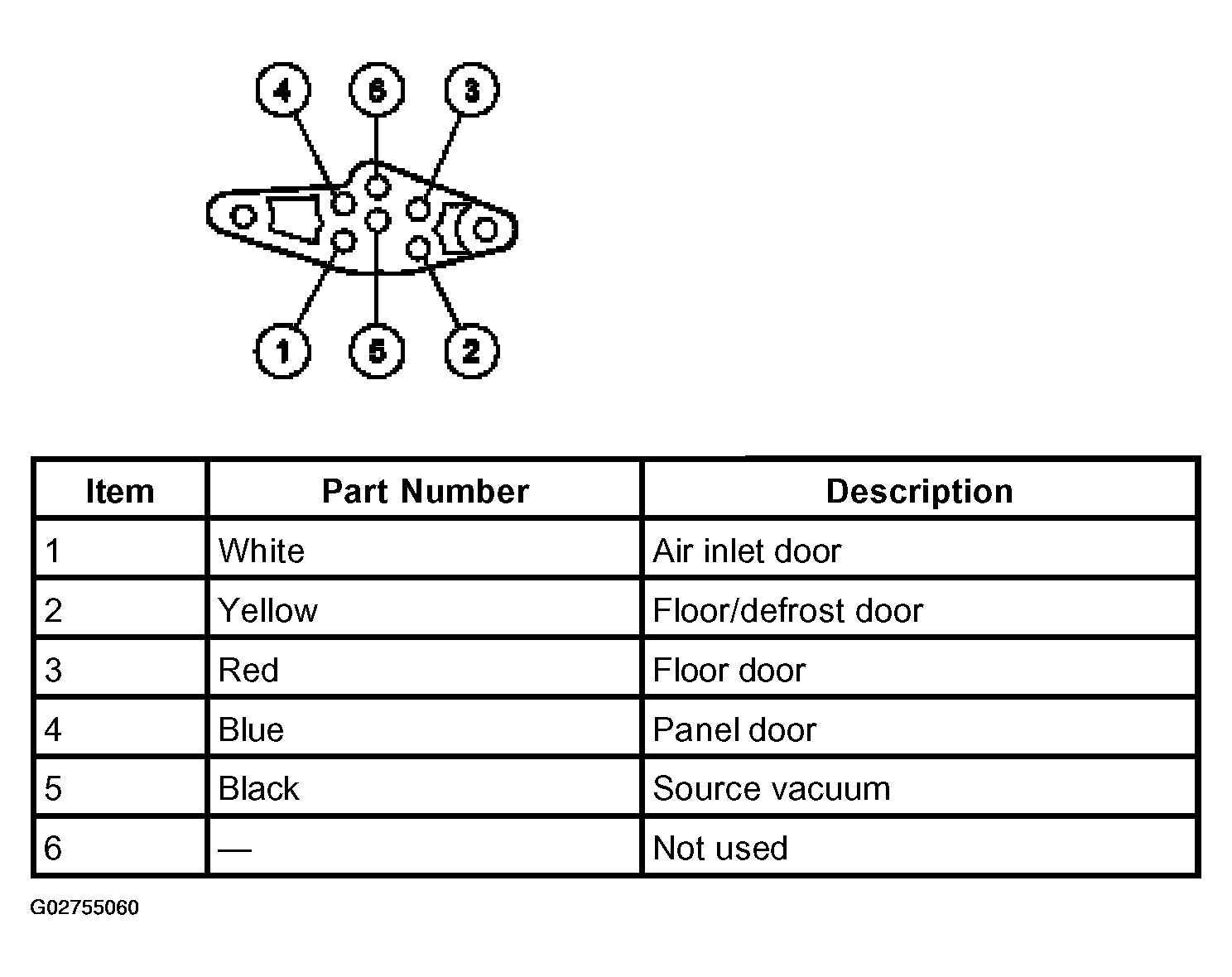

Fig 1: Identifying Vacuum Connectors - Electronic Automatic Temperature Control
G02755060Courtesy of FORD MOTOR CO.
