Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the finish panel.

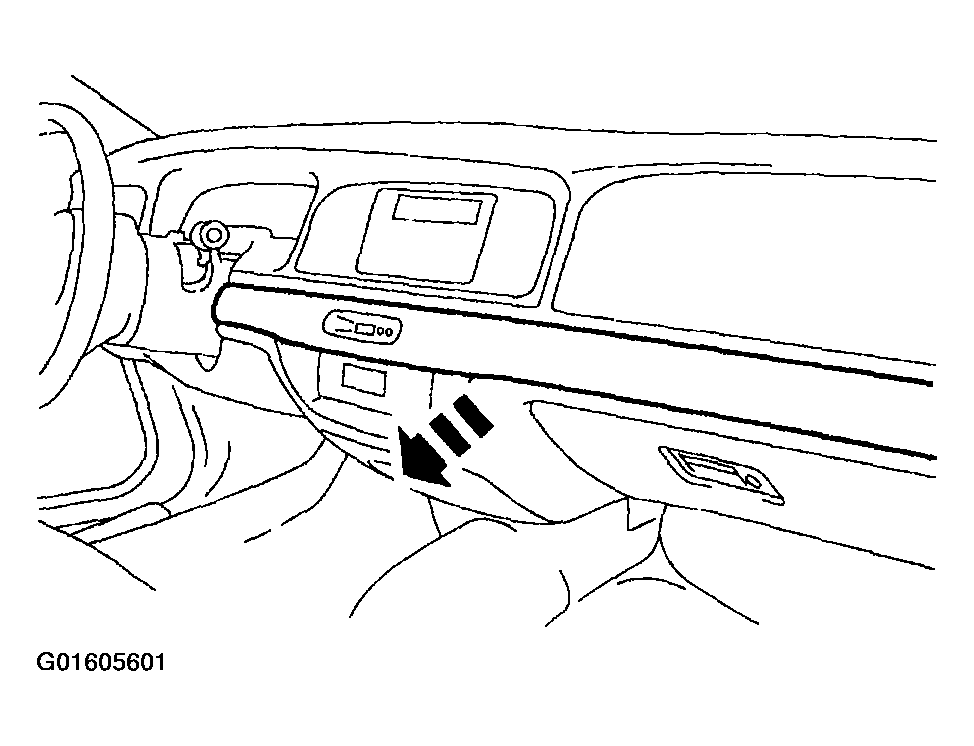

    Fig 1: Removing Finish Panel
    G01605601Courtesy of FORD MOTOR CO.
  2. Disconnect the connector.

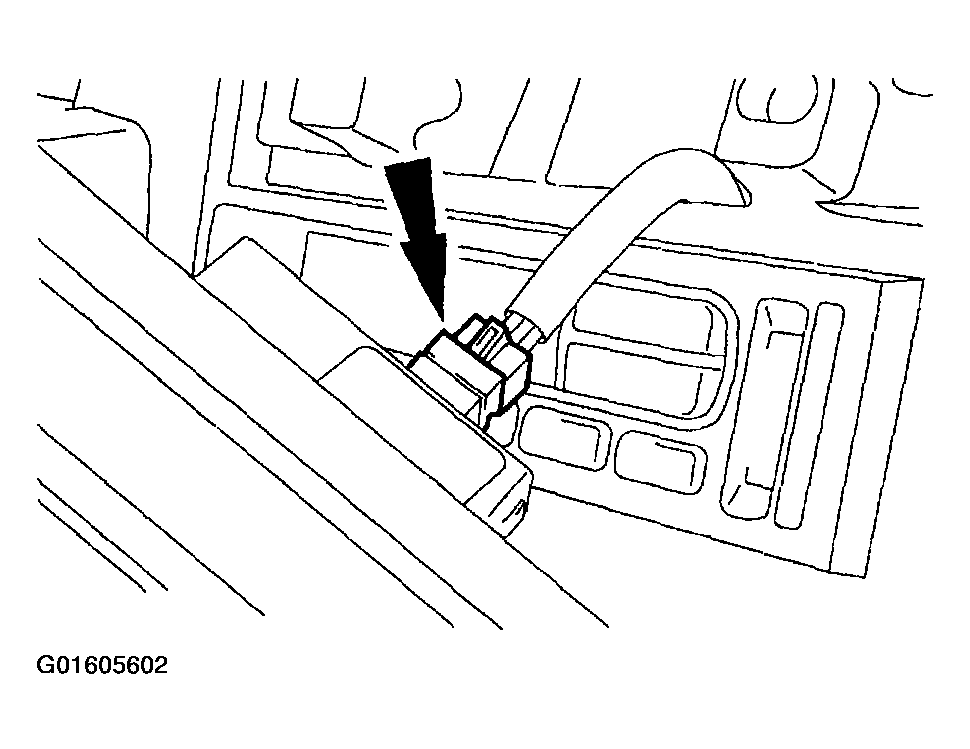

    Fig 2: Disconnecting Connector
    G01605602Courtesy of FORD MOTOR CO.
  3. Remove the screws and pull the electronic automatic temperature control (EATC) module from the instrument panel.

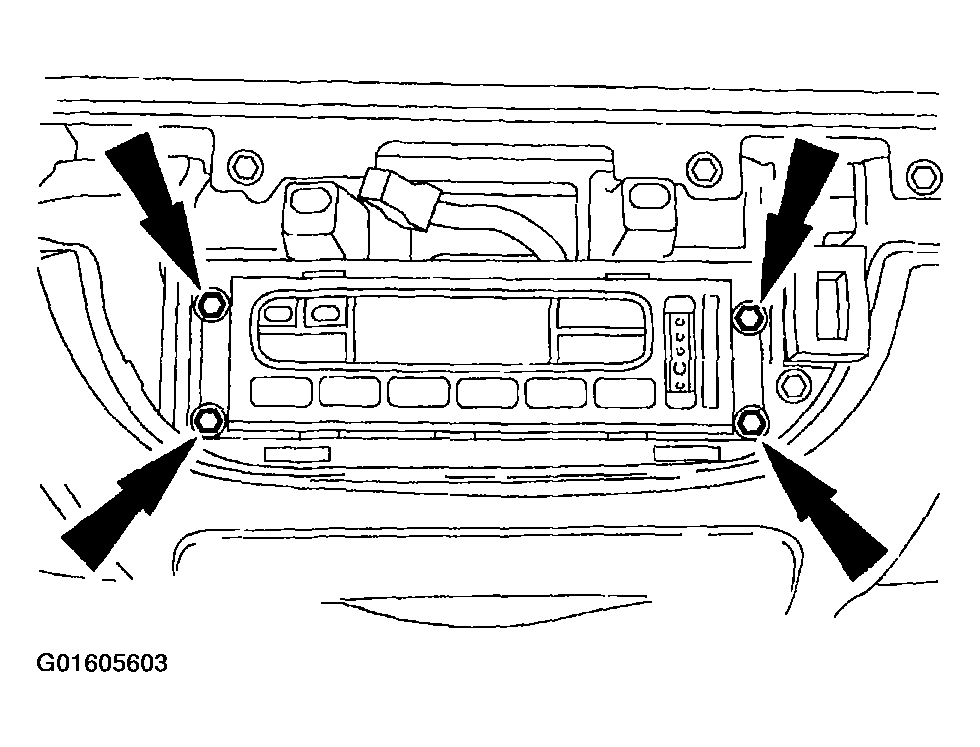

    Fig 3: Removing Screws And Pulling Electronic Automatic Temperature Control
    G01605603Courtesy of FORD MOTOR CO.
  4. Remove the climate control assembly.
    • Remove the nuts and the vacuum harness.
    • Disconnect the wire harness connectors and remove the EATC module.

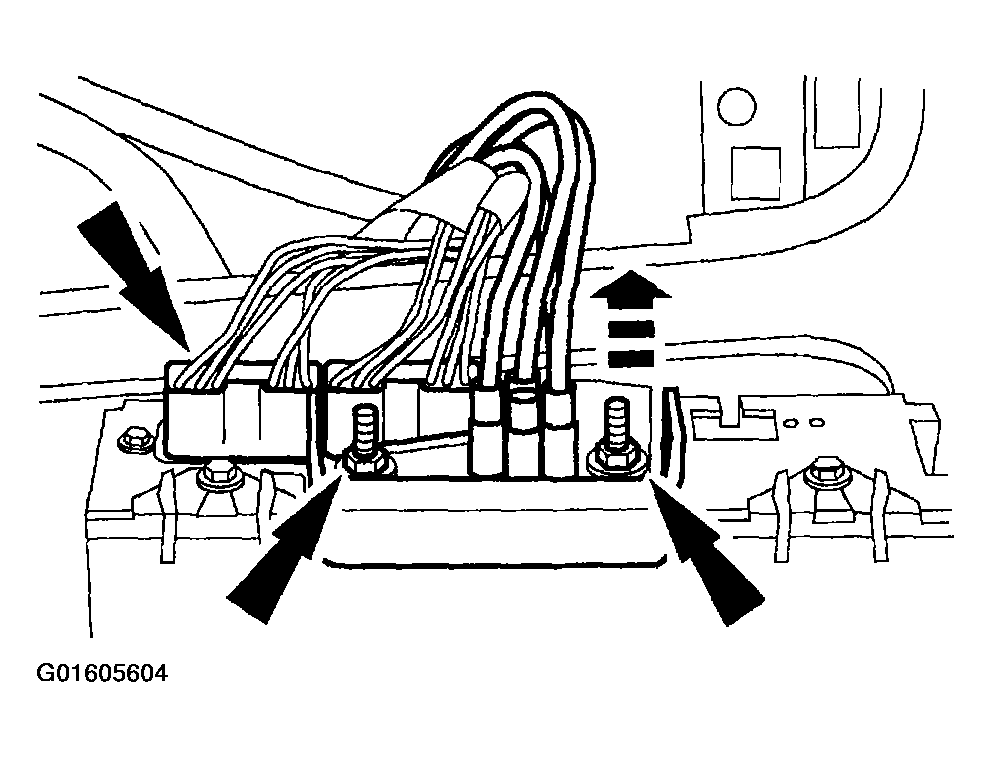

    Fig 4: Removing Climate Control Assembly
    G01605604Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
