Pinpoint Test E: No Communication With The Electronic Automatic Temperature Control (EATC) Module

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

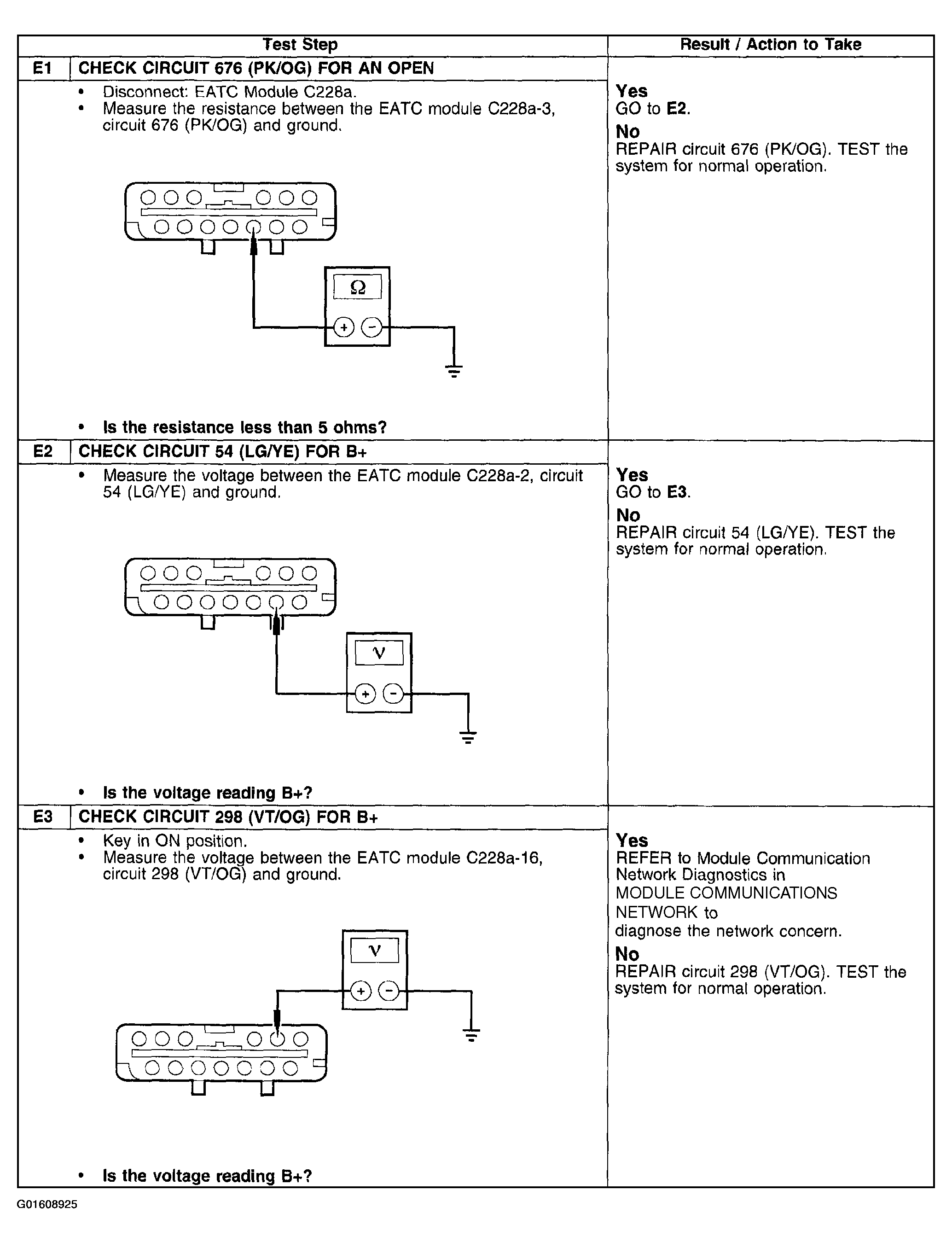

Fig 1: Pinpoint Test E: No Communication With The Electronic Automatic Temperature Control (EATC) Module
G01608925Courtesy of FORD MOTOR CO.
