Connecting Rod - Piston Pin Side Clearance

  1. Measure the clearance between the connecting rod and the piston. Verify the measurement is within specification.
    • Refer to the appropriate ENGINE article for the procedure.
    • If out of specification, install new components as necessary. Refer to the appropriate ENGINE article for the procedure.

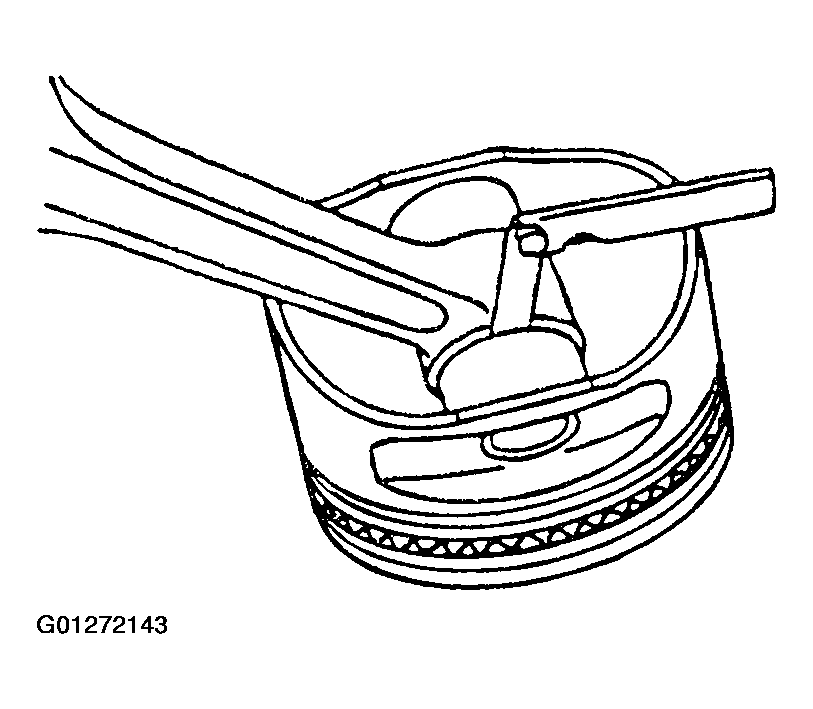

    Fig 1: Measuring Clearance Between Connecting Rod And Piston
    G01272143Courtesy of FORD MOTOR CO.
