Pinpoint Test P: DTC C1440 - Pressure Transducer Signal Fault: Testing

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

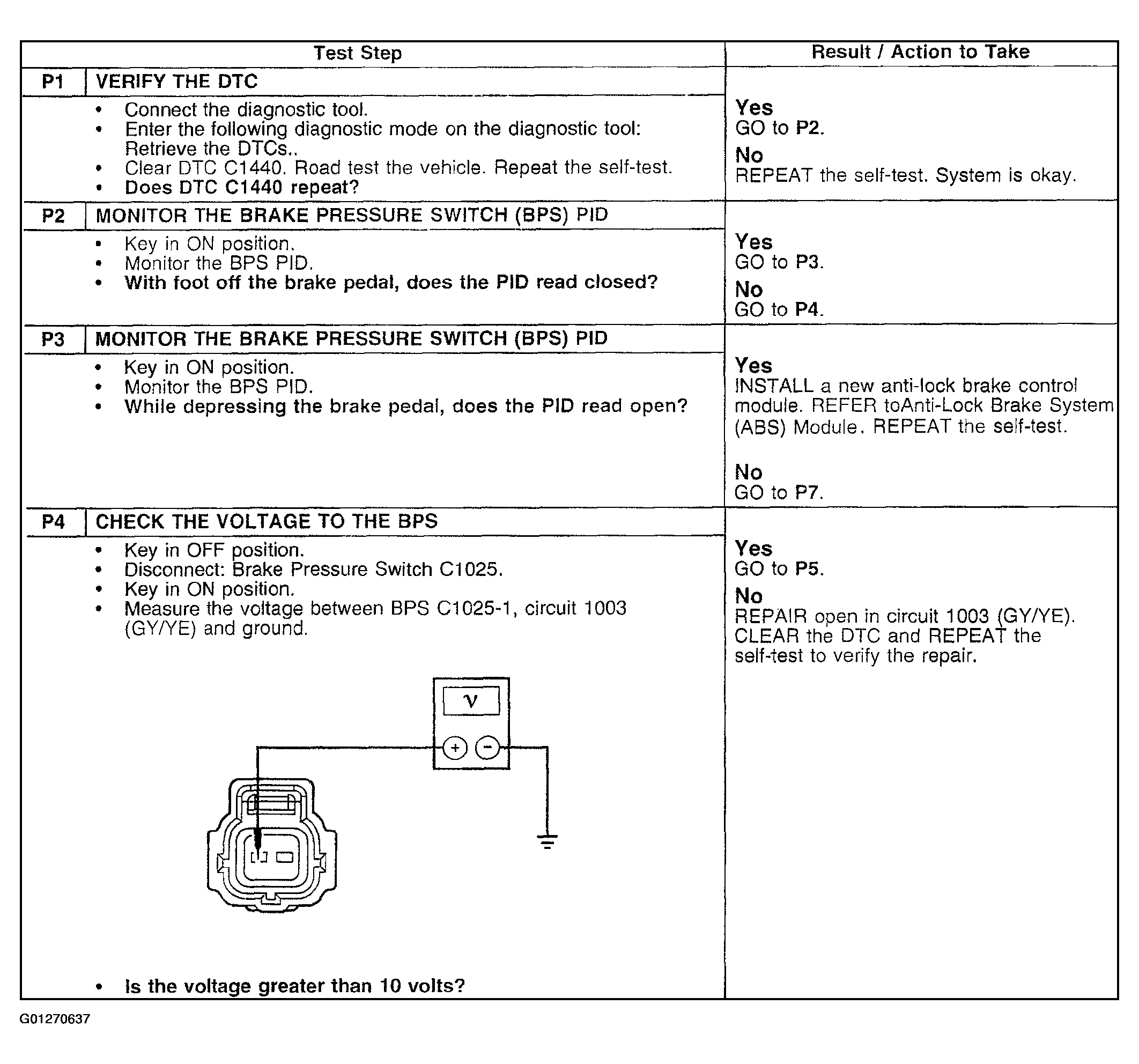

Fig 1: Pinpoint Test P: DTC C1440 - Pressure Transducer Signal Fault (P1 - P4)

Courtesy of FORD MOTOR CO.

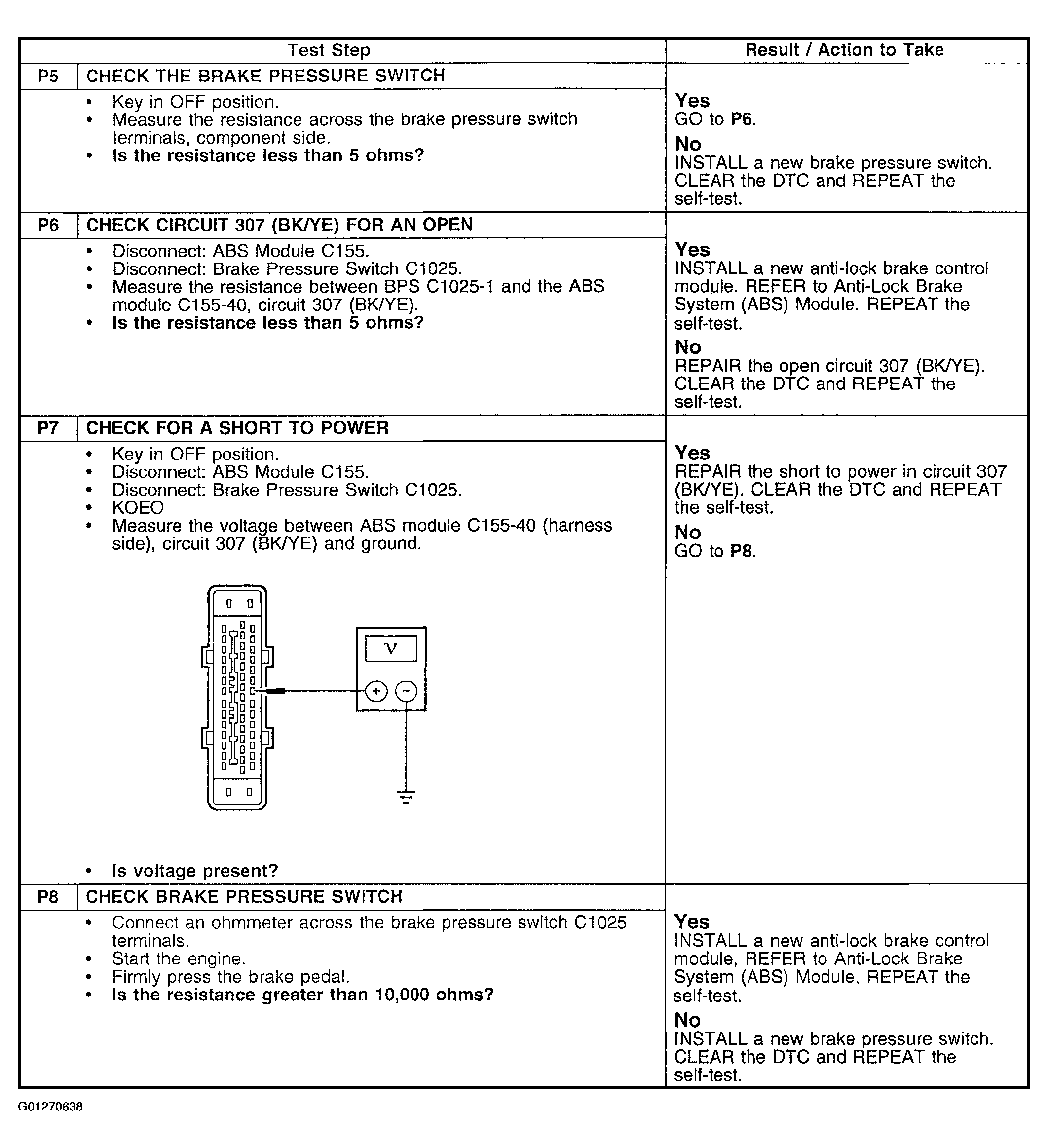

Fig 2: Pinpoint Test P: DTC C1440 - Pressure Transducer Signal Fault (P5 - P8)

Courtesy of FORD MOTOR CO.
