Pinpoint Test M: DTC C1960 - Driver Brake Apply Circuit Fault: Testing

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

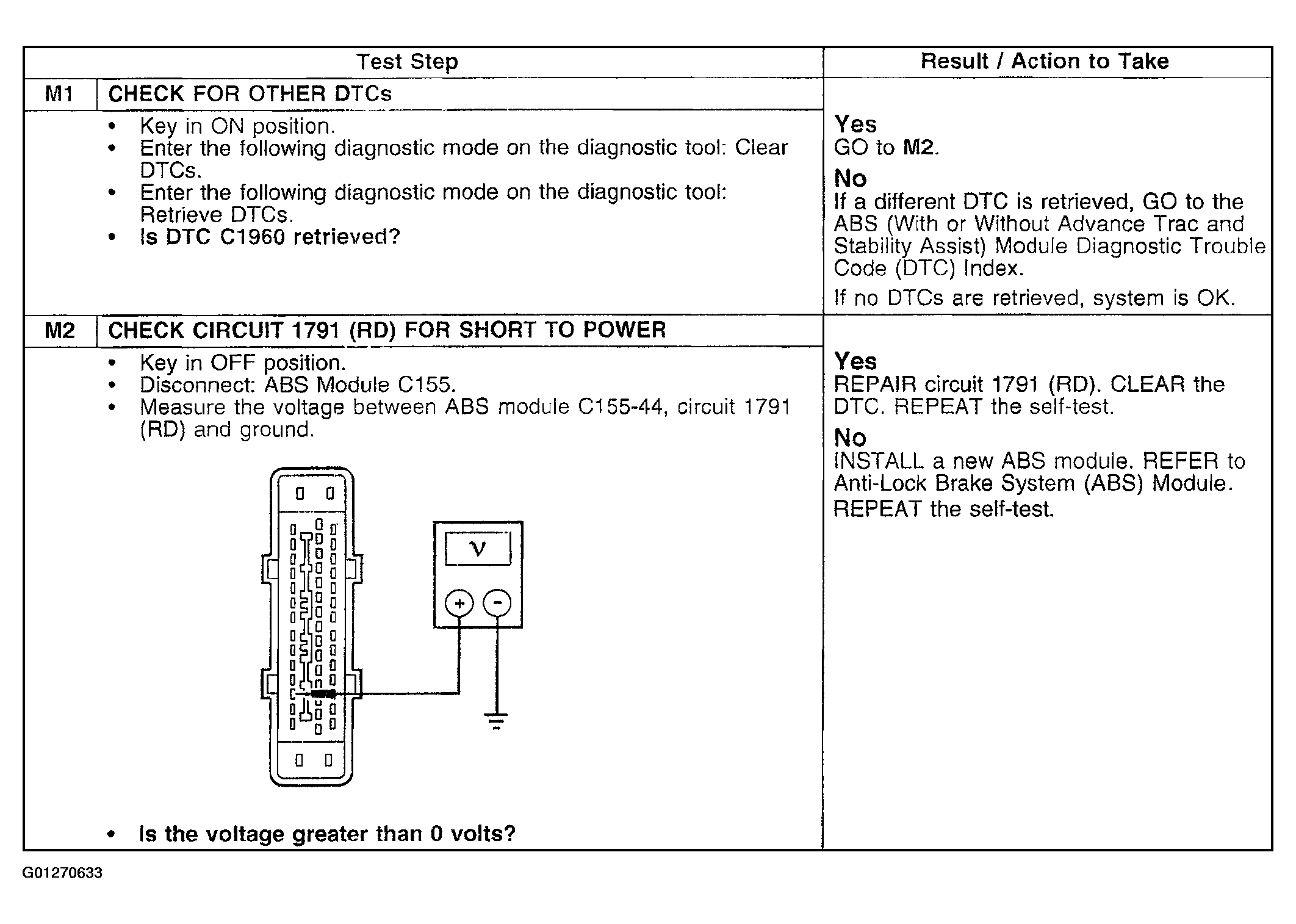

Fig 1: Pinpoint Test M: DTC C1960 - Driver Brake Apply Circuit Fault (M1 - M2)
G01270633Courtesy of FORD MOTOR CO.
