Active Brake Booster C149

Fig 1: Identifying Active Brake Booster C149 Connector Pin(s)
G01270577Courtesy of FORD MOTOR CO.

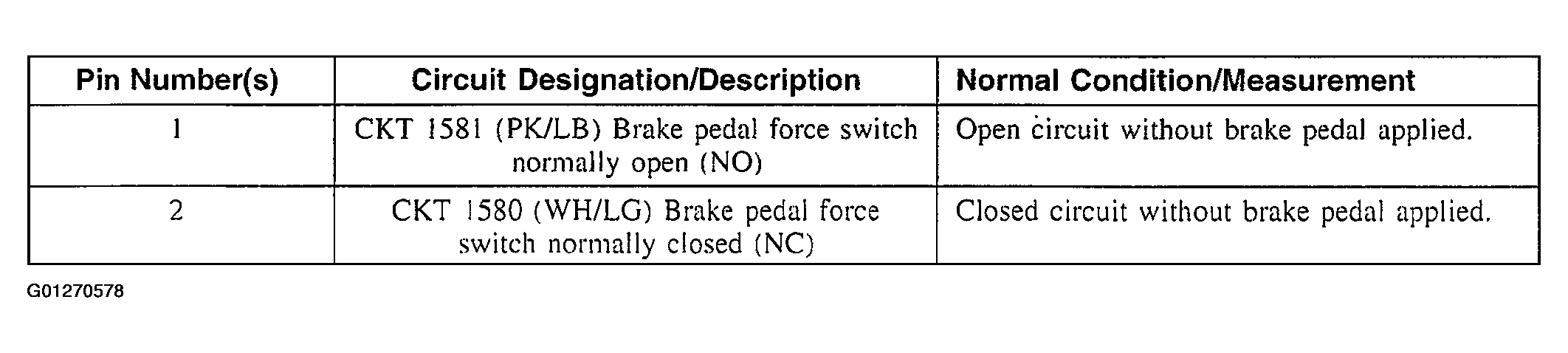

Fig 2: Identifying Active Brake Booster C149 Connector Pin(s) Reference Table (1 Of 2)
G01270578Courtesy of FORD MOTOR CO.

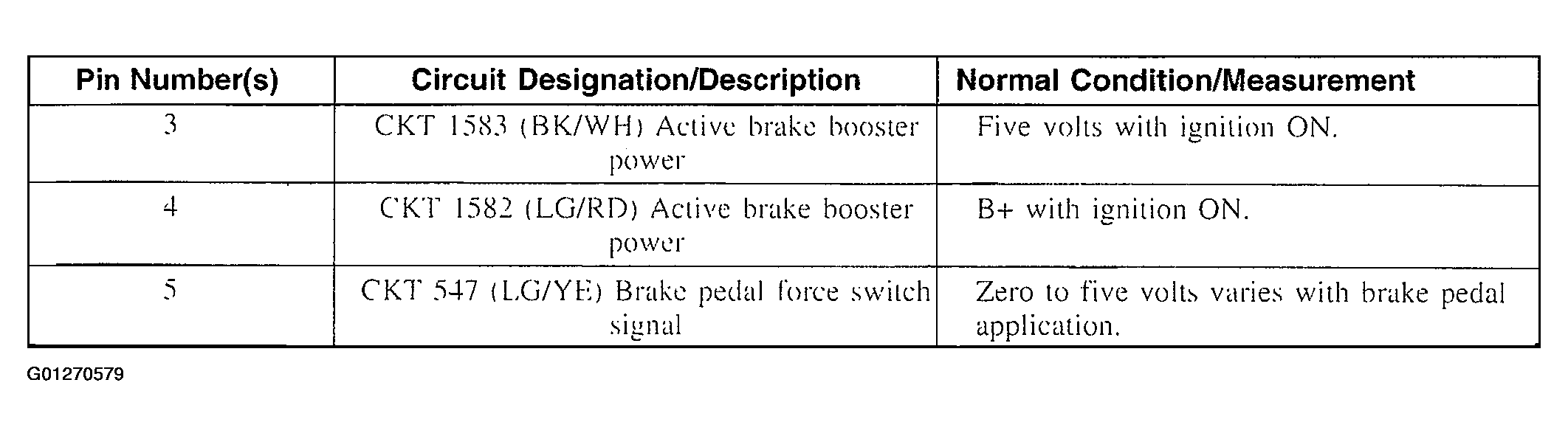

Fig 3: Identifying Active Brake Booster C149 Connector Pin(s) Reference Table (2 Of 2)
G01270579Courtesy of FORD MOTOR CO.
