ABS with Advance Trac Calibration List

NOTE: The need to recalibrate the ABS module is indicated by the Advance Trac active/fail lamp flashing. The lamp will flash after the DTCs on the calibration list are cleared.

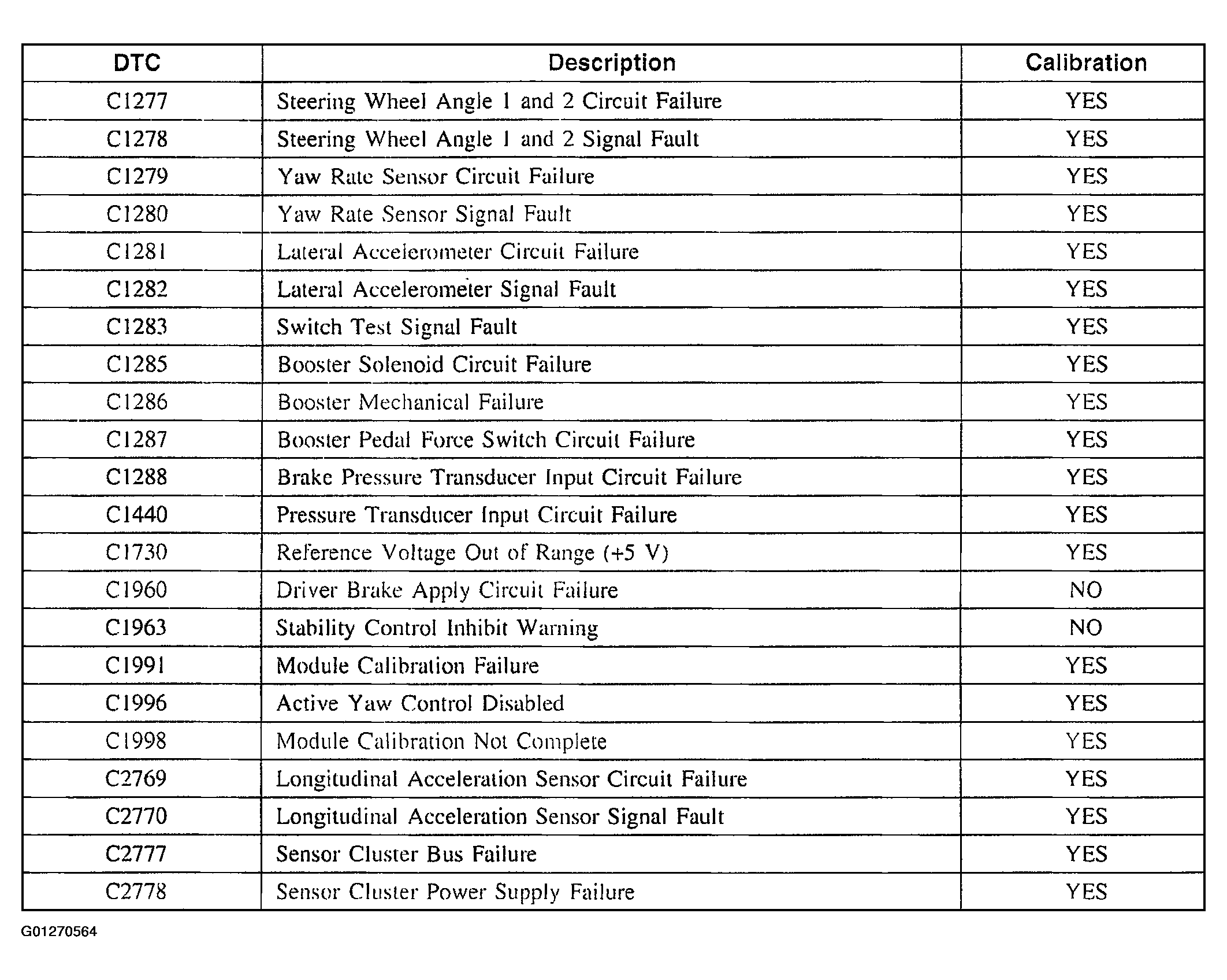

Fig 1: Identifying ABS With Advance Trac Calibration List
G01270564Courtesy of FORD MOTOR CO.
