Removal and Installation

  1. Remove the air bag. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the components in the order indicated in the following illustration and table.

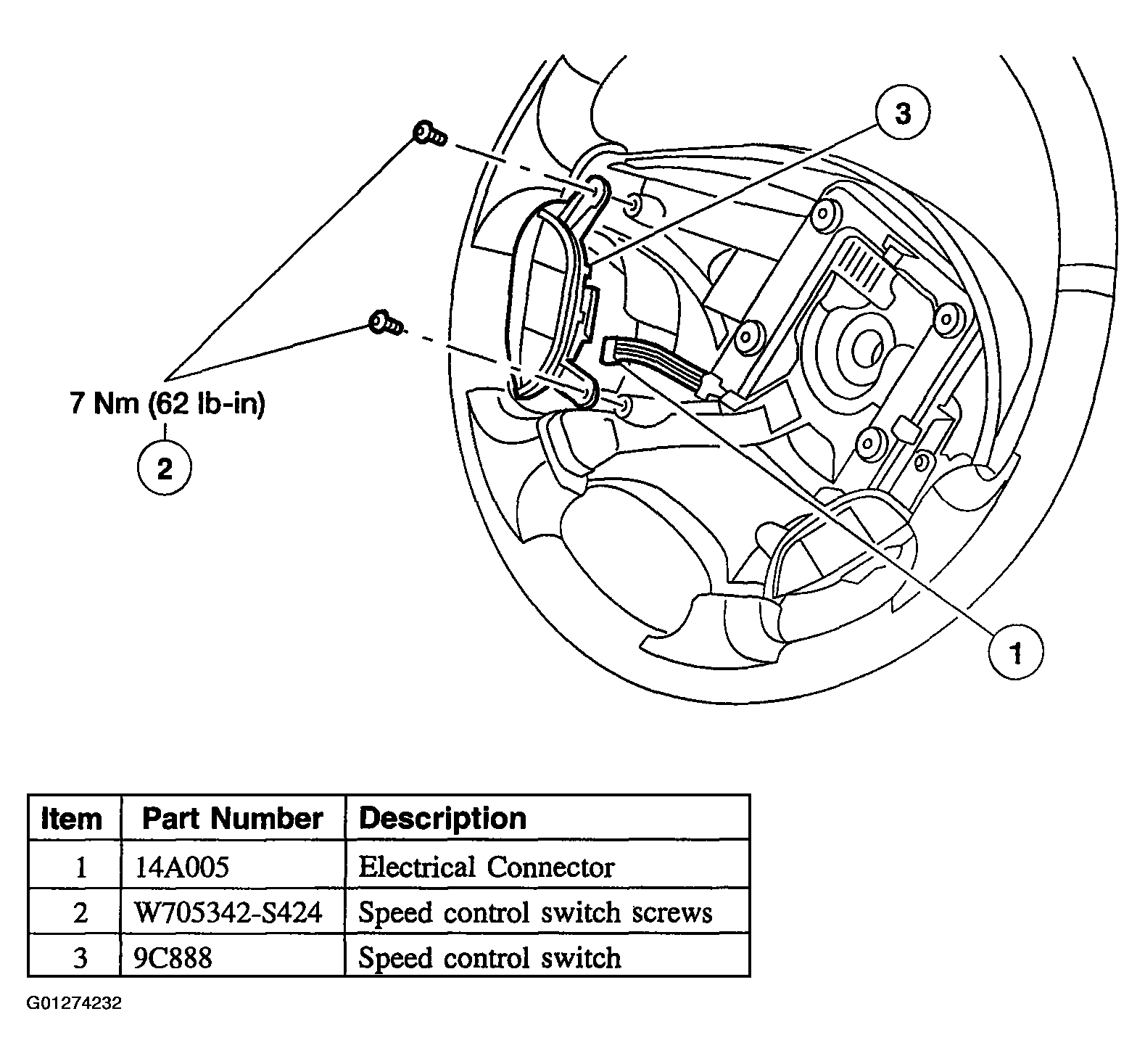

    Fig 1: Removal Sequence Of Speed Control Switch - With Remote Audio/Climate Controls
    G01274232Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
