Explorer 4.0 K, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Diagnosis And Testing
>>
Speed Control
>>
Connector Circuit Reference
>>
PCM C175b
PCM C175b
Fig 1: Identifying PCM C175b And Terminal View
Courtesy of FORD MOTOR CO.

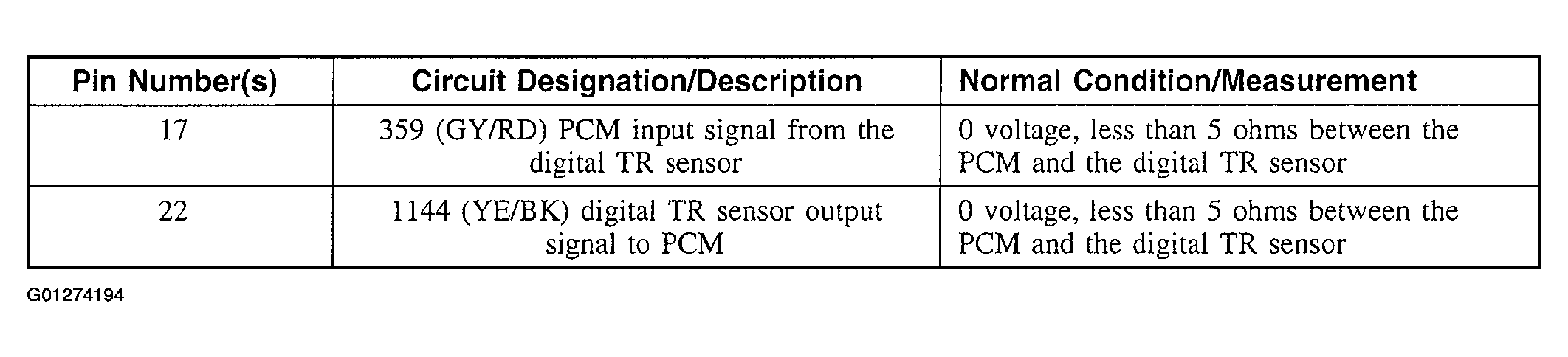

Fig 2: Identifying PCM C175b Circuit Reference Table
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
