PCM C175a

Fig 1: Identifying PCM C175a And Terminal View
G01274190Courtesy of FORD MOTOR CO.

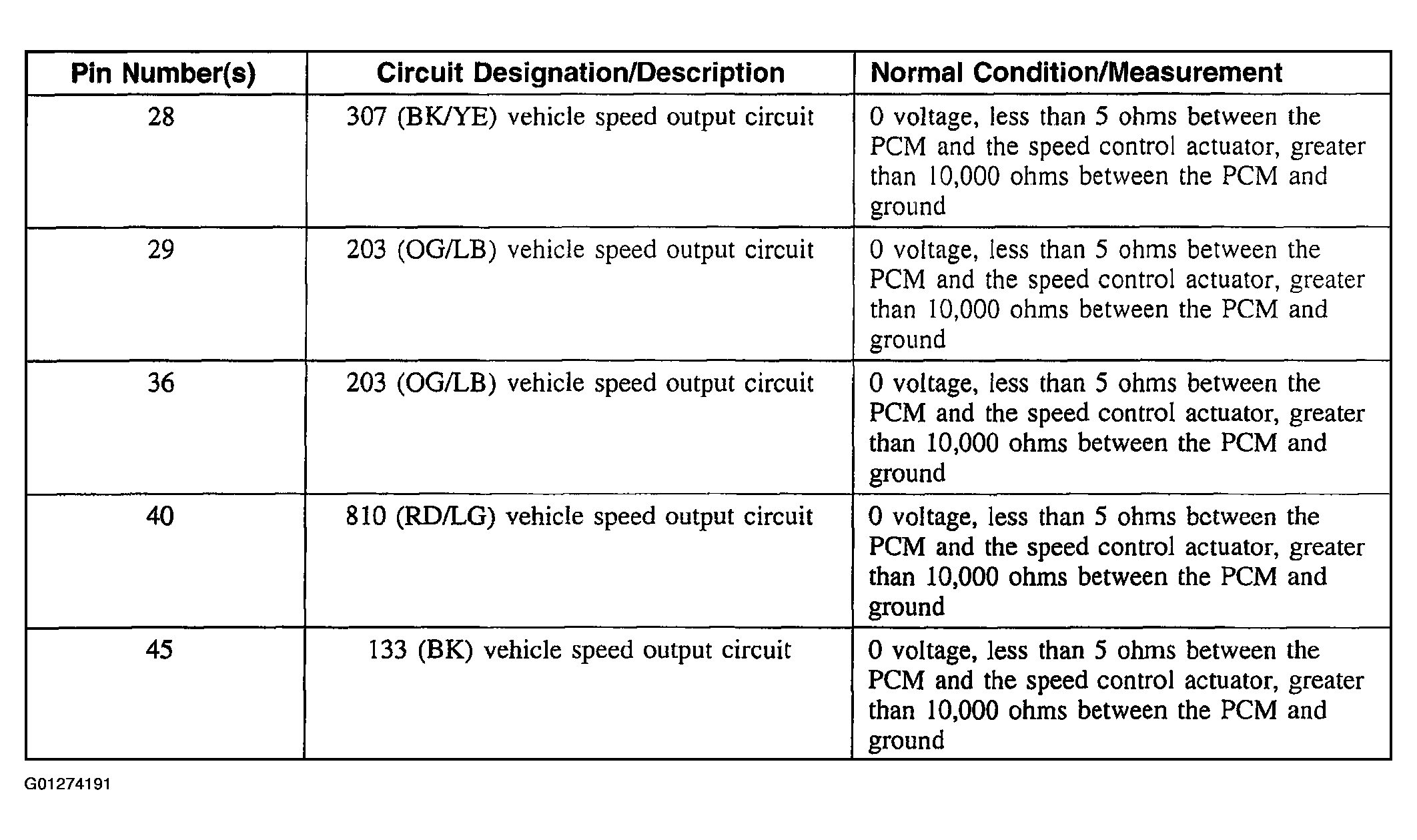

Fig 2: Identifying PCM C175a And Terminal Reference Table (1 Of 2)
G01274191Courtesy of FORD MOTOR CO.

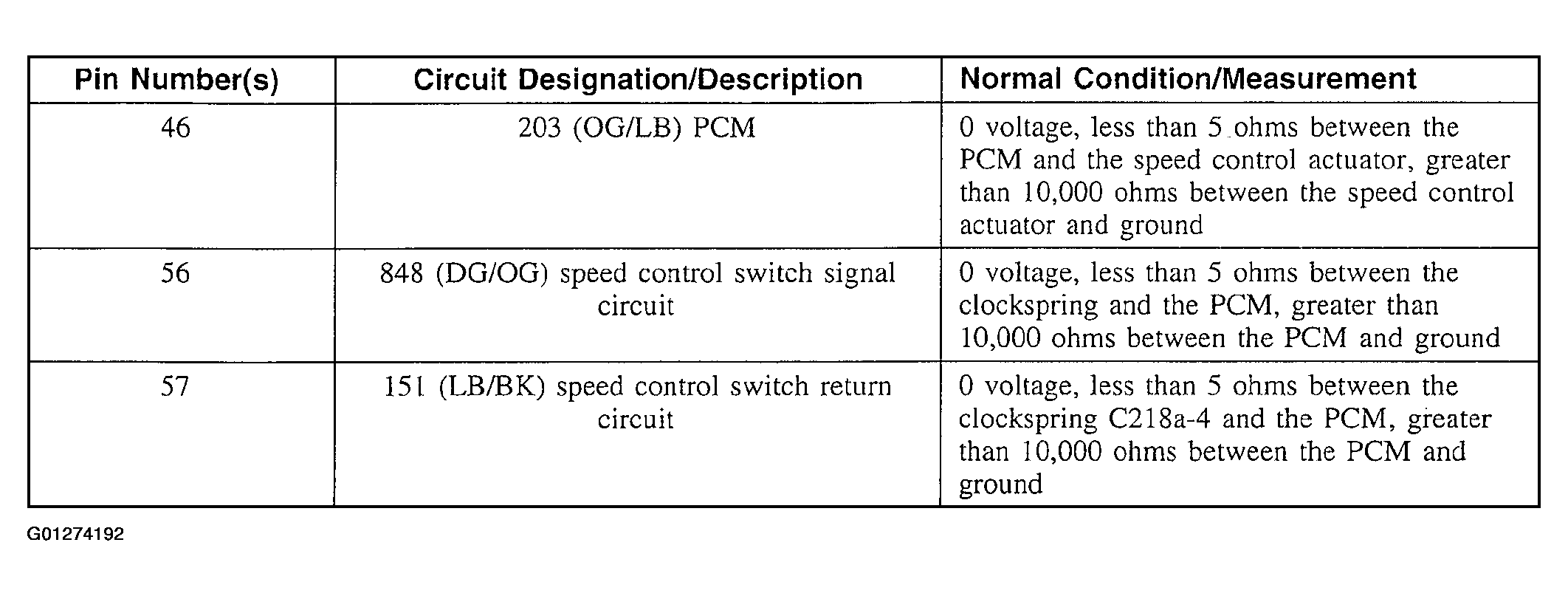

Fig 3: Identifying PCM C175a And Terminal Reference Table (2 Of 2)
G01274192Courtesy of FORD MOTOR CO.
