Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the pin-type retainers and lower the instrument panel lower insulator.
    Fig 1: Removing Pin-Type Retainers And Lowering Instrument Panel Lower Insulator
    G01606201Courtesy of FORD MOTOR CO.
  3. Remove the instrument panel lower insulator.
    1. Disconnect the power point electrical connector.
    2. Remove the footwell lamp.
    Fig 2: Removing Instrument Panel Lower Insulator
    G01606202Courtesy of FORD MOTOR CO.
  4. Remove the air suspension module.
    1. Disconnect the electrical connectors.
    2. Release the spring clips to remove the module from the bracket.

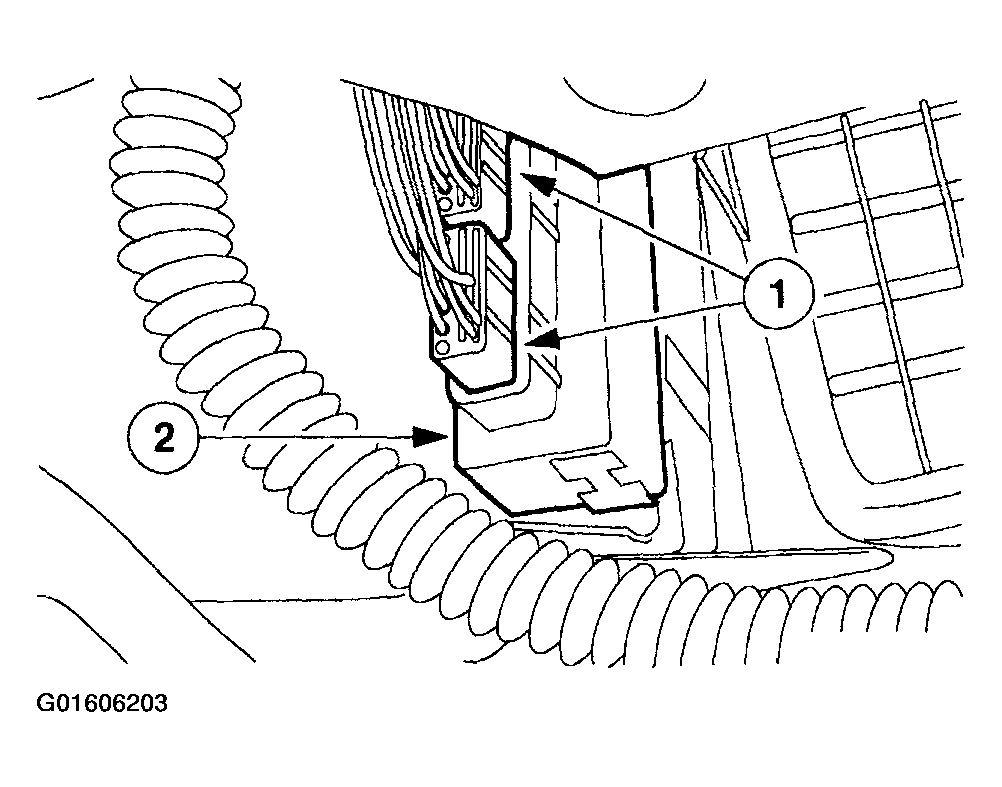

    Fig 3: Removing Air Suspension Module
    G01606203Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
    • Check for correct operation.
