Pinpoint Test K: DTC C1288/C1440 - Brake Pressure Transducer Input Circuit Failure: Testing

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

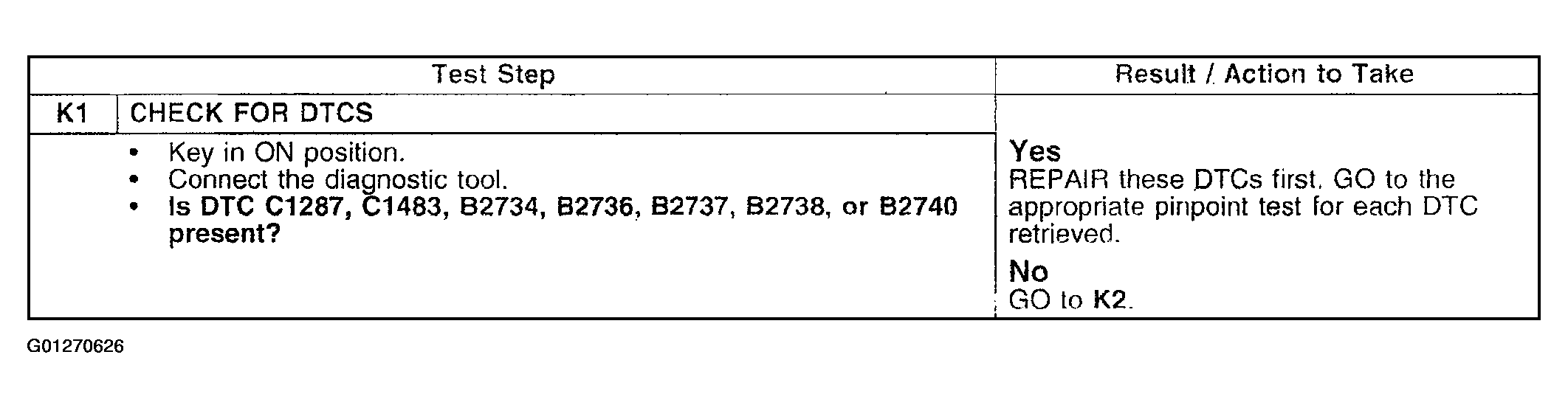

Fig 1: Pinpoint Test K: DTC C1288/C1440 - Brake Pressure Transducer Input Circuit Failure (K1)

Courtesy of FORD MOTOR CO.

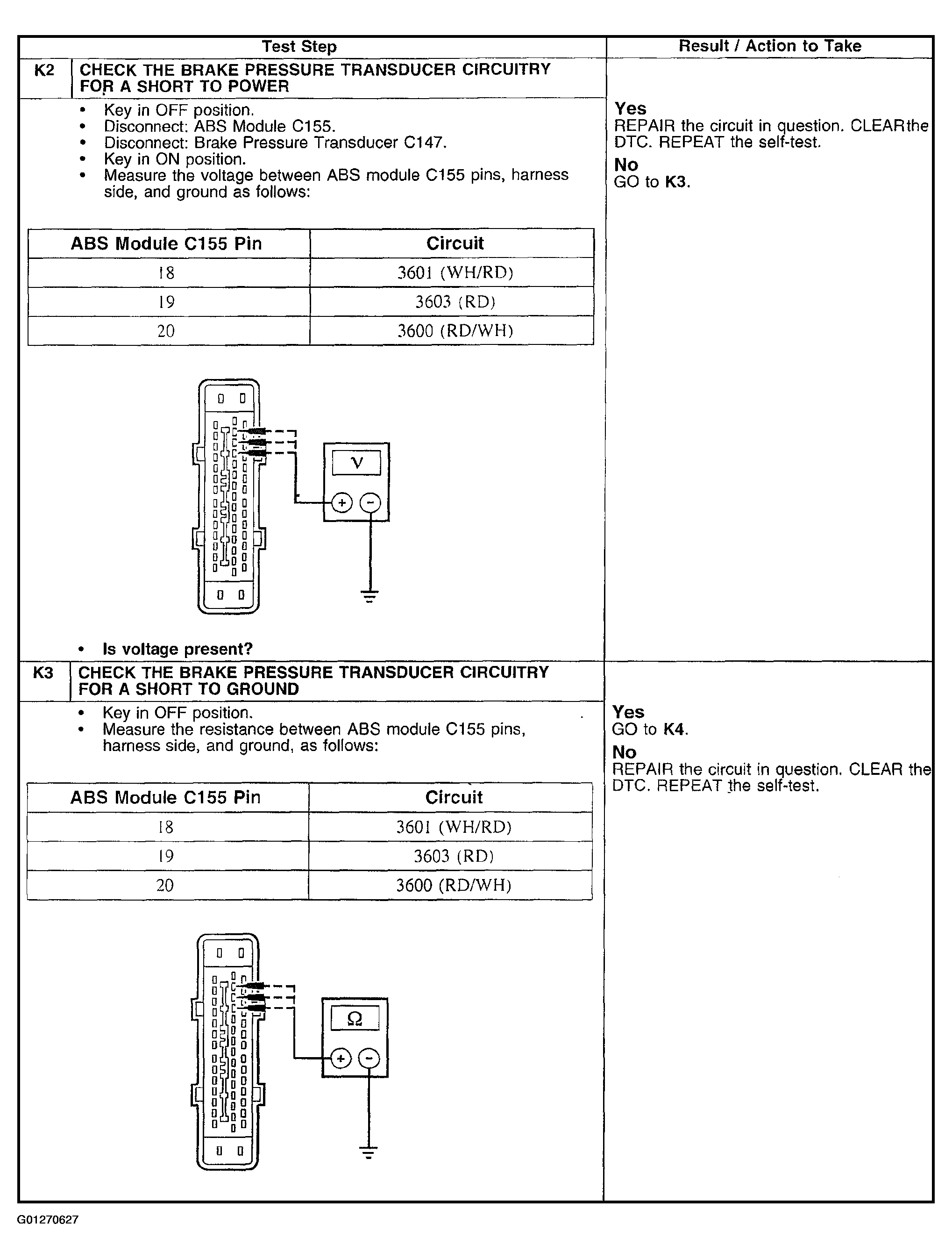

Fig 2: Pinpoint Test K: DTC C1288/C1440 - Brake Pressure Transducer Input Circuit Failure (K2 - K3)

Courtesy of FORD MOTOR CO.

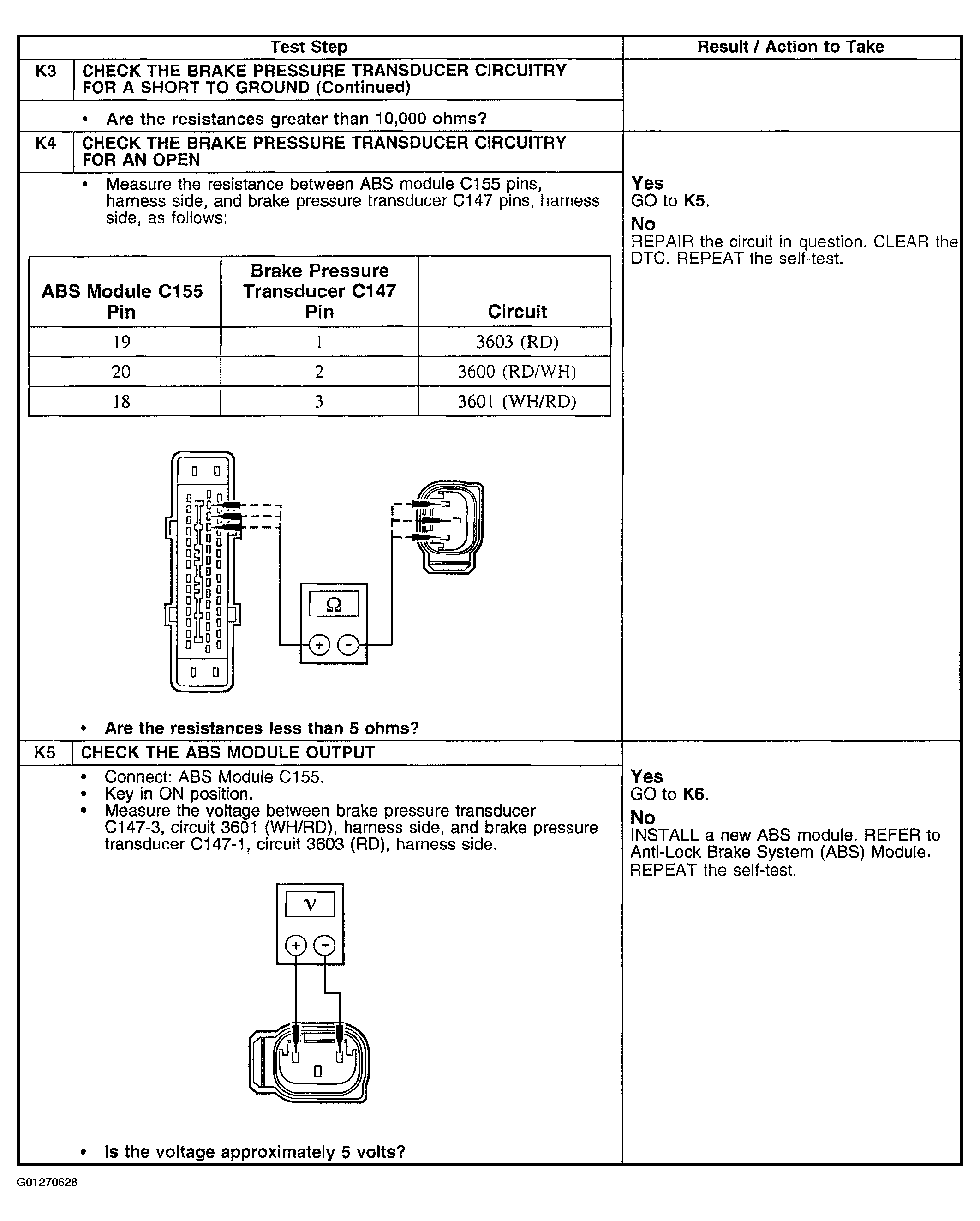

Fig 3: Pinpoint Test K: DTC C1288/C1440 - Brake Pressure Transducer Input Circuit Failure (K3 - K5)

Courtesy of FORD MOTOR CO.

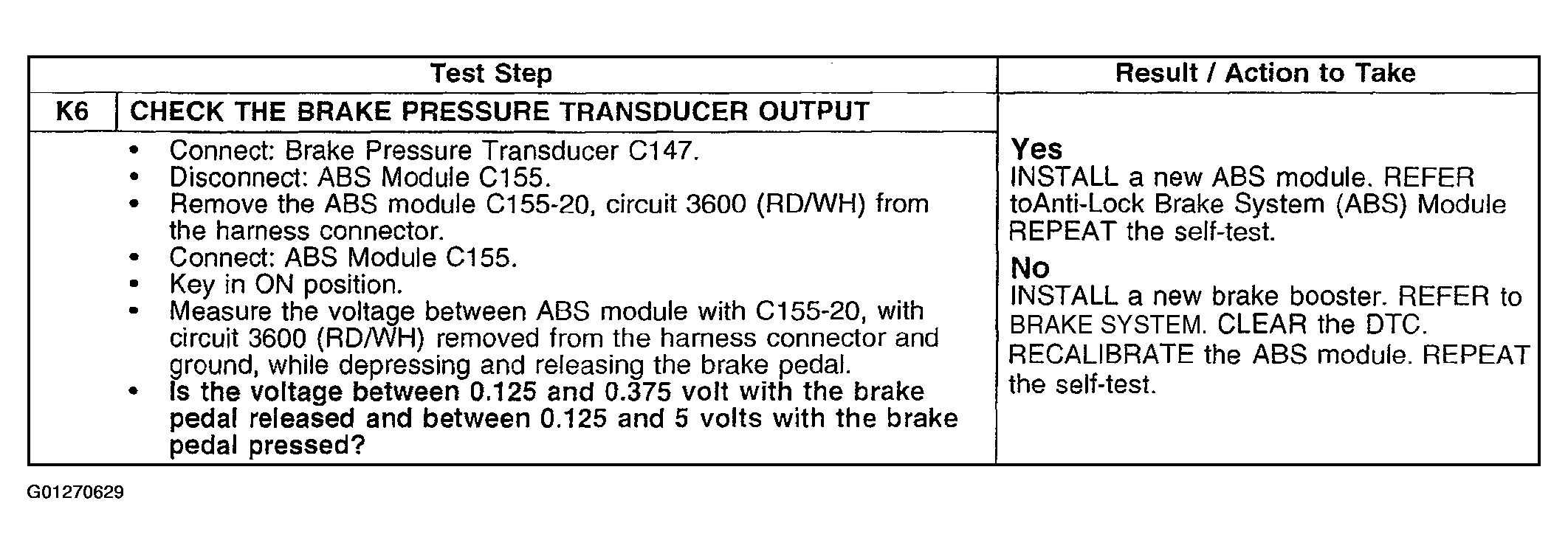

Fig 4: Pinpoint Test K: DTC C1288/C1440 - Brake Pressure Transducer Input Circuit Failure (K6)

Courtesy of FORD MOTOR CO.
